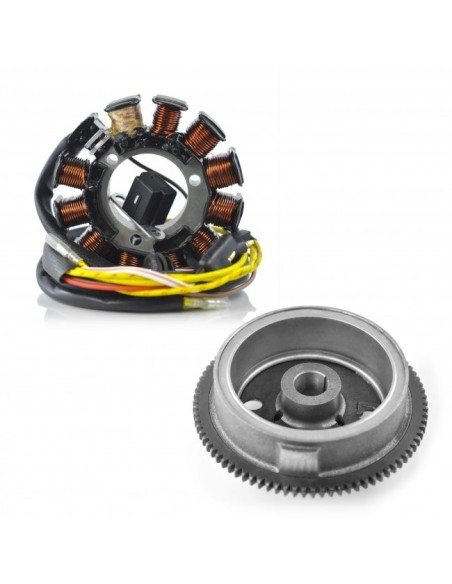

Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984

Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984

CARMS900-102182
5-7 Days
€443.00
Tax included
  • Resistant to 200 degrees Celsius
  • Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984


  • Kit Stator Flywheel Rotor Polaris Ranger 500 2003 OEM 3086984
  • 2003

        Polaris
            Magnum 500
                ATV & SxS 2003 Polaris Magnum 500 4x4
            Ranger 500
                ATV & SxS 2003 Polaris Ranger 500 Series 10 6x6

    2002

        Polaris
            Big Boss 500
                ATV & SxS 2002 Polaris Big Boss 500 6x6
                ATV & SxS 2002 Polaris Big Boss 500 6x6 International
            Magnum 500
                ATV & SxS 2002 Polaris Magnum 500 4x4
                ATV & SxS 2002 Polaris Magnum 500 RMK 4x4
                ATV & SxS 2002 Polaris Magnum 500 VL HDS 2x4
            Scrambler 500
                ATV & SxS 2002 Polaris Scrambler 500 2x4
                ATV & SxS 2002 Polaris Scrambler 500 4x4
            Sportsman 500
                ATV & SxS 2002 Polaris Sportsman 500
                ATV & SxS 2002 Polaris Sportsman 500 4x4
                ATV & SxS 2002 Polaris Sportsman 500 6x6
                ATV & SxS 2002 Polaris Sportsman 500 RSE
                ATV & SxS 2002 Polaris Sportsman 500 X
            Sportsman 500 HO
                ATV & SxS 2002 Polaris Sportsman 500 HO
            Worker 500
                ATV & SxS 2002 Polaris Worker 500

    2001

        Polaris
            Magnum 500
                ATV & SxS 2001 Polaris Magnum 500 4x4
                ATV & SxS 2001 Polaris Magnum 500 HDS 4x4
            Scrambler 500
                ATV & SxS 2001 Polaris Scrambler 500 2x4
                ATV & SxS 2001 Polaris Scrambler 500 4x4
            Sportsman 500
                ATV & SxS 2001 Polaris Sportsman 500
                ATV & SxS 2001 Polaris Sportsman 500 4x4
            Sportsman 500 HO
                ATV & SxS 2001 Polaris Sportsman 500 HO
                ATV & SxS 2001 Polaris Sportsman 500 HO 4x4
                ATV & SxS 2001 Polaris Sportsman 500 HO RSE
            Worker 500
                ATV & SxS 2001 Polaris Worker 500

    2000

        Polaris
            Big Boss 500
                ATV & SxS 2000 Polaris Big Boss 500 6x6
                ATV & SxS 2000 Polaris Big Boss 500 6x6 International
            Magnum 500
                ATV & SxS 2000 Polaris Magnum 500 4x4
                ATV & SxS 2000 Polaris Magnum 500 EB
                ATV & SxS 2000 Polaris Magnum 500 HDS 4x4
            Scrambler 500
                ATV & SxS 2000 Polaris Scrambler 500 4x4
            Sportsman 500
                ATV & SxS 2000 Polaris Sportsman 500
                ATV & SxS 2000 Polaris Sportsman 500 6x6
                ATV & SxS 2000 Polaris Sportsman 500 RS


    OEM
    Stator:
    3086984

    Flywheel:
    3085558
    3087166
    3086819
    3086983

  • Dimensions :
    Interior diameter : 48 mm
    Exterior diameter : 115 mm
    Thickness : 20 mm
    Length of wires stator to grommet : 135 mm
    Length of wires grommet to plug : 1200 mm
    Length of pickup coil's wire to grommet : 120 mm

    Other specifications :
    Number of wires : 7
    Number of plugs : 6
    Number of pins : 8

    Wire to wire resistance :
    Alternator : = 0.4 ohms +/-20%
    Pickup : = 130 ohms +/-20%
    Source : = 20 ohms +/-20%

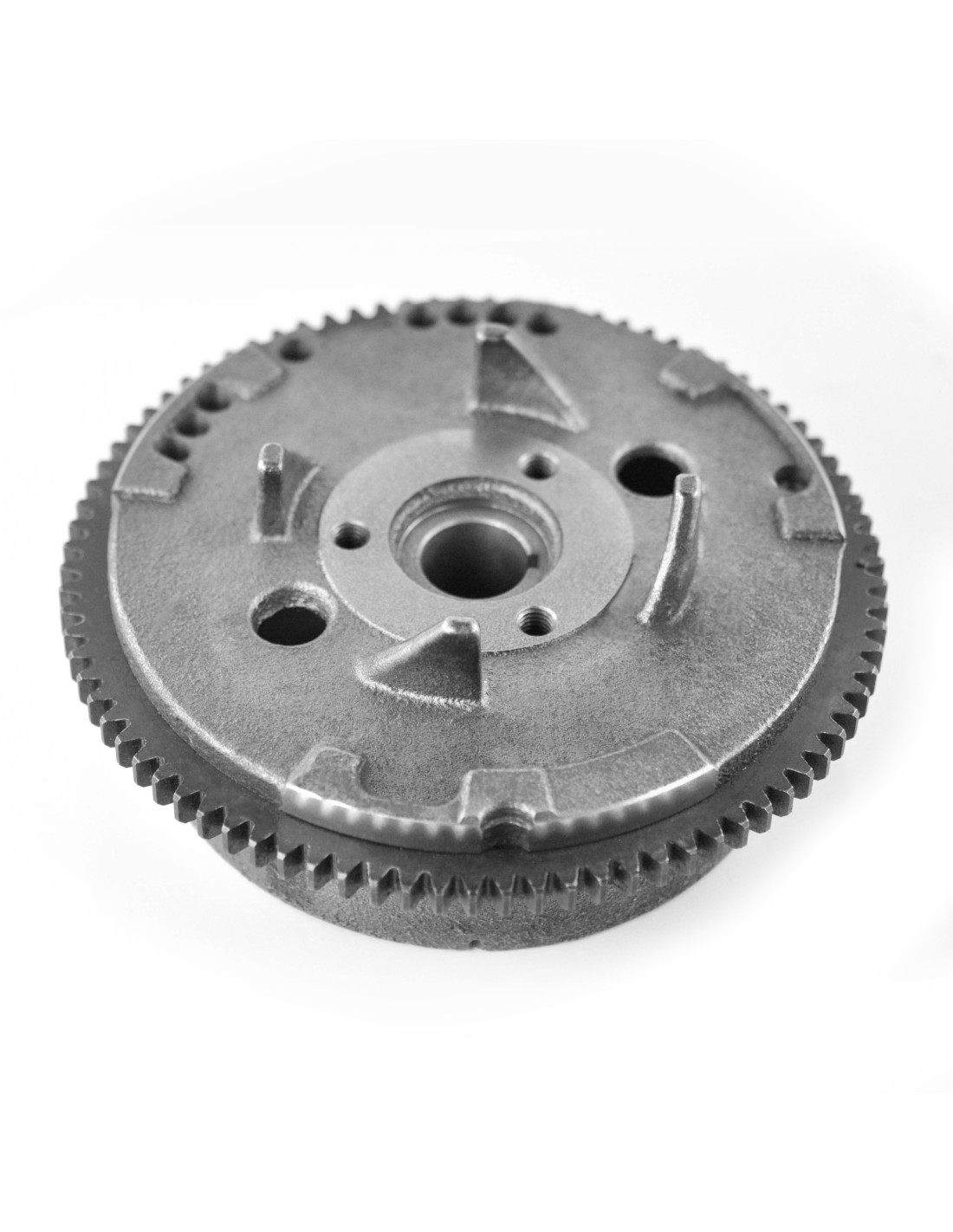

    Flywheel:

    Dimensions:
    Exterior Diameter: 141 mm
    Interior Diameter: 117 mm
    Interior Diameter Center Housing: 25 mm
    Exterior Diameter Center Housing: 23 mm





  • Pick up pulsar coil included

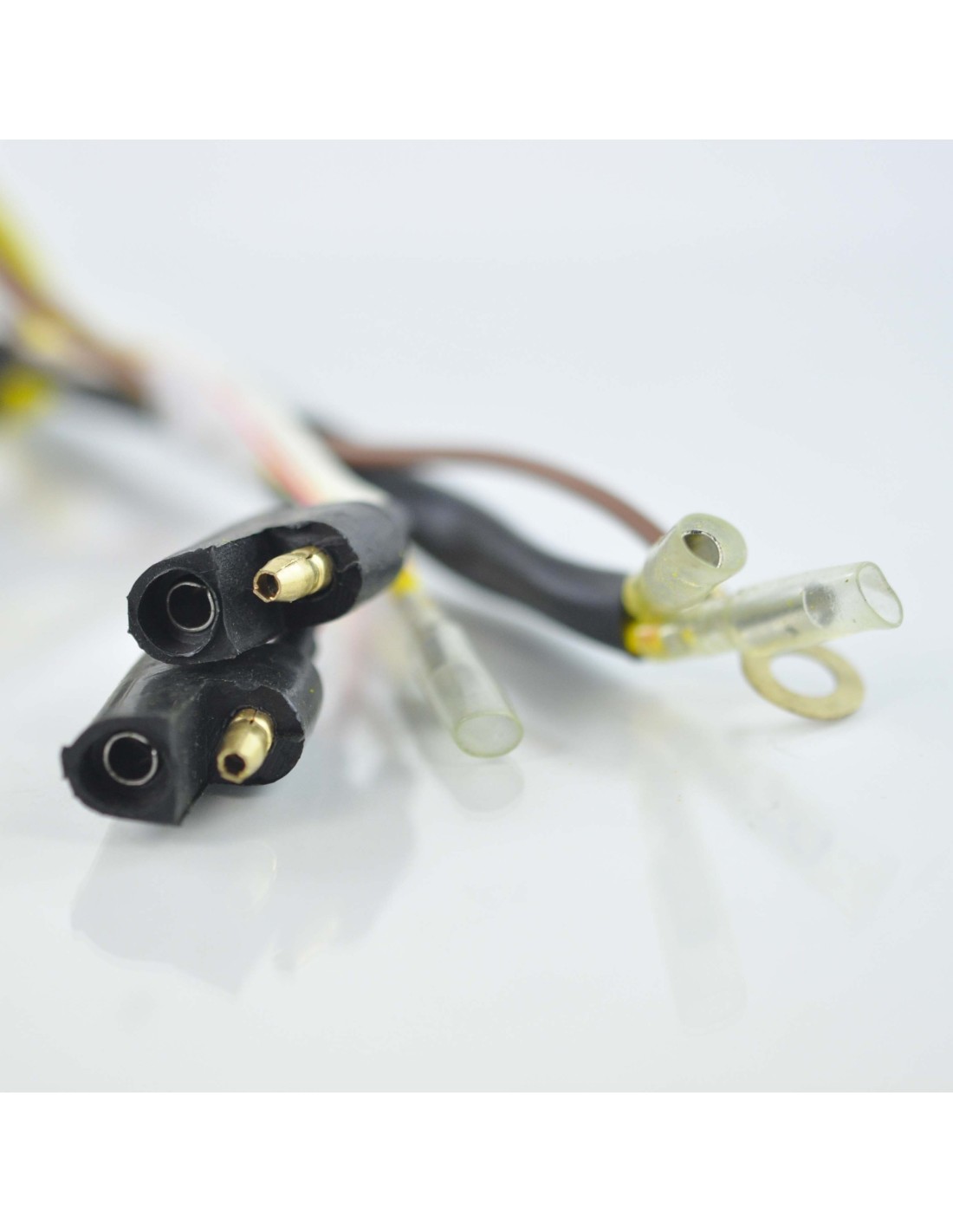

    Connector included

  • Resistant to 200 degrees Celsius
