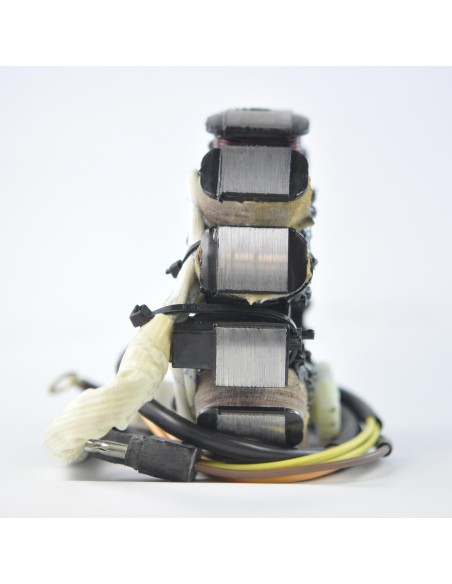

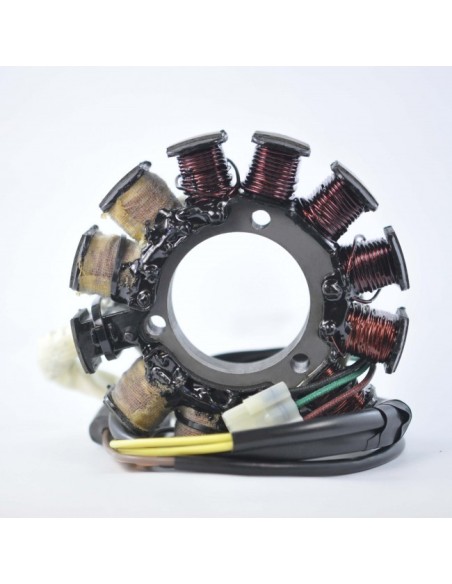

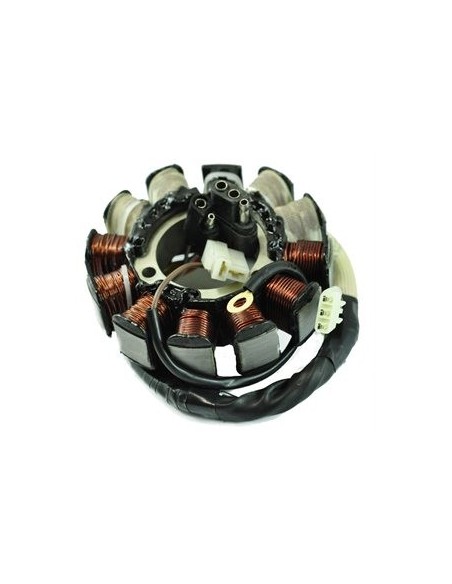

Stator Arctic Cat Mountain Cat 500 600 EFI Pantera 600EFI ZL500 EFI ZL600 EFI ZR500 EFI ZR600 EFI OEM 3005-699

Stator

2001 Arctic Cat Mountain Cat 500 EFI L/C International

2001 Arctic Cat Mountain Cat 600 EFI L/C
2002 Arctic Cat Mountain Cat 600 EFI L/C
2003 Arctic Cat Mountain Cat 600 EFI L/C
2004 Arctic Cat Mountain Cat 600 EFI L/C

2001 Arctic Cat Mountain Cat 600 EFI L/C LE
2002 Arctic Cat Mountain Cat 600 EFI L/C LE

2002 Arctic Cat Pantera 600 EFI L/C ESR
2003 Arctic Cat Pantera 600 EFI L/C ESR
2004 Arctic Cat Pantera 600 EFI L/C ESR
2005 Arctic Cat Pantera 600 EFI L/C ESR

2000 Arctic Cat Powder 600 Special EFI L/C LE

2001 Arctic Cat ZL 500 EFI L/C ESR

2000 Arctic Cat ZL 600 EFI L/C
2001 Arctic Cat ZL 600 EFI L/C
2002 Arctic Cat ZL 600 EFI L/C
2003 Arctic Cat ZL 600 EFI L/C

2001 Arctic Cat ZL 600 EFI L/C ESR
2002 Arctic Cat ZL 600 EFI L/C ESR
2003 Arctic Cat ZL 600 EFI L/C ESR
2002 Arctic Cat ZL 600 EFI L/C SS
2003 Arctic Cat ZL 600 EFI L/C SS

2001 Arctic Cat ZR 500 EFI L/C ESR
2001 Arctic Cat ZR 500 EFI L/C

2000 Arctic Cat ZR 600 EFI L/C LE
2001 Arctic Cat ZR 600 EFI L/C LE
2000 Arctic Cat ZR 600 EFI L/C
2001 Arctic Cat ZR 600 EFI L/C
2002 Arctic Cat ZR 600 EFI L/C

OEM
3005-699

Resistant to 200 degrees Celsius.

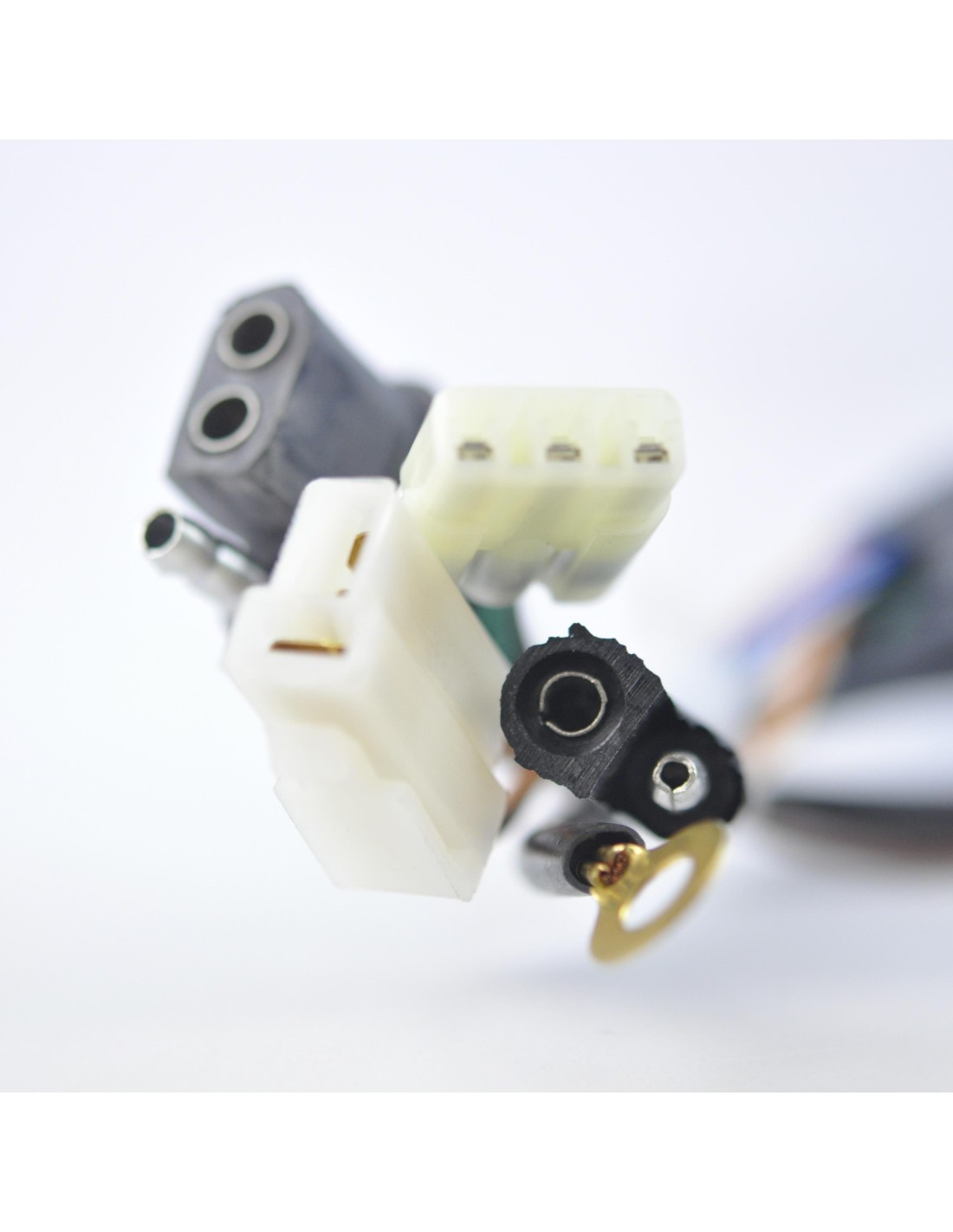

Connector included

Dimensions :
Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 21 mm

Other specifications :
Number of wires : 7
Number of pins : 10

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.2 ohms+/-20%
Fuel Pump : White/Blue to White/Blue = 17.2 ohms+/-20%
Hand Warmer Coils : Orange to Orange = 2 ohms+/-20%
Source Coil 1 : Green to Brown = 10 ohms+/-20%
Source Coil 2 : Green to Black = 10 ohms+/-20%
