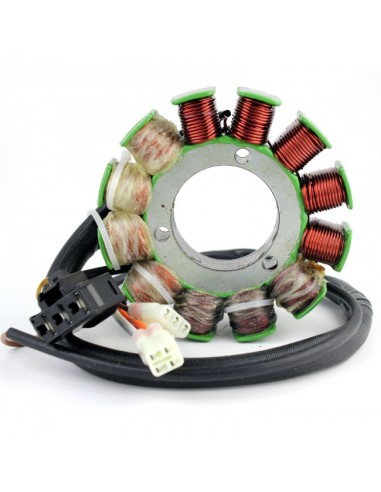

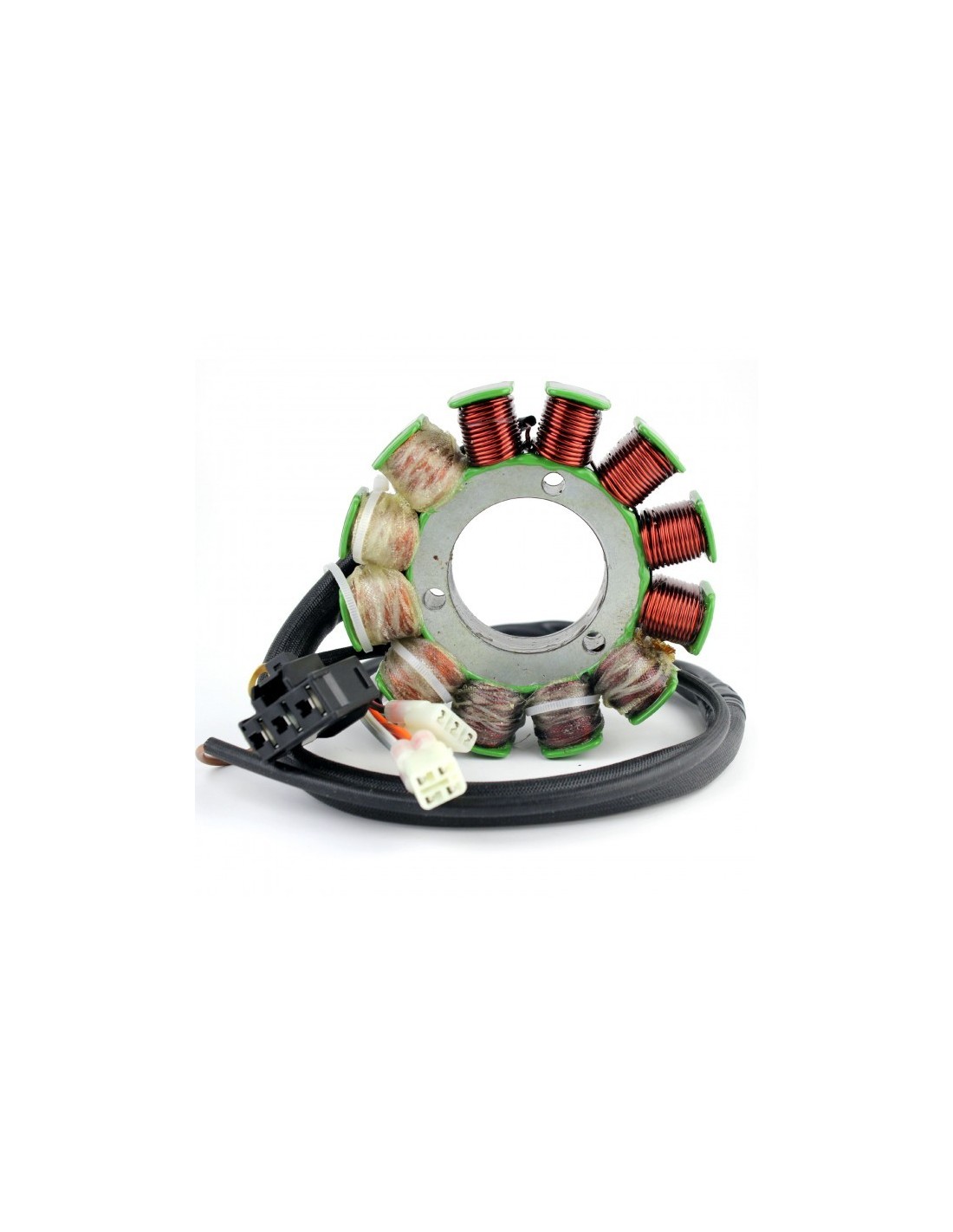

Stator Arctic Cat Sno Pro 500 T500 CrossFire 500 600 Firecat 500 600 Mountain Cat 600 OEM 3007-314 3007-623 3007-711 3007-545

Stator

Arctic Cat
CFR Crossfire 1000 EFI L/C
2010 Arctic Cat CFR Crossfire 1000 EFI L/C
2011 Arctic Cat CFR Crossfire 1000 EFI L/C
CRF CrossFire 1000 EFI L/C
2007 Arctic Cat CRF CrossFire 1000 EFI L/C
2008 Arctic Cat CRF CrossFire 1000 EFI L/C
2009 Arctic Cat CRF CrossFire 1000 EFI L/C
R
2009 Arctic Cat CRF CrossFire 1000 EFI L/C R
R LE
2009 Arctic Cat CRF CrossFire 1000 EFI L/C R LE
CRF CrossFire 1000 Sno Pro EFI L/C
2007 Arctic Cat CRF CrossFire 1000 Sno Pro EFI L/C
2008 Arctic Cat CRF CrossFire 1000 Sno Pro EFI L/C
2009 Arctic Cat CRF CrossFire 1000 Sno Pro EFI L/C
LE
2009 Arctic Cat CRF CrossFire 1000 Sno Pro EFI L/C LE
CRF CrossFire 500 EFI L/C
2007 Arctic Cat CRF CrossFire 500 EFI L/C
2008 Arctic Cat CRF CrossFire 500 EFI L/C
2009 Arctic Cat CRF CrossFire 500 EFI L/C
CRF CrossFire 600 EFI L/C
2007 Arctic Cat CRF CrossFire 600 EFI L/C
2008 Arctic Cat CRF CrossFire 600 EFI L/C
2009 Arctic Cat CRF CrossFire 600 EFI L/C
2010 Arctic Cat CRF CrossFire 600 EFI L/C
2011 Arctic Cat CRF CrossFire 600 EFI L/C
CRF CrossFire 600 Sno Pro EFI L/C
2008 Arctic Cat CRF CrossFire 600 Sno Pro EFI L/C
CRF CrossFire 800 EFI L/C
2007 Arctic Cat CRF CrossFire 800 EFI L/C
2008 Arctic Cat CRF CrossFire 800 EFI L/C
2009 Arctic Cat CRF CrossFire 800 EFI L/C
2010 Arctic Cat CRF CrossFire 800 EFI L/C
2011 Arctic Cat CRF CrossFire 800 EFI L/C
LE
2009 Arctic Cat CRF CrossFire 800 EFI L/C LE
2010 Arctic Cat CRF CrossFire 800 EFI L/C LE
R
2009 Arctic Cat CRF CrossFire 800 EFI L/C R
R LE
2009 Arctic Cat CRF CrossFire 800 EFI L/C R LE
CRF CrossFire 800 Sno Pro EFI L/C
2007 Arctic Cat CRF CrossFire 800 Sno Pro EFI L/C
2008 Arctic Cat CRF CrossFire 800 Sno Pro EFI L/C
2009 Arctic Cat CRF CrossFire 800 Sno Pro EFI L/C
LTD
2010 Arctic Cat CRF CrossFire 800 Sno Pro EFI L/C LTD
Ltd 1.5
2011 Arctic Cat CRF CrossFire 800 Sno Pro EFI L/C Ltd 1.5
Ltd 2.25
2011 Arctic Cat CRF CrossFire 800 Sno Pro EFI L/C Ltd 2.25
F 1000 EFI L/C
LXR
2007 Arctic Cat F 1000 EFI L/C LXR
2008 Arctic Cat F 1000 EFI L/C LXR
2007 Arctic Cat F 1000 EFI L/C
2008 Arctic Cat F 1000 EFI L/C
F 1000 Sno Pro EFI L/C
2007 Arctic Cat F 1000 Sno Pro EFI L/C
2008 Arctic Cat F 1000 Sno Pro EFI L/C
2009 Arctic Cat F 1000 Sno Pro EFI L/C
LXR
2008 Arctic Cat F 1000 Sno Pro EFI L/C LXR
F5 EFI L/C
2014 Arctic Cat F5 EFI L/C
F5 Firecat 500 EFI L/C
2007 Arctic Cat F5 Firecat 500 EFI L/C
2008 Arctic Cat F5 Firecat 500 EFI L/C
2009 Arctic Cat F5 Firecat 500 EFI L/C
2013 Arctic Cat F5 Firecat 500 EFI L/C
LXR
2007 Arctic Cat F5 Firecat 500 EFI L/C LXR
2008 Arctic Cat F5 Firecat 500 EFI L/C LXR
2009 Arctic Cat F5 Firecat 500 EFI L/C LXR
2010 Arctic Cat F5 Firecat 500 EFI L/C LXR
2011 Arctic Cat F5 Firecat 500 EFI L/C LXR
2012 Arctic Cat F5 Firecat 500 EFI L/C LXR
F6 Firecat 600 EFI L/C
2007 Arctic Cat F6 Firecat 600 EFI L/C
2008 Arctic Cat F6 Firecat 600 EFI L/C
LXR
2007 Arctic Cat F6 Firecat 600 EFI L/C LXR
2008 Arctic Cat F6 Firecat 600 EFI L/C LXR
F6 Firecat 600 Sno Pro EFI L/C
2007 Arctic Cat F6 Firecat 600 Sno Pro EFI L/C
2008 Arctic Cat F6 Firecat 600 Sno Pro EFI L/C
2009 Arctic Cat F6 Firecat 600 Sno Pro EFI L/C
2010 Arctic Cat F6 Firecat 600 Sno Pro EFI L/C
2011 Arctic Cat F6 Firecat 600 Sno Pro EFI L/C
F8 Firecat 800 EFI L/C
2007 Arctic Cat F8 Firecat 800 EFI L/C
2008 Arctic Cat F8 Firecat 800 EFI L/C
2010 Arctic Cat F8 Firecat 800 EFI L/C
2011 Arctic Cat F8 Firecat 800 EFI L/C
LXR
2007 Arctic Cat F8 Firecat 800 EFI L/C LXR
2008 Arctic Cat F8 Firecat 800 EFI L/C LXR
2010 Arctic Cat F8 Firecat 800 EFI L/C LXR
2011 Arctic Cat F8 Firecat 800 EFI L/C LXR
2012 Arctic Cat F8 Firecat 800 EFI L/C LXR
EXT
2011 Arctic Cat F8 Firecat 800 EFI L/C EXT
Tucker Hibbert Race Replica
2013 Arctic Cat F8 Firecat 800 EFI L/C Tucker Hibbert Race Replica
F8 Firecat 800 Sno Pro EFI L/C
2007 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C
2008 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C
2010 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C
2011 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C
2012 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C
2013 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C
LXR Ltd
2011 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C LXR Ltd
LTD
2012 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C LTD
RR
2013 Arctic Cat F8 Firecat 800 Sno Pro EFI L/C RR
M 1000 EFI L/C
2007 Arctic Cat M 1000 EFI L/C
2008 Arctic Cat M 1000 EFI L/C
M 1000 Sno Pro EFI L/C
2007 Arctic Cat M 1000 Sno Pro EFI L/C
2008 Arctic Cat M 1000 Sno Pro EFI L/C
2011 Arctic Cat M 1000 Sno Pro EFI L/C
162
2010 Arctic Cat M 1000 Sno Pro EFI L/C 162
M 8000 EFI L/C
2014 Arctic Cat M 8000 EFI L/C
HCR 153"
2014 Arctic Cat M 8000 EFI L/C HCR 153"
M 8000 Sno Pro EFI L/C
153
2014 Arctic Cat M 8000 Sno Pro EFI L/C 153
162
2014 Arctic Cat M 8000 Sno Pro EFI L/C 162
Limited 153
2014 Arctic Cat M 8000 Sno Pro EFI L/C Limited 153
Limited ES 162
2014 Arctic Cat M 8000 Sno Pro EFI L/C Limited ES 162
Limited ES 153
2014 Arctic Cat M 8000 Sno Pro EFI L/C Limited ES 153
Limited 162
2014 Arctic Cat M 8000 Sno Pro EFI L/C Limited 162
M6 600 EFI L/C
2009 Arctic Cat M6 600 EFI L/C
M6 Mountain Cat 600 EFI L/C
2010 Arctic Cat M6 Mountain Cat 600 EFI L/C
2011 Arctic Cat M6 Mountain Cat 600 EFI L/C
M8 800 EFI L/C
2007 Arctic Cat M8 800 EFI L/C
2008 Arctic Cat M8 800 EFI L/C
2009 Arctic Cat M8 800 EFI L/C
2012 Arctic Cat M8 800 EFI L/C
2013 Arctic Cat M8 800 EFI L/C
LE
2009 Arctic Cat M8 800 EFI L/C LE
153 EFI L/C
2009 Arctic Cat M8 800 EFI L/C 153 EFI L/C
2010 Arctic Cat M8 800 EFI L/C 153 EFI L/C
2011 Arctic Cat M8 800 EFI L/C 153 EFI L/C
162
2009 Arctic Cat M8 800 EFI L/C 162
2010 Arctic Cat M8 800 EFI L/C 162
2011 Arctic Cat M8 800 EFI L/C 162
HCR
2009 Arctic Cat M8 800 EFI L/C HCR
2011 Arctic Cat M8 800 EFI L/C HCR
2012 Arctic Cat M8 800 EFI L/C HCR
2013 Arctic Cat M8 800 EFI L/C HCR
LE 153C
2009 Arctic Cat M8 800 EFI L/C LE 153C
HCR 153
2010 Arctic Cat M8 800 EFI L/C HCR 153
M8 800 Sno Pro EFI L/C
2007 Arctic Cat M8 800 Sno Pro EFI L/C
2008 Arctic Cat M8 800 Sno Pro EFI L/C
2009 Arctic Cat M8 800 Sno Pro EFI L/C
162
2009 Arctic Cat M8 800 Sno Pro EFI L/C 162
2010 Arctic Cat M8 800 Sno Pro EFI L/C 162
2011 Arctic Cat M8 800 Sno Pro EFI L/C 162
2012 Arctic Cat M8 800 Sno Pro EFI L/C 162
2013 Arctic Cat M8 800 Sno Pro EFI L/C 162
2014 Arctic Cat M8 800 Sno Pro EFI L/C 162
153
2009 Arctic Cat M8 800 Sno Pro EFI L/C 153
2010 Arctic Cat M8 800 Sno Pro EFI L/C 153
2011 Arctic Cat M8 800 Sno Pro EFI L/C 153
2012 Arctic Cat M8 800 Sno Pro EFI L/C 153
2013 Arctic Cat M8 800 Sno Pro EFI L/C 153
LE 153
2010 Arctic Cat M8 800 Sno Pro EFI L/C LE 153
153 Limited
2011 Arctic Cat M8 800 Sno Pro EFI L/C 153 Limited
Mountain Cat 600 EFI L/C
2007 Arctic Cat Mountain Cat 600 EFI L/C
2008 Arctic Cat Mountain Cat 600 EFI L/C
2009 Arctic Cat Mountain Cat 600 EFI L/C
2010 Arctic Cat Mountain Cat 600 EFI L/C
2011 Arctic Cat Mountain Cat 600 EFI L/C
Sno Pro 500 EFI L/C
2010 Arctic Cat Sno Pro 500 EFI L/C
2011 Arctic Cat Sno Pro 500 EFI L/C
2012 Arctic Cat Sno Pro 500 EFI L/C
2013 Arctic Cat Sno Pro 500 EFI L/C
2014 Arctic Cat Sno Pro 500 EFI L/C
T 500 EFI L/C
2008 Arctic Cat T 500 EFI L/C
2009 Arctic Cat T 500 EFI L/C
XF 800 EFI L/C
LXR
2012 Arctic Cat XF 800 EFI L/C LXR
2014 Arctic Cat XF 800 EFI L/C LXR
XF 800 Sno Pro EFI L/C
2012 Arctic Cat XF 800 Sno Pro EFI L/C
2013 Arctic Cat XF 800 Sno Pro EFI L/C
2014 Arctic Cat XF 800 Sno Pro EFI L/C
LTD
2012 Arctic Cat XF 800 Sno Pro EFI L/C LTD
2014 Arctic Cat XF 800 Sno Pro EFI L/C LTD
XF 8000 Cross Country Sno Pro EFI L/C
2014 Arctic Cat XF 8000 Cross Country Sno Pro EFI L/C
XF 8000 Crosstour EFI L/C
2014 Arctic Cat XF 8000 Crosstour EFI L/C
XF 8000 EFI L/C
Crosstour
2014 Arctic Cat XF 8000 EFI L/C Crosstour
XF 8000 High Country Limited EFI L/C
2014 Arctic Cat XF 8000 High Country Limited EFI L/C
XF 8000 High Country Sno Pro EFI L/C
2014 Arctic Cat XF 8000 High Country Sno Pro EFI L/C
XF 8000 Limited EFI L/C
2014 Arctic Cat XF 8000 Limited EFI L/C
XF 8000 LXR EFI L/C
2014 Arctic Cat XF 8000 LXR EFI L/C
XF 8000 Sno Pro EFI L/C
2014 Arctic Cat XF 8000 Sno Pro EFI L/C
ZR 8000 EFI L/C
LXR
2014 Arctic Cat ZR 8000 EFI L/C LXR
ZR 8000 Limited EFI L/C
2014 Arctic Cat ZR 8000 Limited EFI L/C
ZR 8000 LXR EFI L/C
2014 Arctic Cat ZR 8000 LXR EFI L/C
ZR 8000 RR EFI L/C
2014 Arctic Cat ZR 8000 RR EFI L/C
ZR 8000 Sno Pro EFI L/C
2014 Arctic Cat ZR 8000 Sno Pro EFI L/C

OEM 3007-545
3007-693
3007-701
3007-447
3007-617
3007-623
3007-711

Resistant to 200 degrees Celsius

Connector included

Dimensions:
Interior diameter: 47 mm
Exterior diameter: 144 mm
Thickness: 20 mm

Other specifications:
Number of wires : 10
Number of plugs: 3
Number of terminals : 11

Wire to wire resistance
Alternator : Yellow to Yellow = 0.4 ohms+/-20%
Fuel Pump : Blue/White to Blue/White = 36 ohms+/-20%
Source Coil : 1 Green/Red to Brown/White = 15 ohms+/-20%
Source Coil 2 : Green to Black = 39 ohms+/-20%
Other : Orange to Orange = 40 ohms+/-20%
