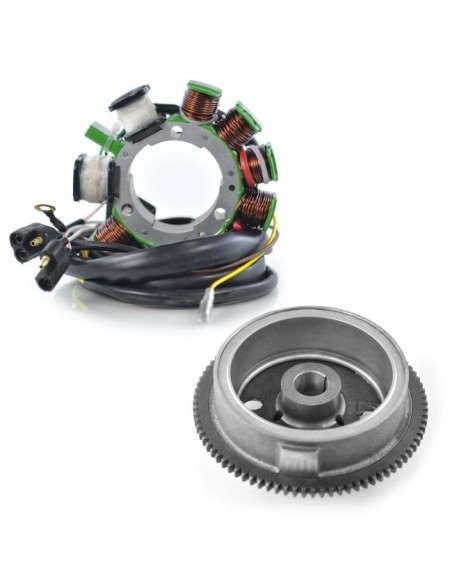

Kit Stator Flywheel Rotor Polaris Big Boss 500 6x6 OEM 3085561 3086821 3085558 3087166 3086819 3086983

OEM
Stator:
3085561
3086821

Flywheel:
3085558
3087166
3086819
3086983

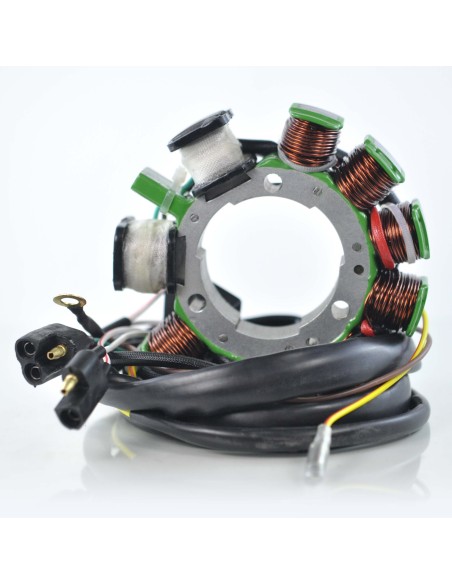

Stator:
Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm
Other specifications:
Number of wires: 9
Number of plugs: 7
Number of pins: 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%

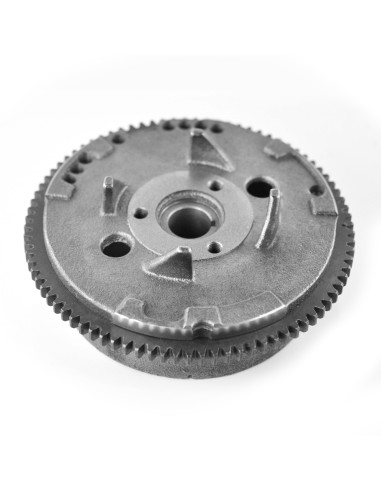

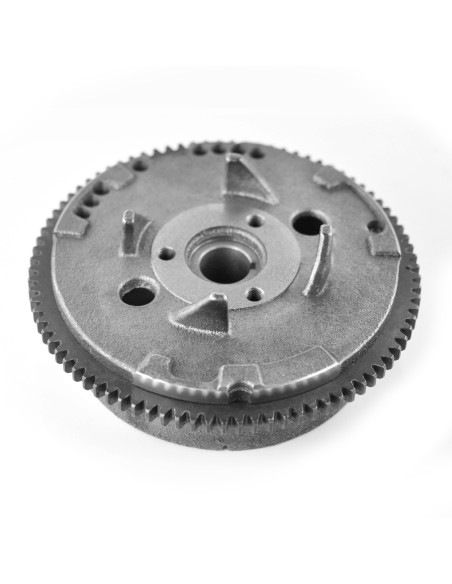

Flywheel:
Dimensions:
Exterior Diameter: 141 mm
Interior Diameter: 117 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 23 mm

Pick up pulsar coil included

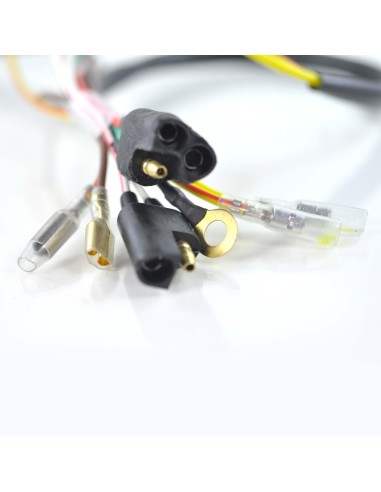

Connector included

Resistant to 200 degrees Celsius
