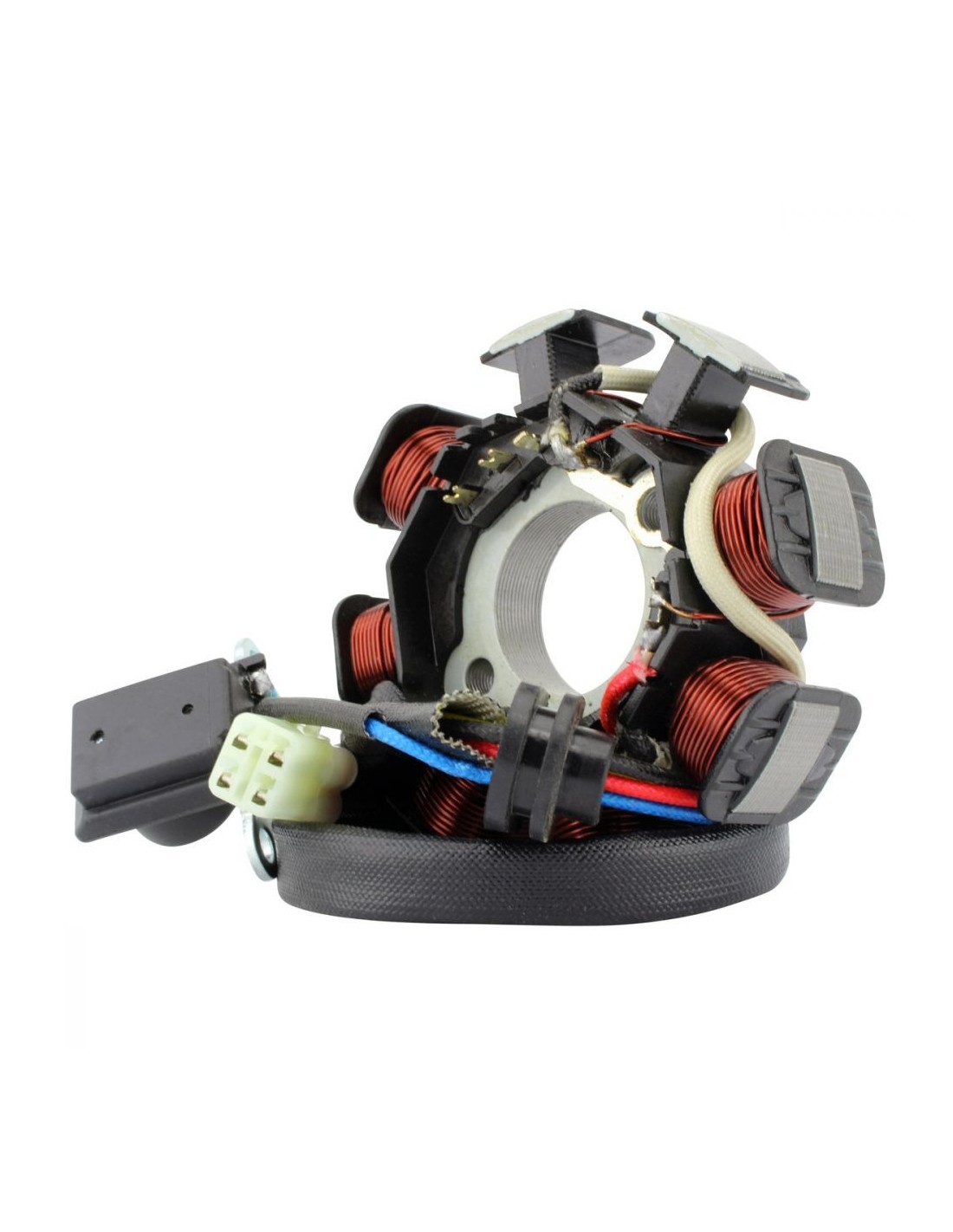

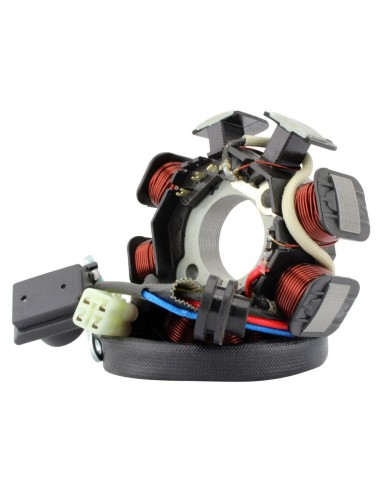

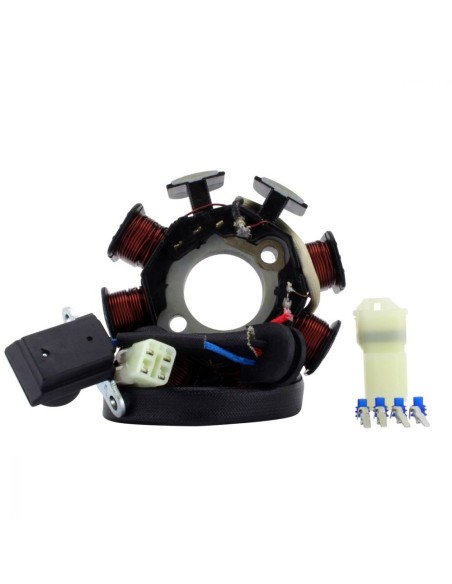

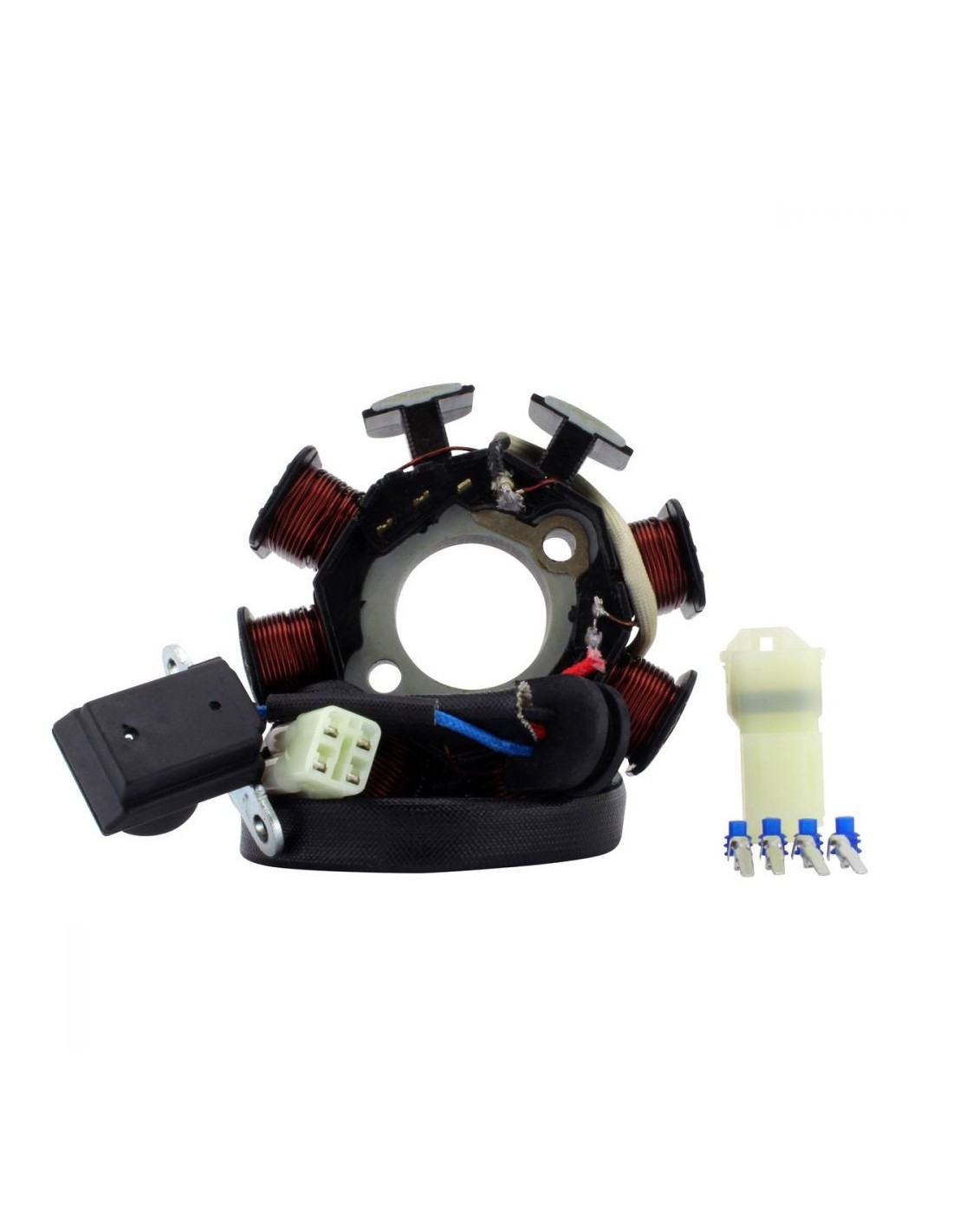

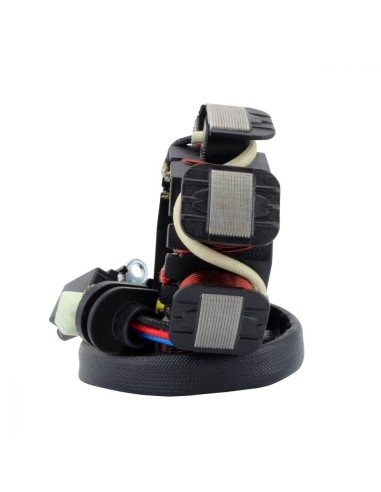

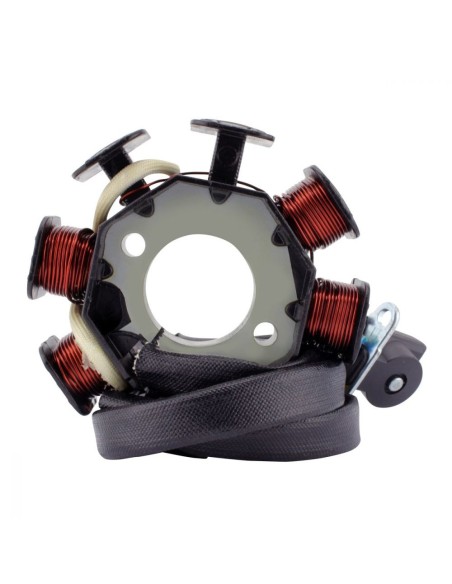

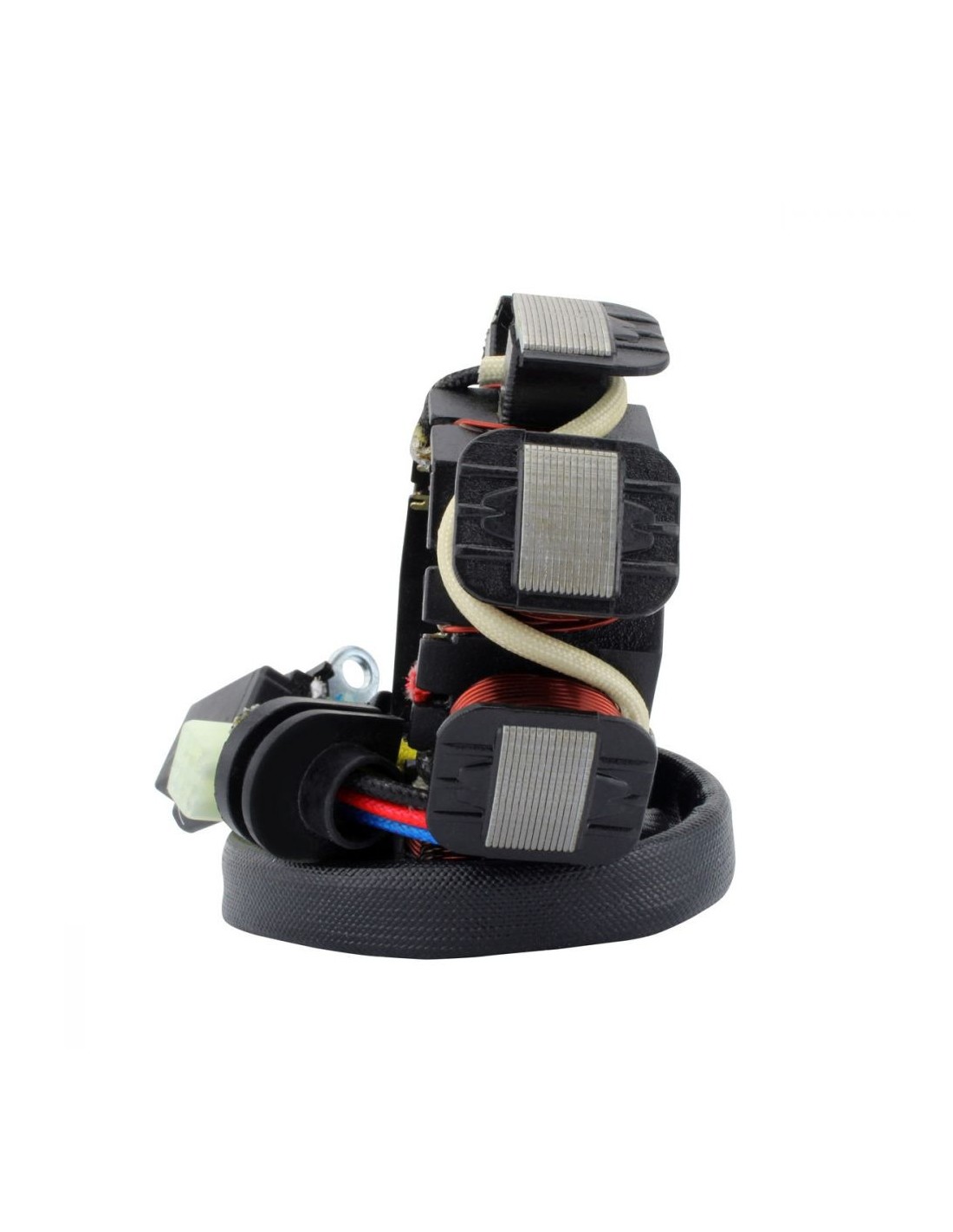

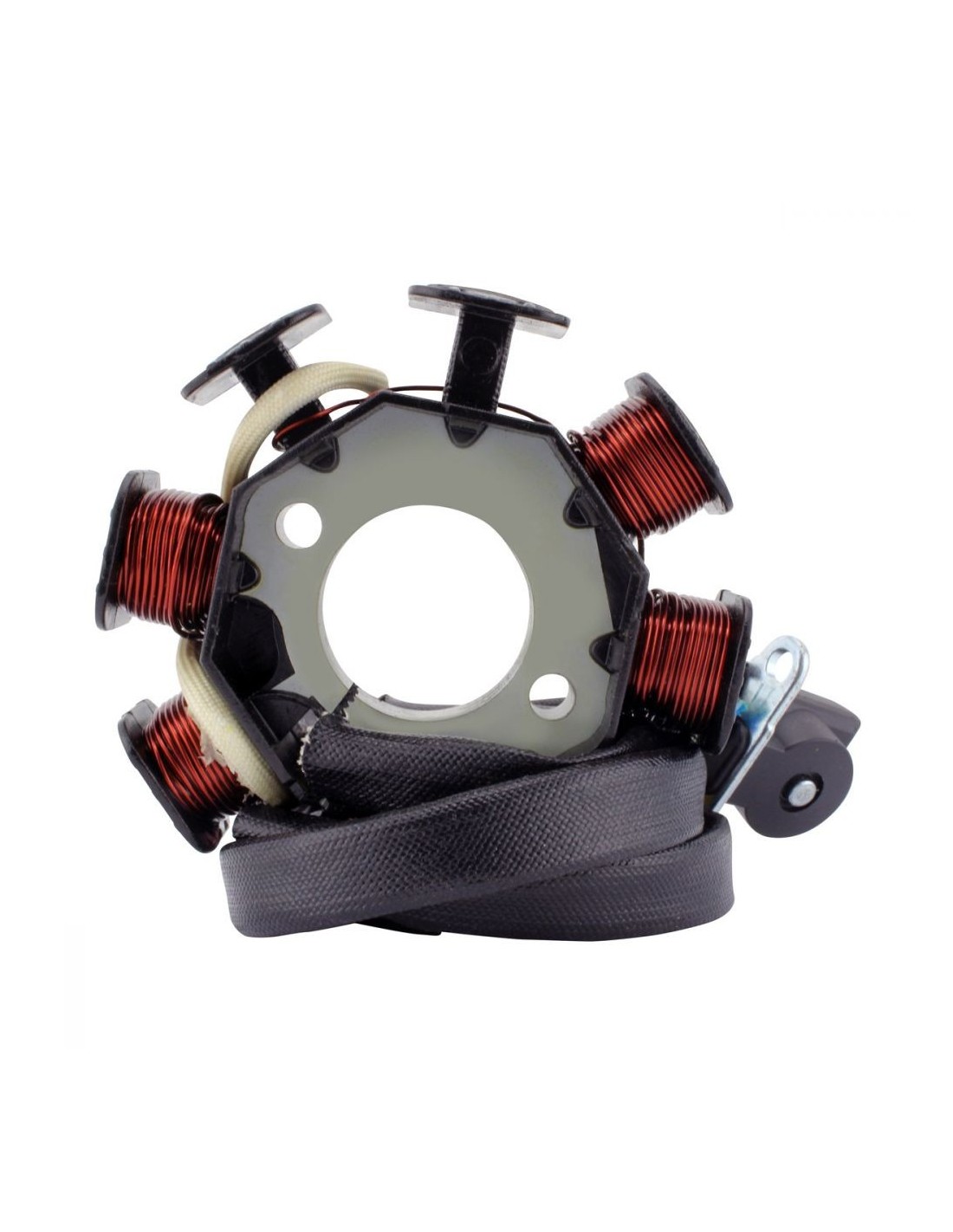

Stator Yamaha YFZ 50 OEM BW4-H1410-00-00
CARMS010-107229
5-7 Days
€118.80
Tax included
OEM BW4-H1410-00-00
Stator
2017-2024 Yamaha YFZ 50
OEM BW4-H1410-00-00
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 88 mm
Thickness: 12 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 360 mm
Length of pickup coil's wire to grommet: 30 mm
Other specifications:

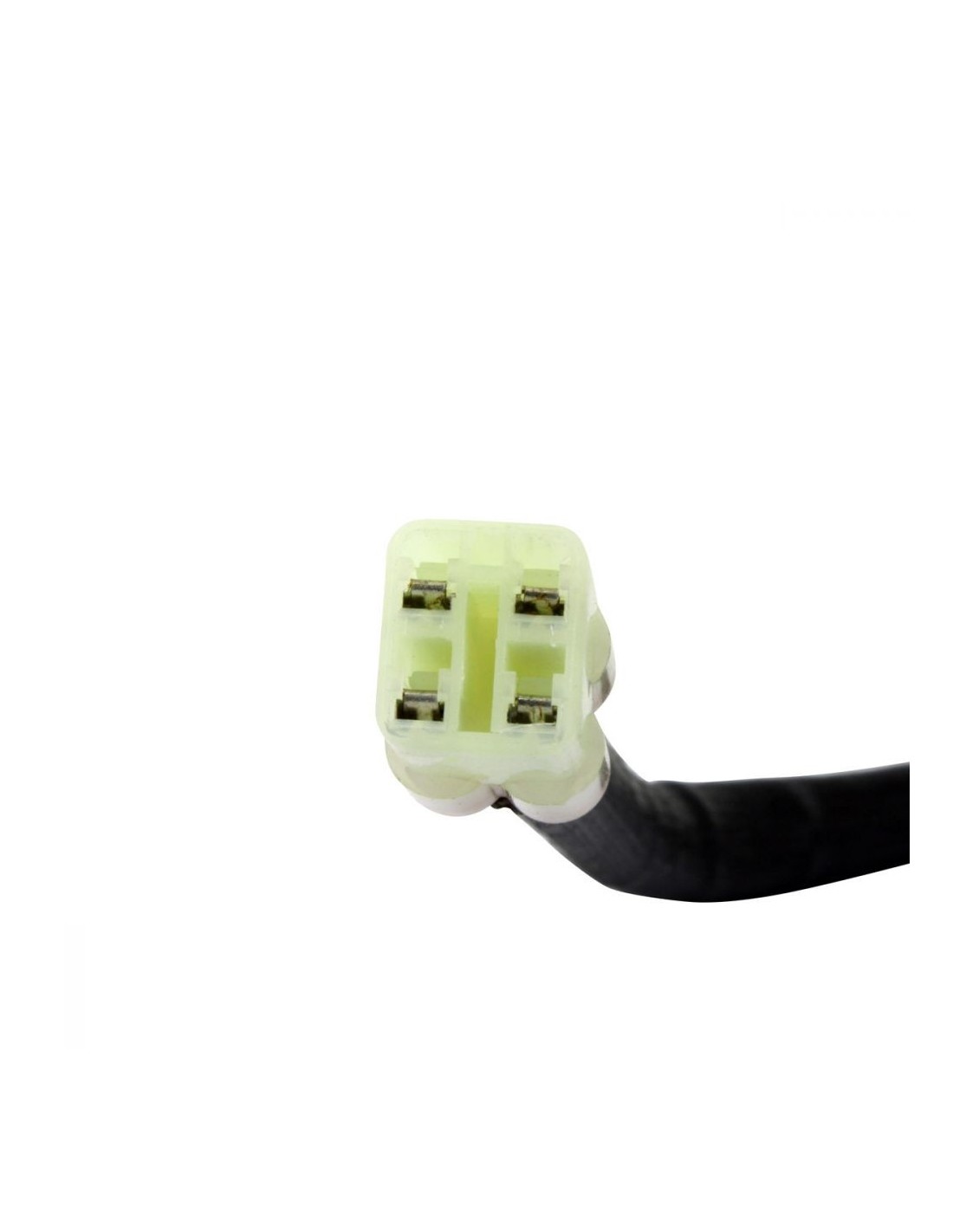

Number of wires: 4
Number of plugs: 1
Number of pins: 4
Number of poles: 8
Wire to wire resistance:
Alternator # 1: Yellow to Black = 0.7 ohms +-20%
Alternator # 2: Red to Black = 1.0 ohms +-20%
Alternator # 3: Red to Yellow = 0.6 ohms +-20%
Pickup: Blue to Ground = 122.2 ohms +-20%
Resistant to 200 degrees Celsius.
