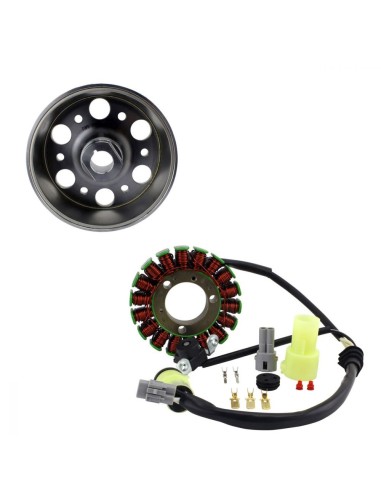

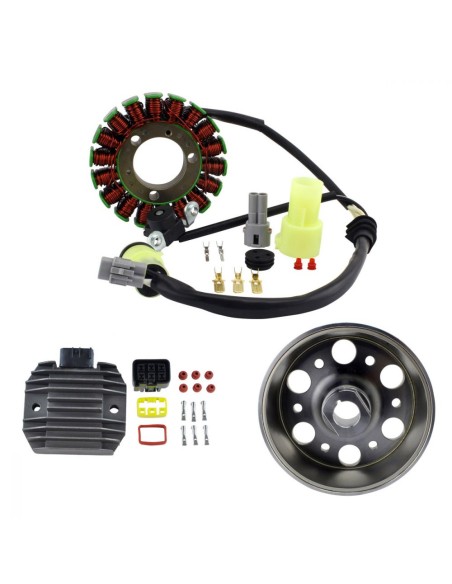

Stator Rotor Regulator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00 18P-81450-00-00 18P-81450-01-00

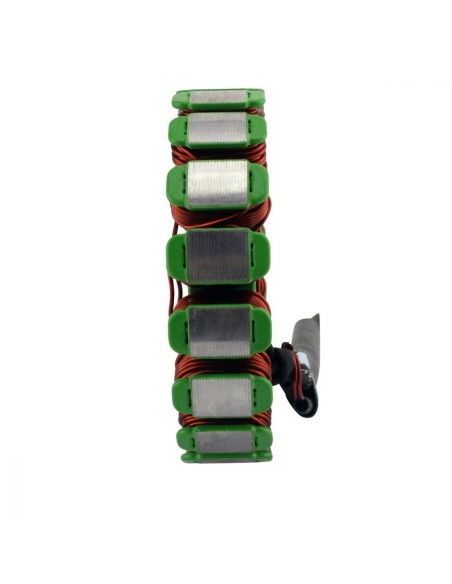

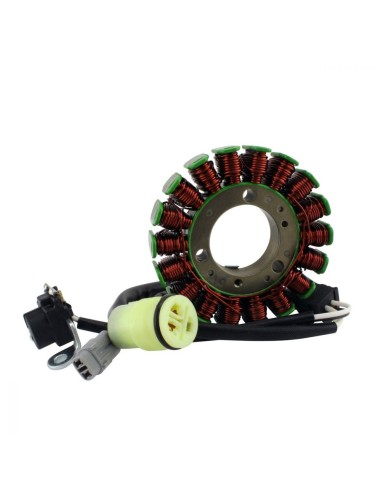

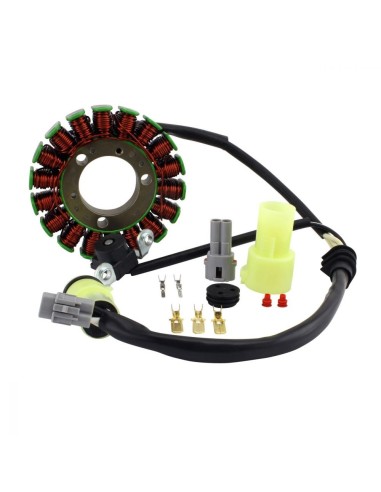

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

• 2023 Yamaha YFZ 450 R
  2022 Yamaha YFZ 450 R
  2021 Yamaha YFZ 450 R
  2020 Yamaha YFZ 450 R
  2019 Yamaha YFZ 450 R
  2018 Yamaha YFZ 450 R
  2017 Yamaha YFZ 450 R
  2016 Yamaha YFZ 450 R
  2015 Yamaha YFZ 450 R
  2014 Yamaha YFZ 450 R
  2013 Yamaha YFZ 450 R
  2012 Yamaha YFZ 450 R
  2011 Yamaha YFZ 450 X
  2011 Yamaha YFZ 450 R
  2010 Yamaha YFZ 450 X
  2010 Yamaha YFZ 450 R
  2009 Yamaha YFZ 450 R

  OEM 18P-81410-00-00

  Stator Dimensions:
  Interior diameter: 37 mm
  Exterior diameter: 97 mm
  Thickness: 14 mm
  Length of wires stator to grommet: 160 mm
  Length of wires grommet to plug: 180 mm
  Length of pickup coil's wire to grommet: 180 mm

  Other specifications:
  Number of wires: 5

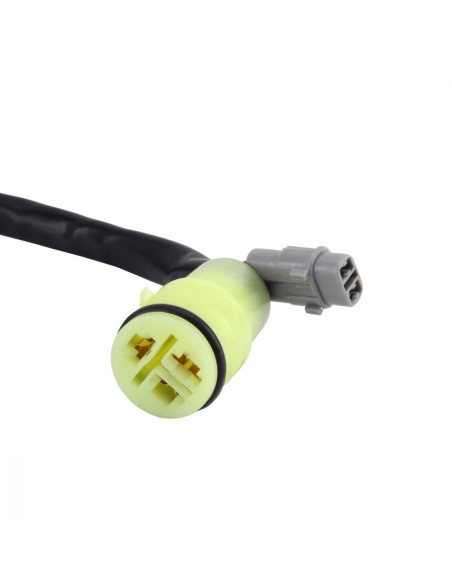

  Number of plugs: 2
  Number of pins: 5
  Number of poles: 18
  Wire to wire resistance:
  Alternator: White to White = 0.2 ohms +-20%
  Alternator: White to ground = O.L
  Pickup: White to Black = 260 ohms +-20%

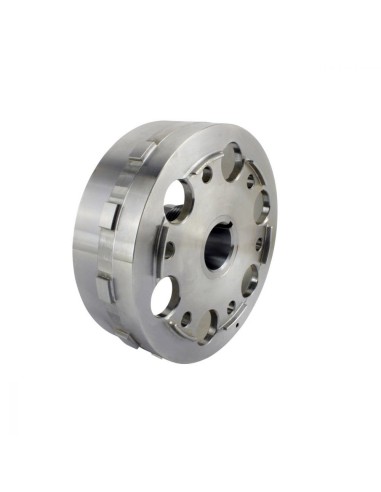

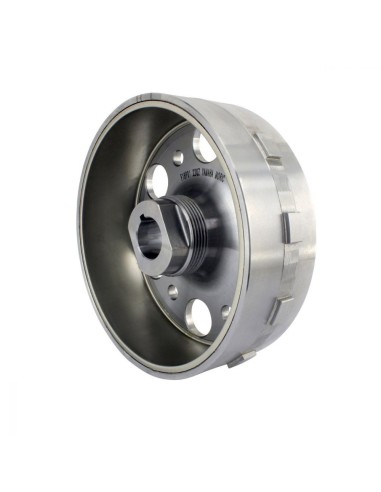

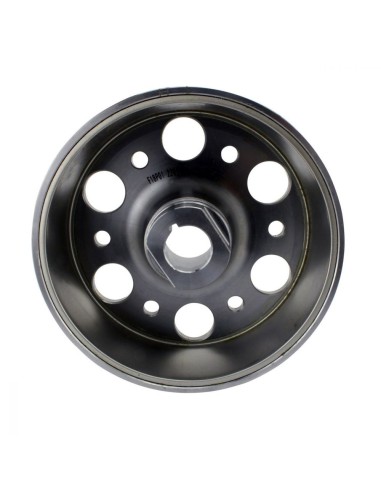

• Rotor Dimensions:
  Exterior Diameter: 110 mm
  Interior Diameter: 99 mm
  Interior Diameter Center Housing: 30 mm
  Exterior Diameter Center Housing: 33 mm
  Thickness (exterior): 31 mm
  Thickness (interior): 38 mm

Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

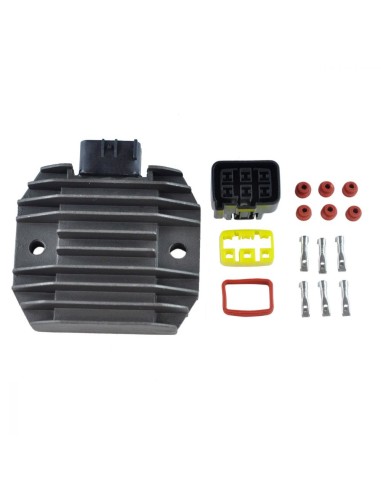

• Regulator Dimensions :
• Width : 89 mm
• Length : 91 mm
• Height: 27 mm
• Fixation holes center to center : 65 mm
• Other specifications :
• Number of plugs : 1
• Number of pins : 6
