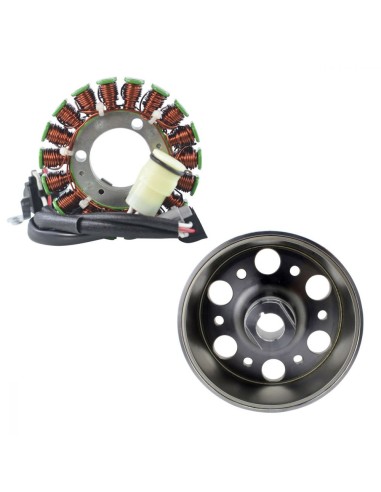

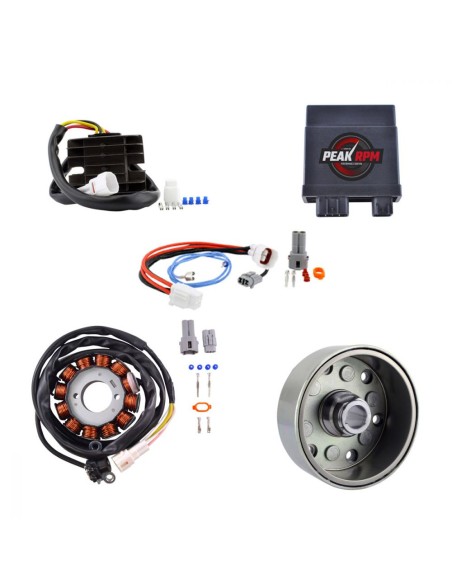

Kit Stator Rotor CDI Regulator Harness Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00 18P-81450-00-00 18P-81450-01-00

Stator 140W- Highest grade copper windings, resistant to 200 degrees Celsius

• 2024 Yamaha YFZ 450 R
• 2023 Yamaha YFZ 450 R SE
• 2023 Yamaha YFZ 450 R
• 2022 Yamaha YFZ 450 R SE
• 2022 Yamaha YFZ 450 R
• 2021 Yamaha YFZ 450 R SE
• 2021 Yamaha YFZ 450 R
• 2020 Yamaha YFZ 450 R SE
• 2020 Yamaha YFZ 450 R
• 2019 Yamaha YFZ 450 R SE
• 2019 Yamaha YFZ 450 R
• 2018 Yamaha YFZ 450 R SE
• 2018 Yamaha YFZ 450 R
• 2017 Yamaha YFZ 450 R SE
• 2017 Yamaha YFZ 450 R
• 2016 Yamaha YFZ 450 R SE
• 2016 Yamaha YFZ 450 R
• 2015 Yamaha YFZ 450 R SE
• 2015 Yamaha YFZ 450 R
• 2014 Yamaha YFZ 450 R SE
• 2014 Yamaha YFZ 450 R
• 2013 Yamaha YFZ 450 R SE
• 2013 Yamaha YFZ 450 R
• 2012 Yamaha YFZ 450 R SE
• 2012 Yamaha YFZ 450 R
• 2011 Yamaha YFZ 450 X SE
• 2011 Yamaha YFZ 450 X
• 2011 Yamaha YFZ 450 R SE
• 2011 Yamaha YFZ 450 R
• 2010 Yamaha YFZ 450 X Bill Balance
• 2010 Yamaha YFZ 450 X
• 2010 Yamaha YFZ 450 R SE
• 2010 Yamaha YFZ 450 R
• 2009 Yamaha YFZ 450 R SE
• 2009 Yamaha YFZ 450 R
• OEM
• 18P-81450-00-00
• 18P-81450-01-00
• 18P-81410-00-00

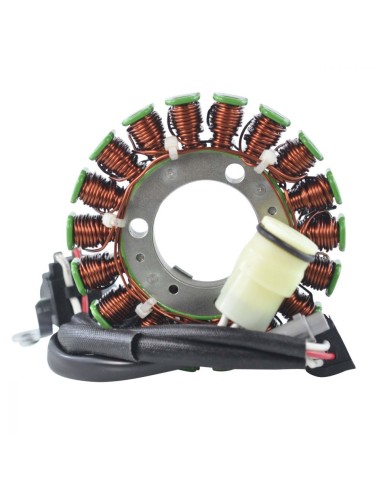

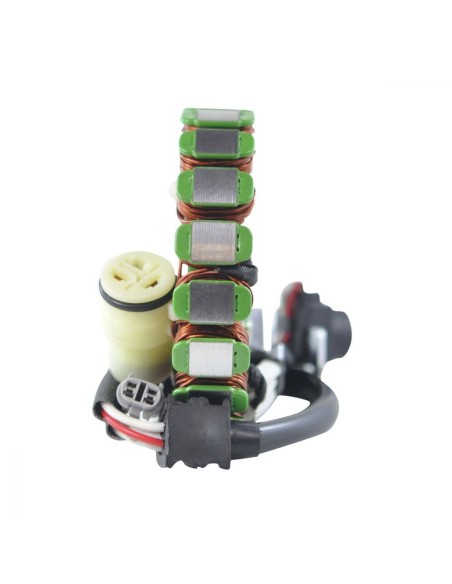

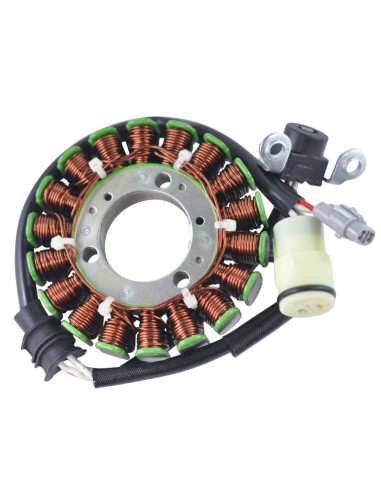

• Stator
• Dimensions:
• Interior diameter: 37 mm
• Exterior diameter: 97 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 130 mm
• Length of wires grommet to plug: 110 mm
• Length of pickup coil's wire to grommet: 220 mm
• Other specifications :
• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Wire to wire resistance:
• Alternator: White to White = 0.4 ohms +-20%
• Pickup: Black to White = 250 ohms +-20%

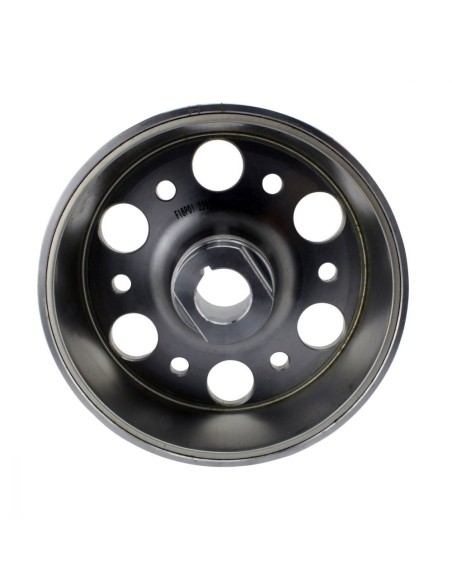

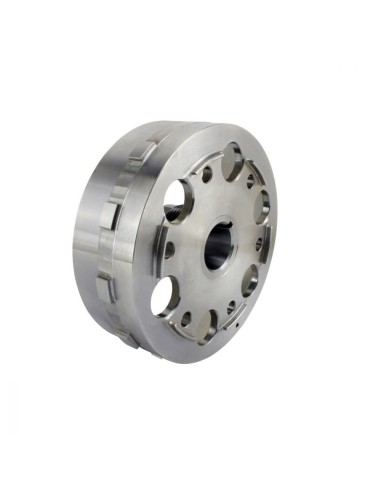

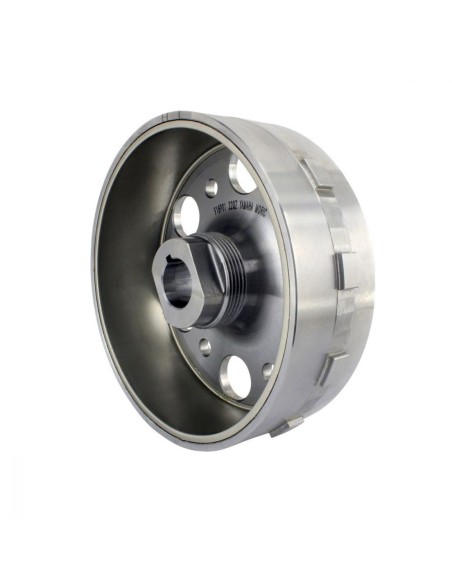

• Specifications of Flywheel:
• Dimensions Rotor:
• Exterior Diameter: 110 mm
• Interior Diameter: 99 mm
• Interior Diameter Center Housing: 30 mm
• Exterior Diameter Center Housing: 33 mm
• Thickness (exterior): 31 mm
• Thickness (interior): 38 mm

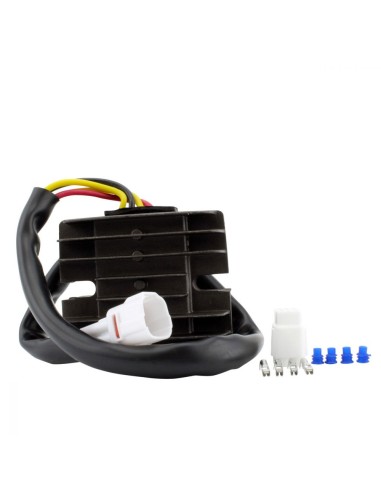

Specifications of Regulator:

Dimensions:

Width: 66 mm

Length: 78 mm

Height: 27 mm

Wires length: 465 mm

Distance between fixation holes center to center: 62 mm

Other specifications:

Number of plugs: 1

Number of pins: 4

Number of wires: 4

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C

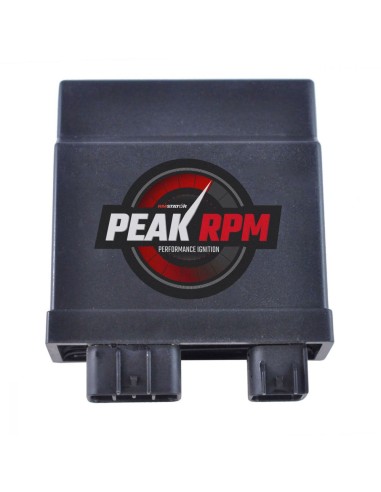

Specifications of CDI:

Dimensions:

Height: 36 mm

Length: 86 mm

Width: 81 mm

Other specifications:

Number of plugs: 2

Number of pins: 12

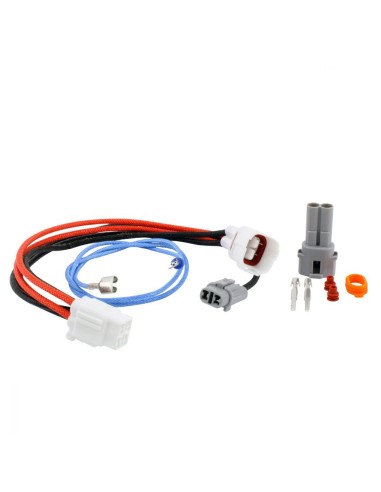

Specifications of Harness:

Dimensions:

Length: 250 mm

Number of plugs: 2

Number of pins: 8
