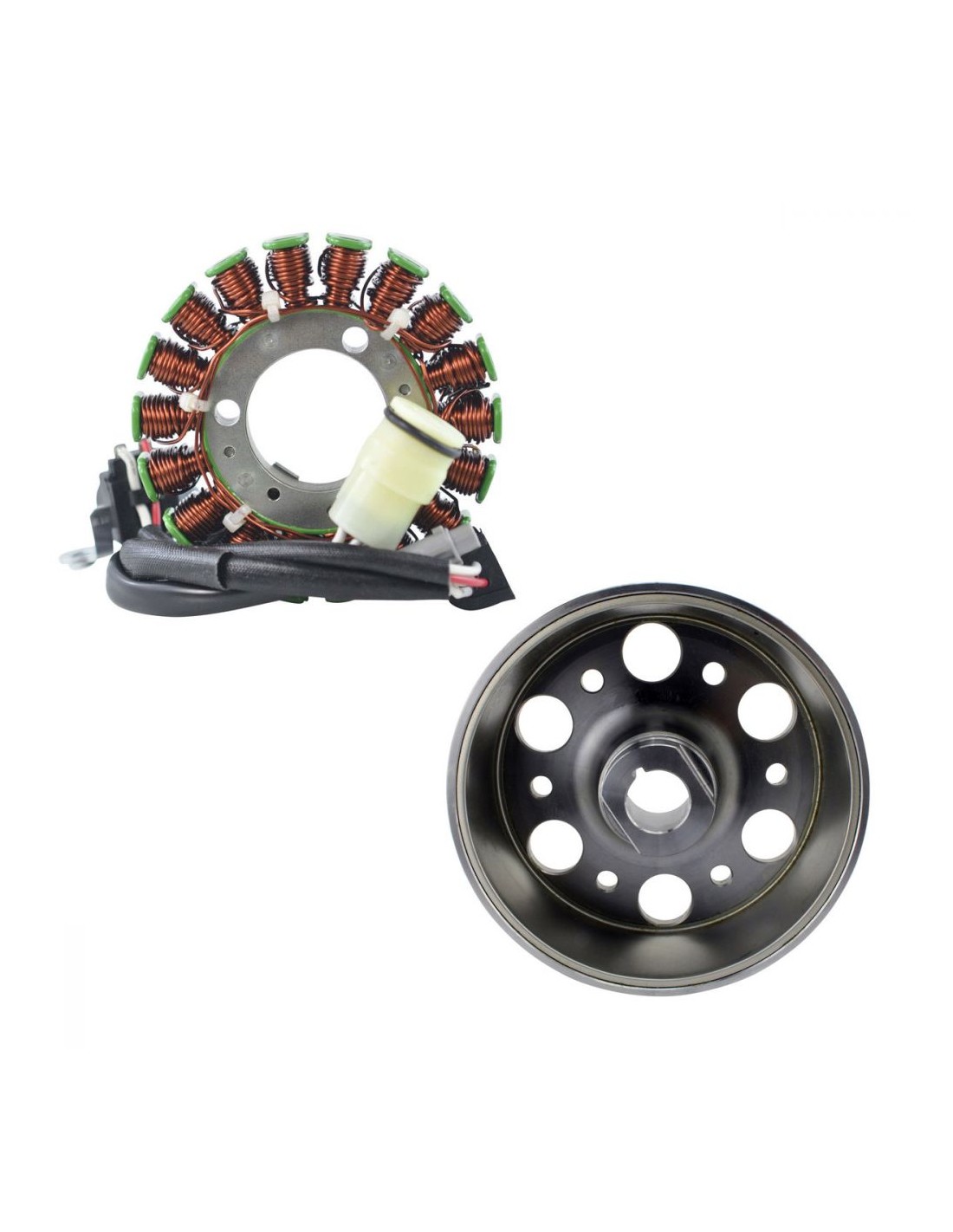

Stator Rotor Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00 18P-81450-00-00 18P-81450-01-00

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

• 2024 Yamaha YFZ 450 R
• 2023 Yamaha YFZ 450 R SE
• 2023 Yamaha YFZ 450 R
• 2022 Yamaha YFZ 450 R SE
• 2022 Yamaha YFZ 450 R
• 2021 Yamaha YFZ 450 R SE
• 2021 Yamaha YFZ 450 R
• 2020 Yamaha YFZ 450 R SE
• 2020 Yamaha YFZ 450 R
• 2019 Yamaha YFZ 450 R SE
• 2019 Yamaha YFZ 450 R
• 2018 Yamaha YFZ 450 R SE
• 2018 Yamaha YFZ 450 R
• 2017 Yamaha YFZ 450 R SE
• 2017 Yamaha YFZ 450 R
• 2016 Yamaha YFZ 450 R SE
• 2016 Yamaha YFZ 450 R
• 2015 Yamaha YFZ 450 R SE
• 2015 Yamaha YFZ 450 R
• 2014 Yamaha YFZ 450 R SE
• 2014 Yamaha YFZ 450 R
• 2013 Yamaha YFZ 450 R SE
• 2013 Yamaha YFZ 450 R
• 2012 Yamaha YFZ 450 R SE
• 2012 Yamaha YFZ 450 R
• 2011 Yamaha YFZ 450 X SE
• 2011 Yamaha YFZ 450 X
• 2011 Yamaha YFZ 450 R SE
• 2011 Yamaha YFZ 450 R
• 2010 Yamaha YFZ 450 X Bill Balance
• 2010 Yamaha YFZ 450 X
• 2010 Yamaha YFZ 450 R SE
• 2010 Yamaha YFZ 450 R
• 2009 Yamaha YFZ 450 R SE
• 2009 Yamaha YFZ 450 R
• OEM
• 18P-81450-00-00
• 18P-81450-01-00
• 18P-81410-00-00

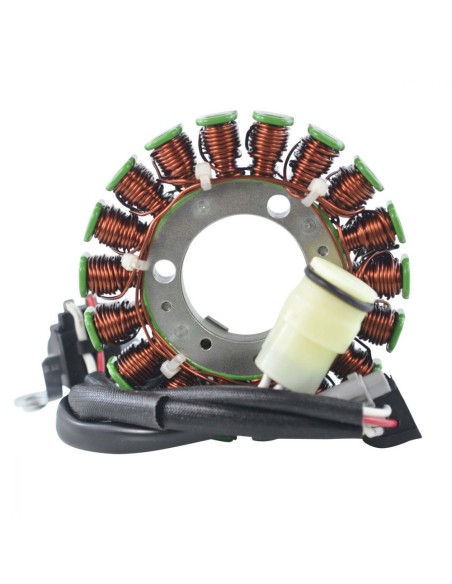

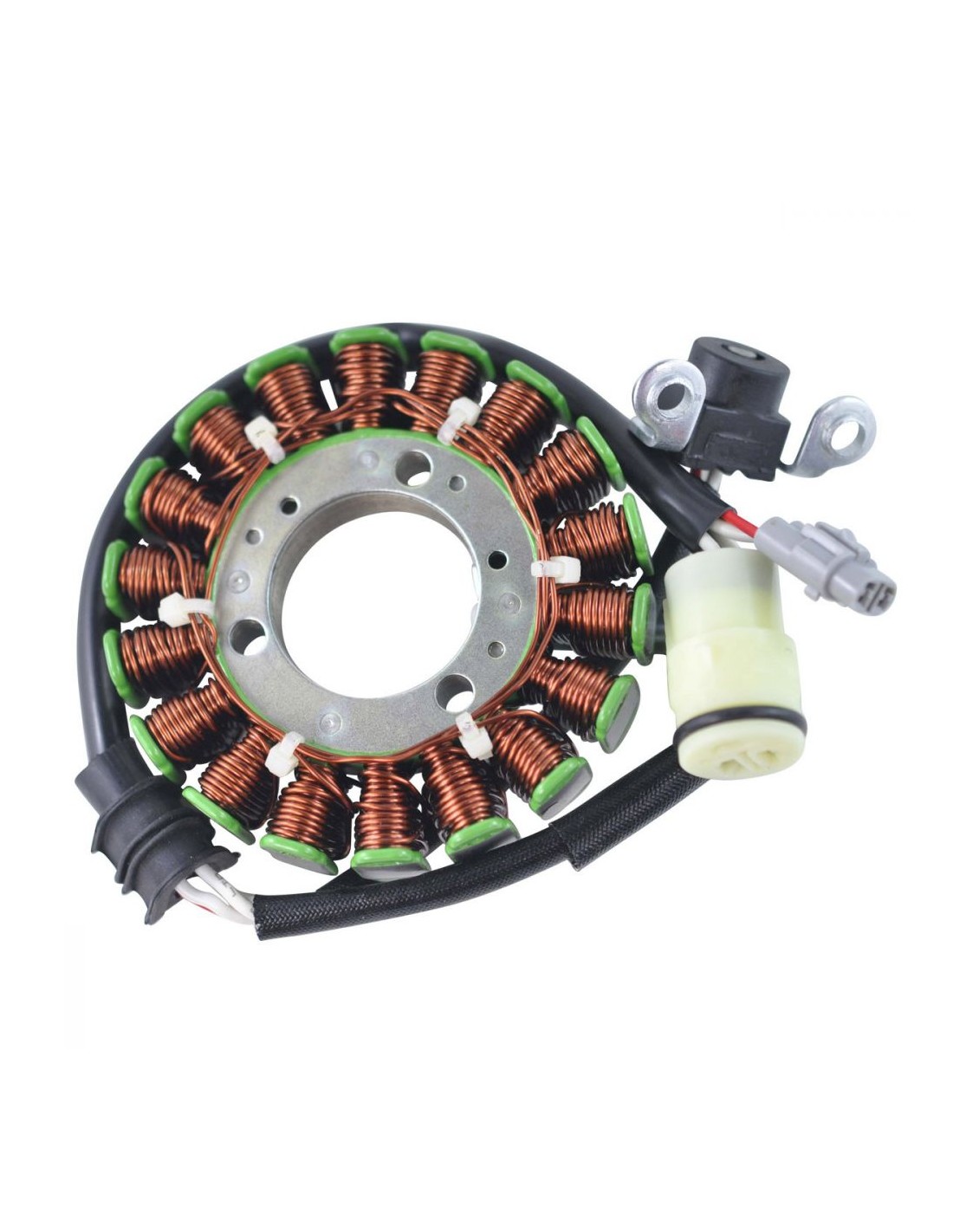

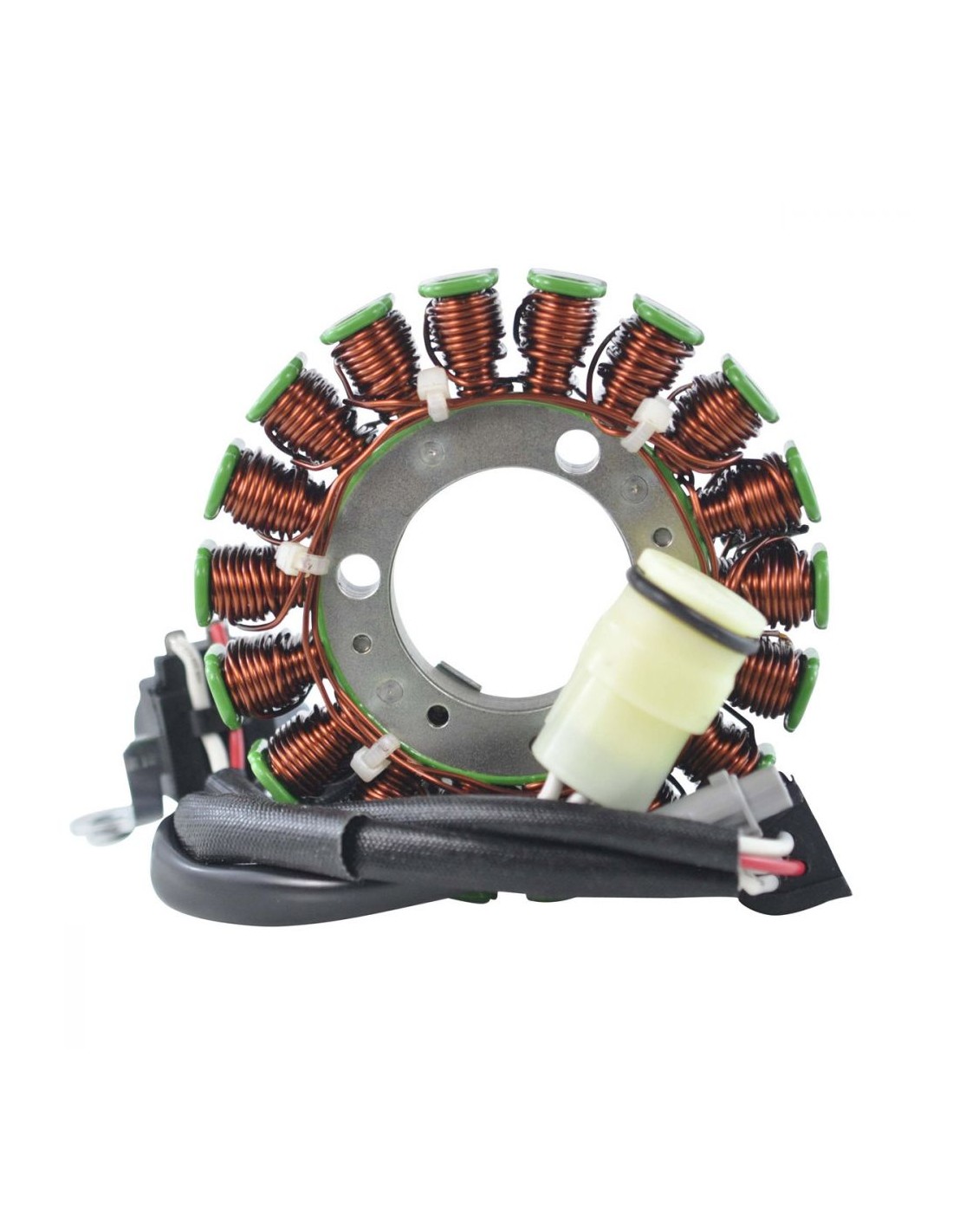

• Stator
• Dimensions:
• Interior diameter: 37 mm
• Exterior diameter: 97 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 130 mm
• Length of wires grommet to plug: 110 mm
• Length of pickup coil's wire to grommet: 220 mm
• Other specifications :
• Number of wires: 5

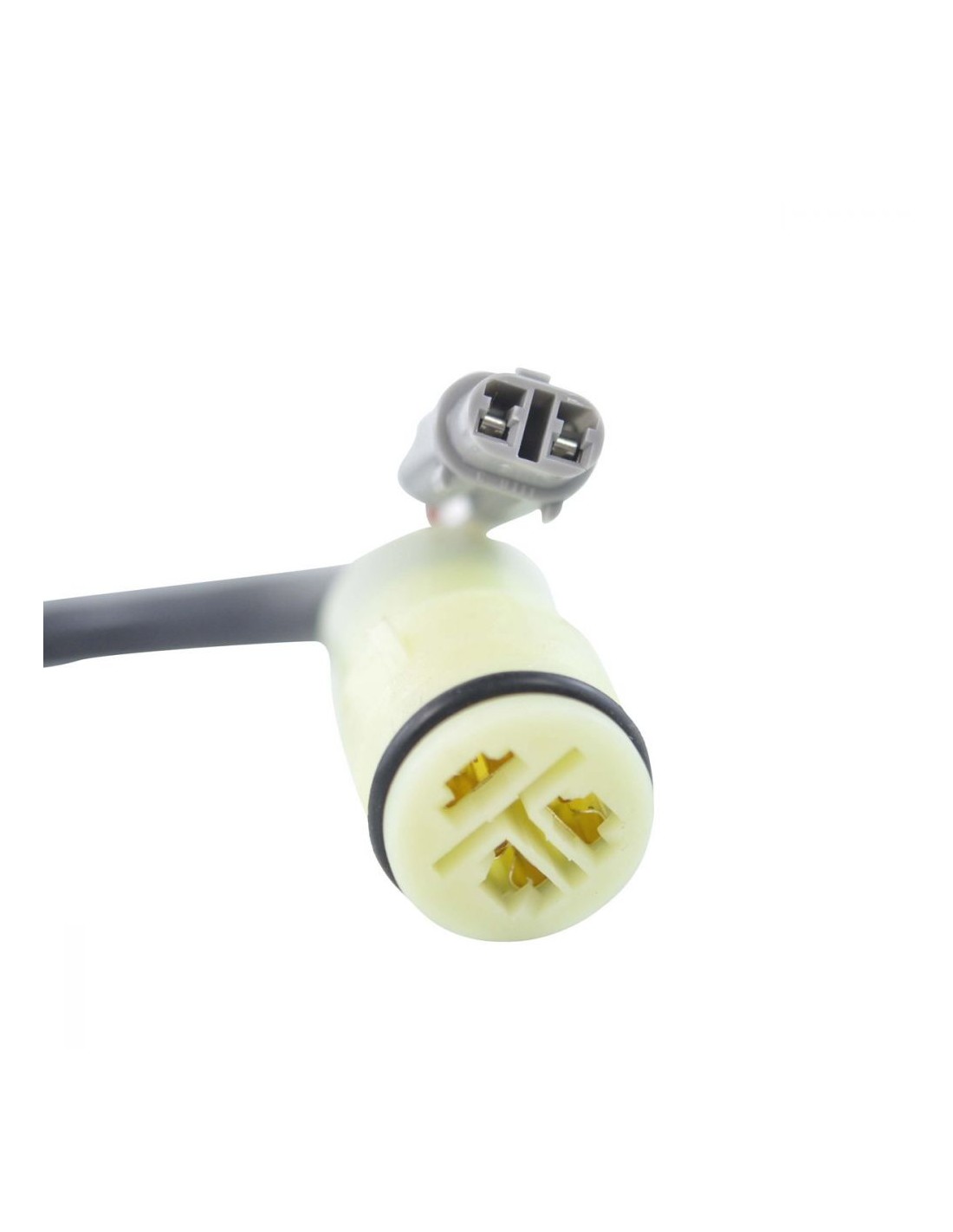

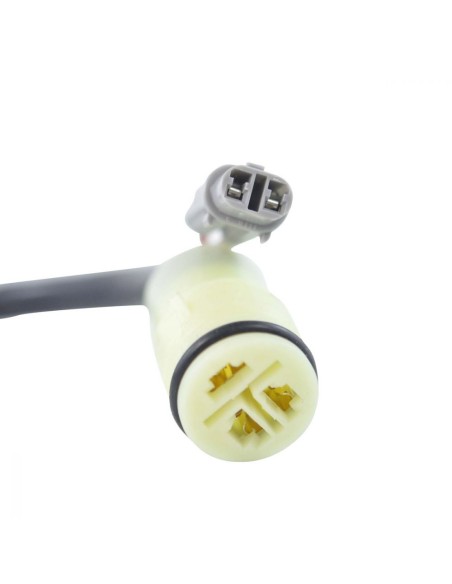

• Number of plugs: 2
• Number of pins: 5
• Wire to wire resistance:
• Alternator: White to White = 0.4 ohms +-20%
• Pickup: Black to White = 250 ohms +-20%

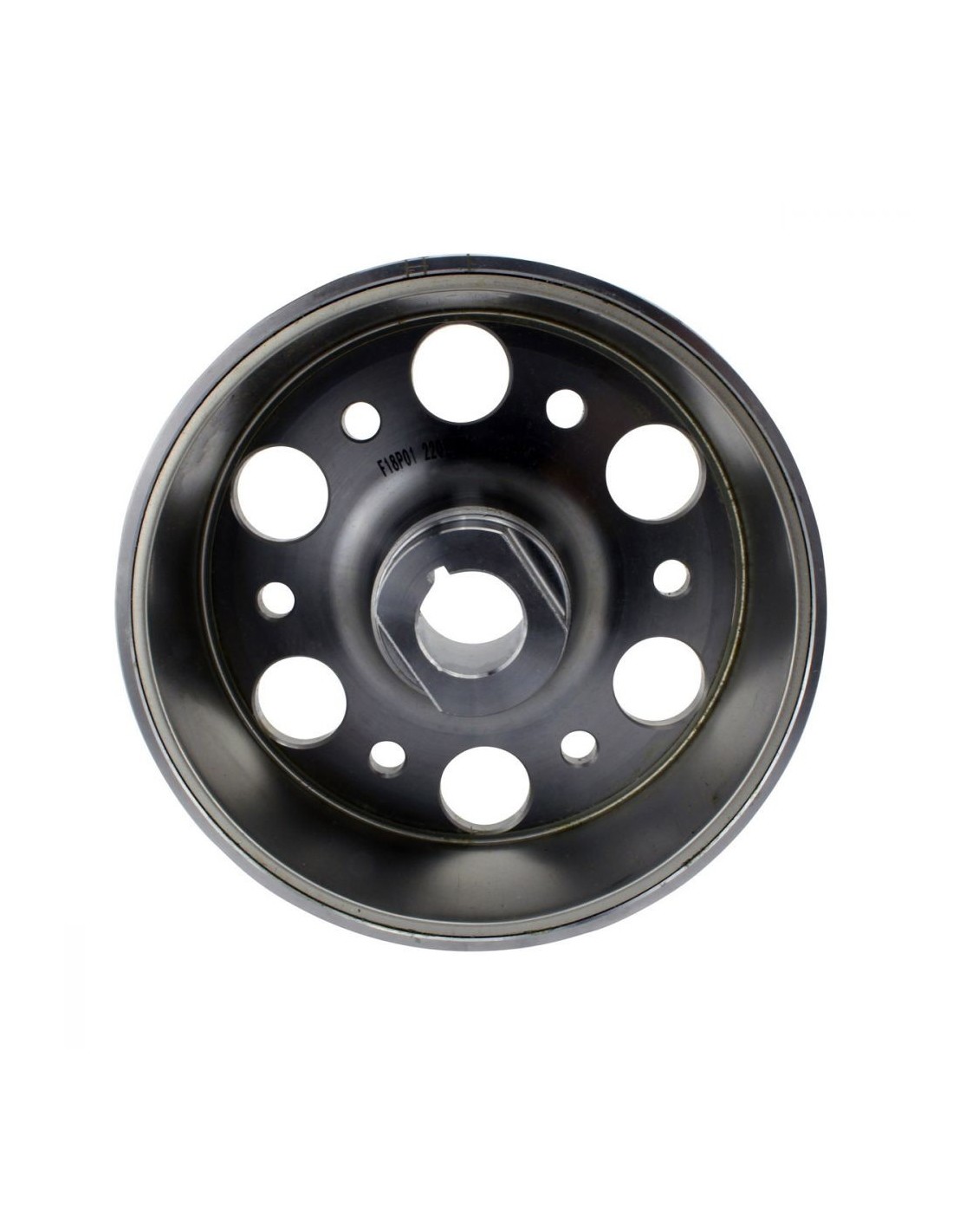

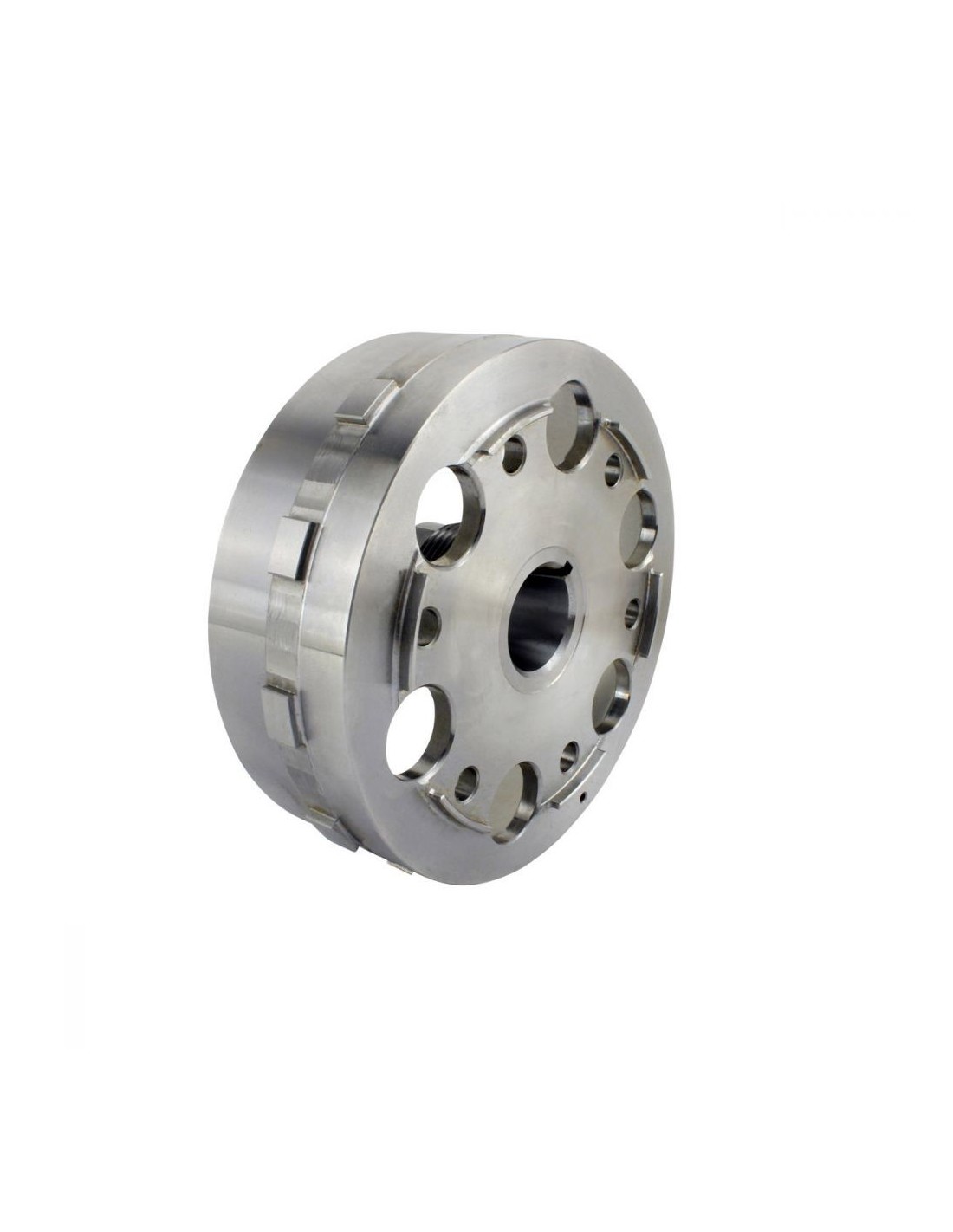

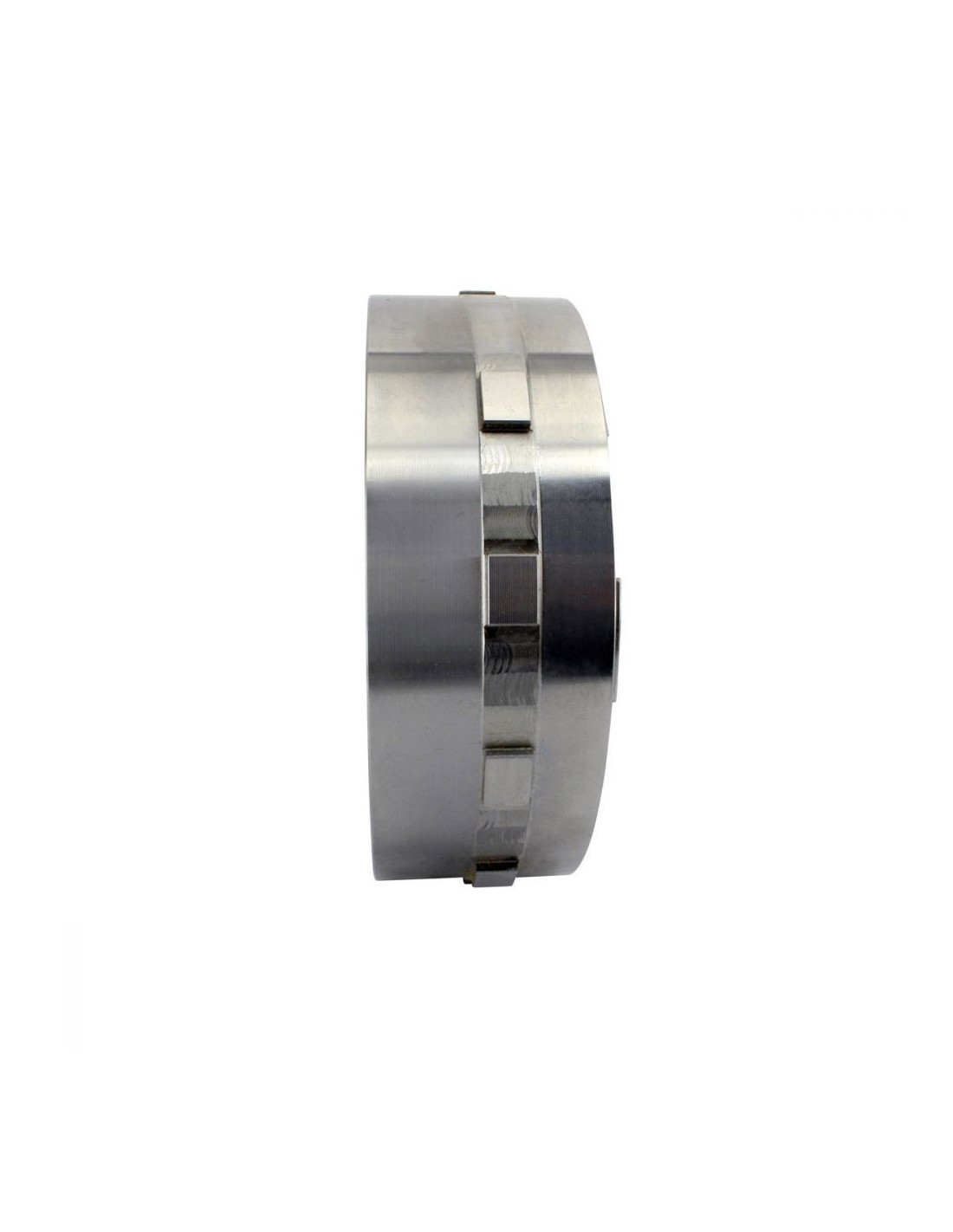

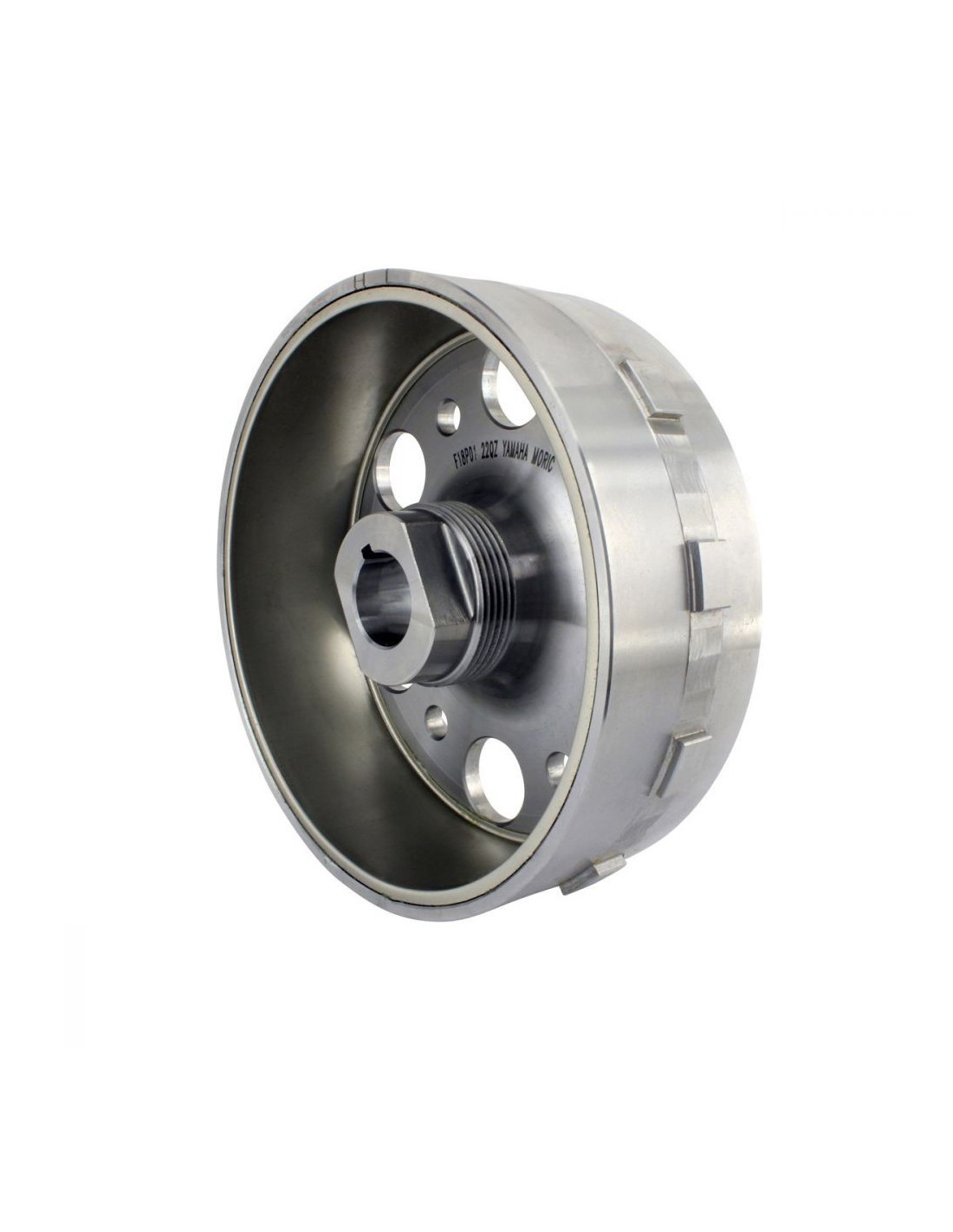

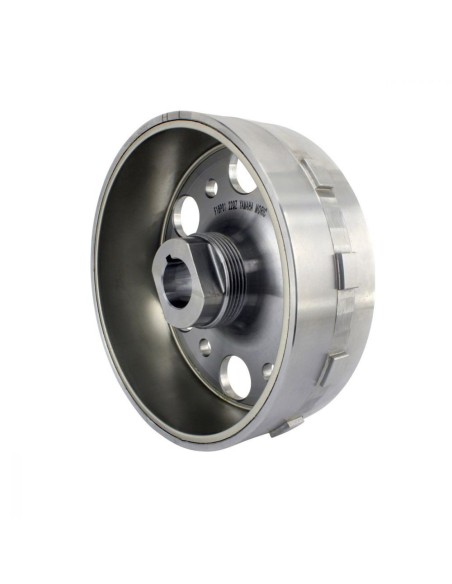

• Specifications of Flywheel:
• Dimensions:
• Exterior Diameter: 110 mm
• Interior Diameter: 99 mm
• Interior Diameter Center Housing: 30 mm
• Exterior Diameter Center Housing: 33 mm
• Thickness (exterior): 31 mm
• Thickness (interior): 38 mm
