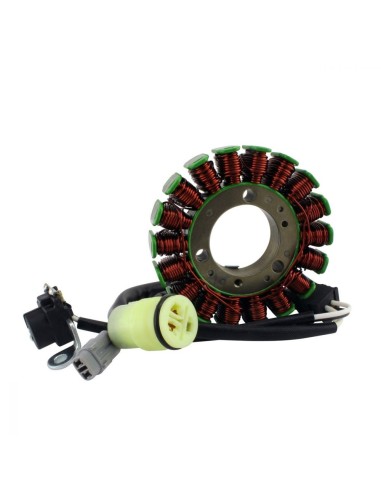

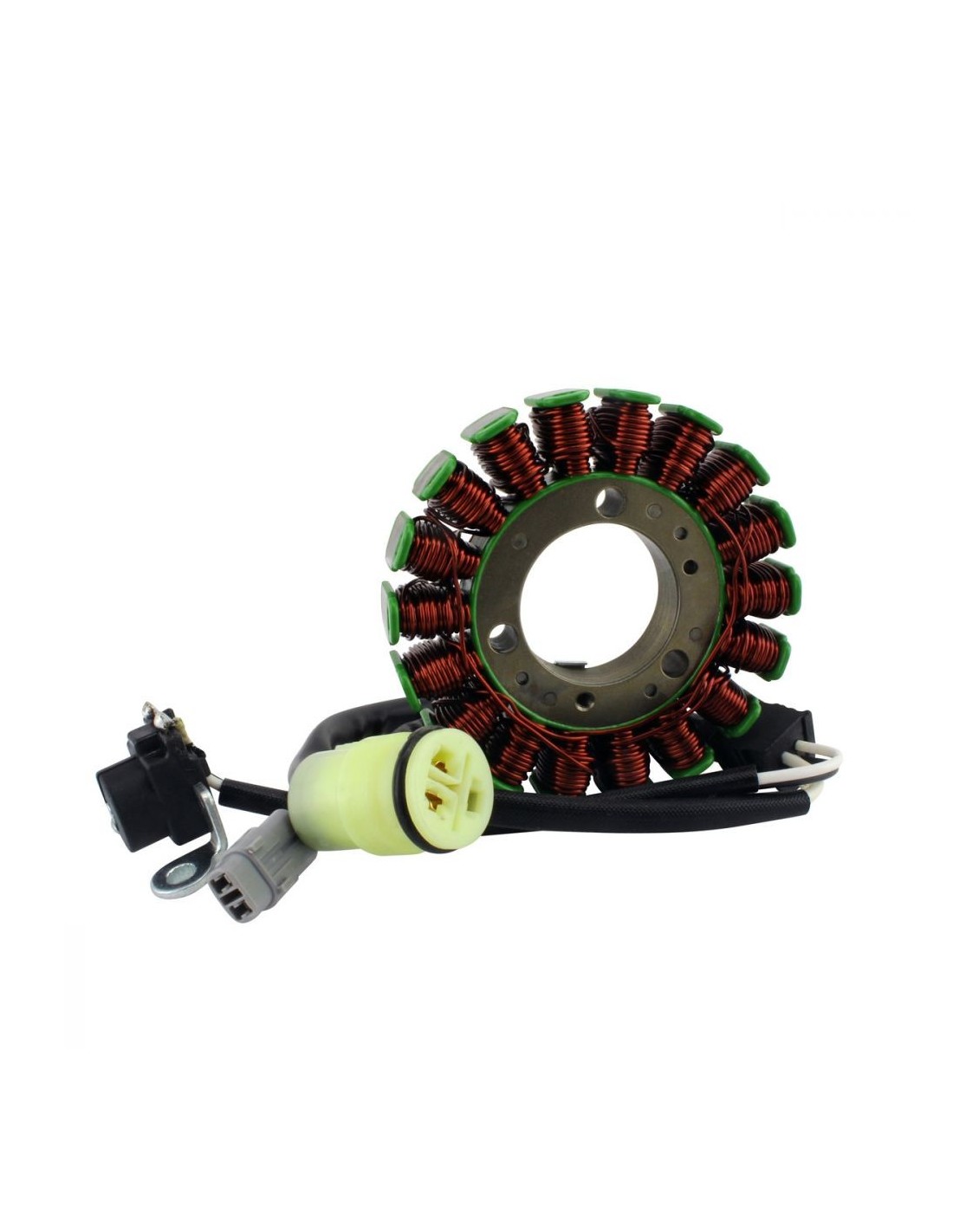

Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00
Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00

Stator 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00

CARMS010-107948
7-8 Days
€220.00
Tax included

OEM 18P-81410-00-00



Stator - Highest grade copper windings, resistant to 200 degrees Celsius

  • 2010-2011 Yamaha YFZ 450 X
    2009-2024 Yamaha YFZ 450 R

    OEM 18P-81410-00-00

    Dimensions:
    Interior diameter: 37 mm
    Exterior diameter: 97 mm

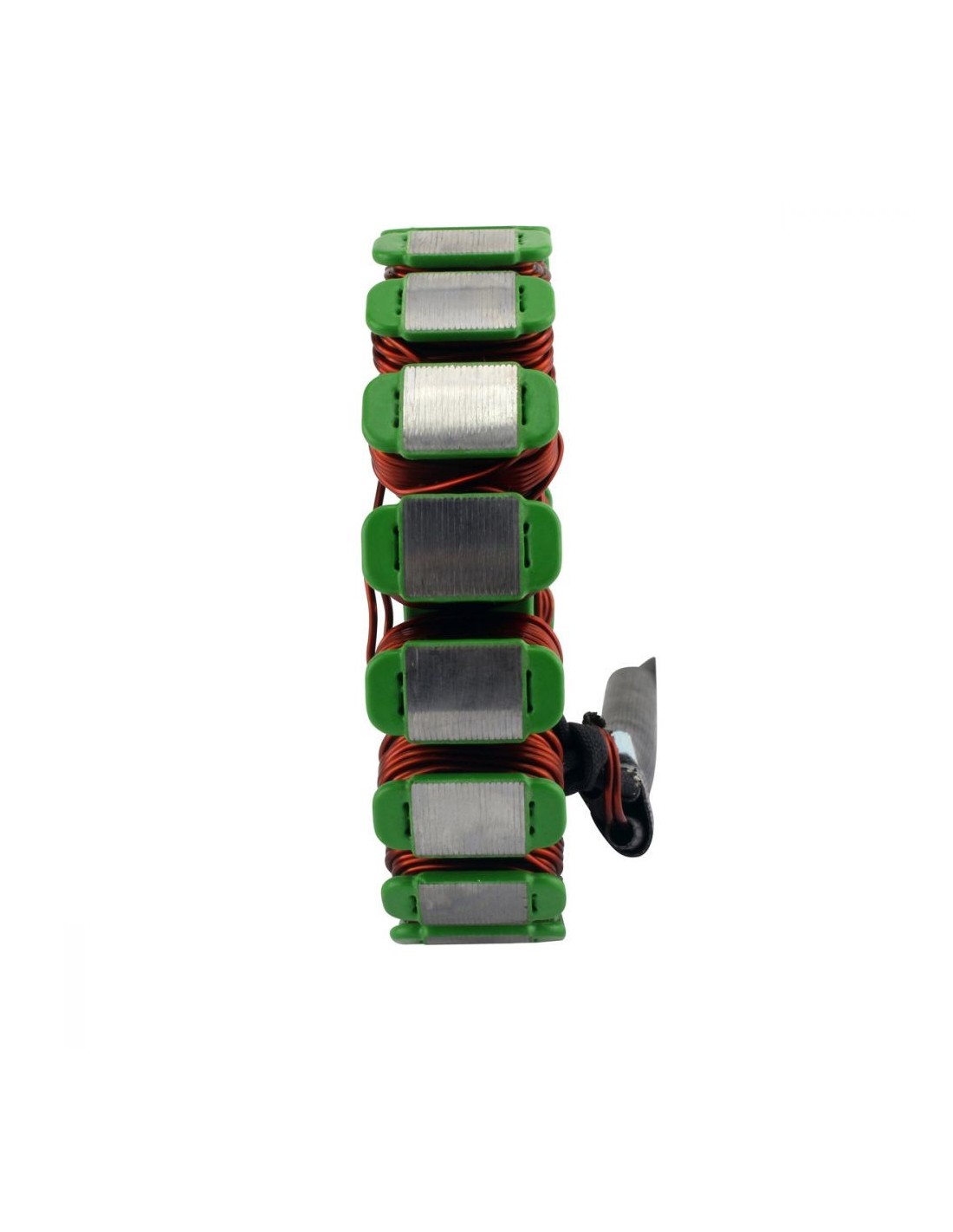

    Thickness: 14 mm
    Length of wires stator to grommet: 160 mm
    Length of wires grommet to plug: 180 mm
    Length of pickup coil's wire to grommet: 180 mm

    Other specifications:
    Number of wires: 5

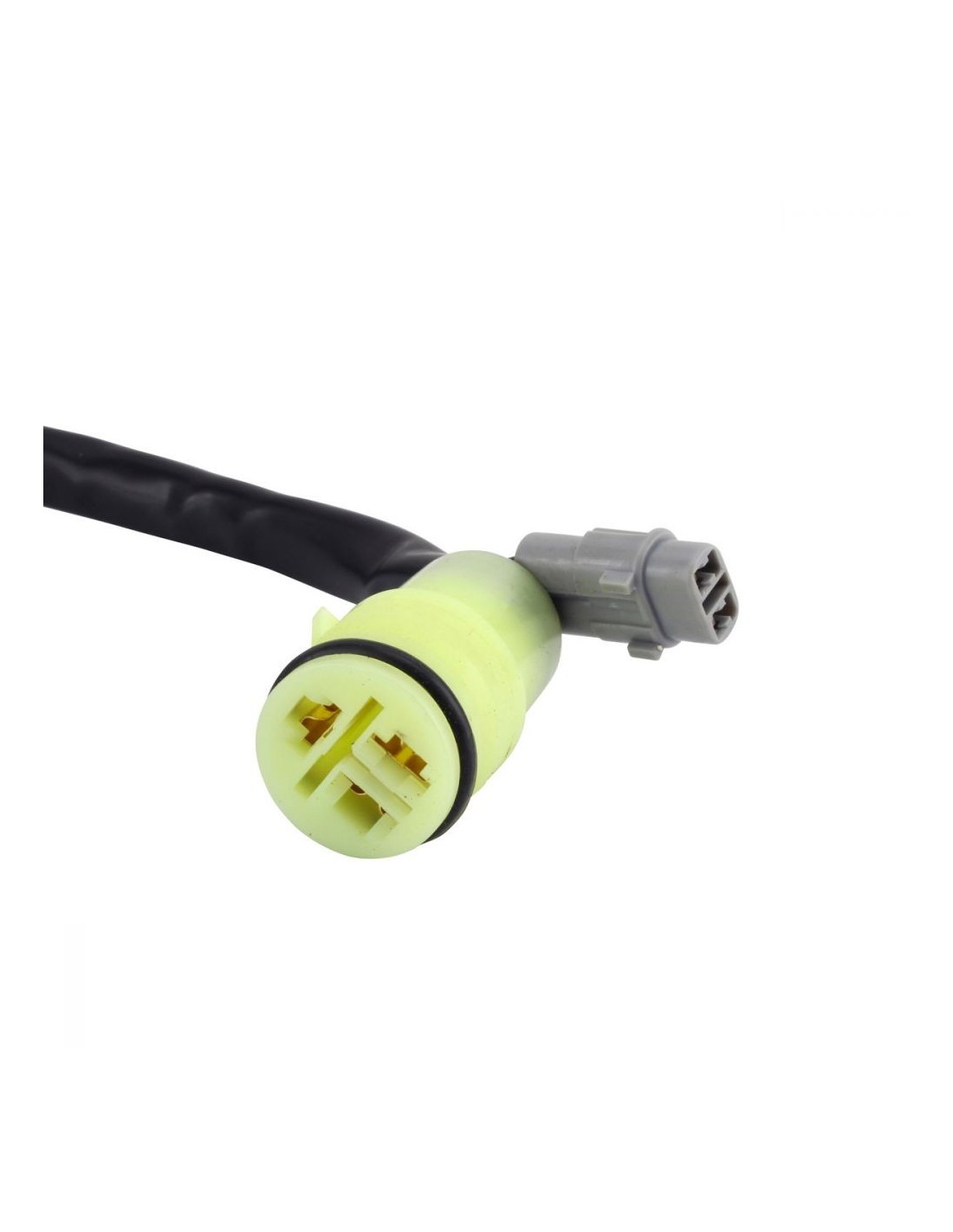

    Number of plugs: 2
    Number of pins: 5
    Number of poles: 18
    Wire to wire resistance:
    Alternator: White to White = 0.2 ohms +-20%
    Alternator: White to ground = O.L

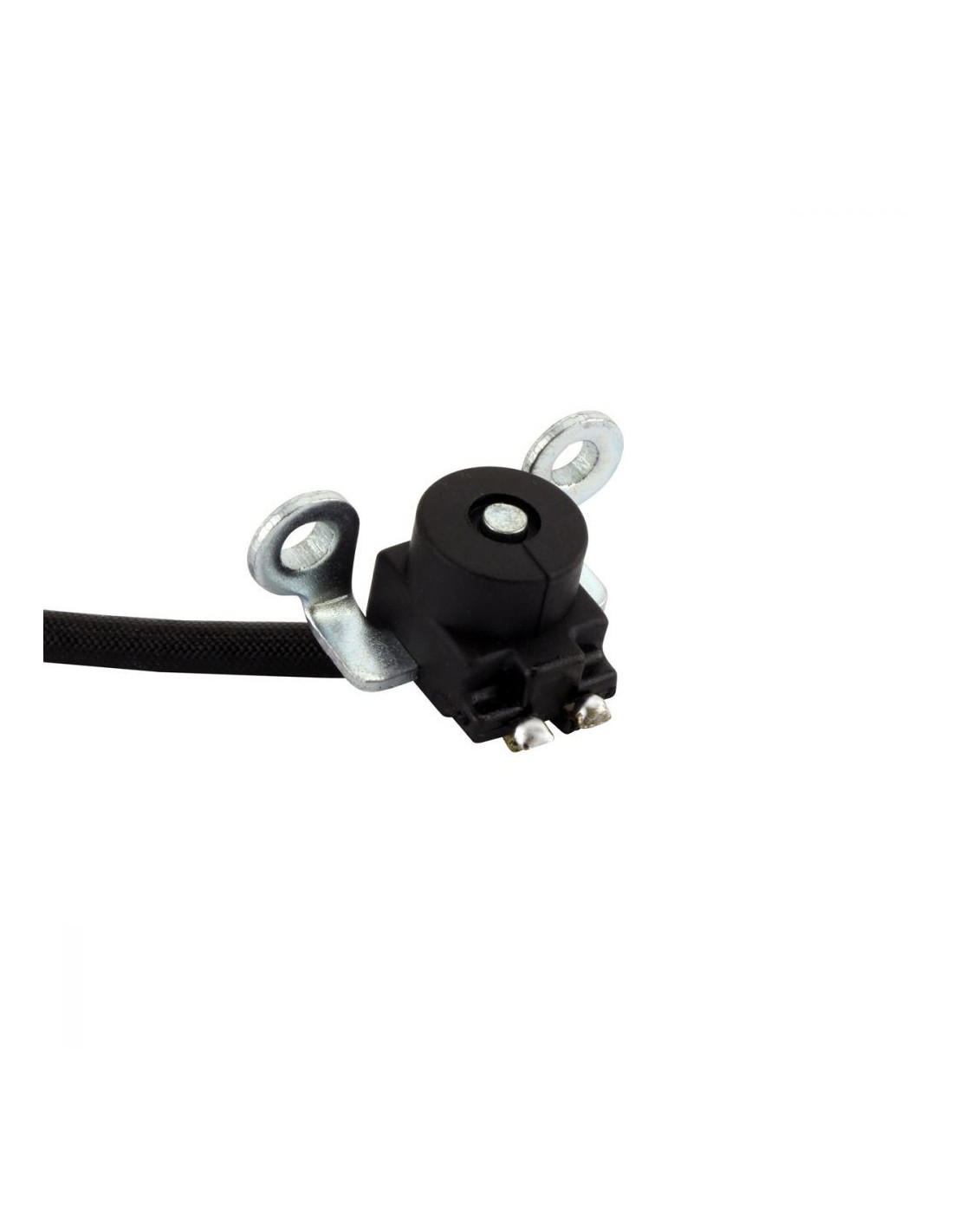

    Pickup: White to Black = 260 ohms +-20%
