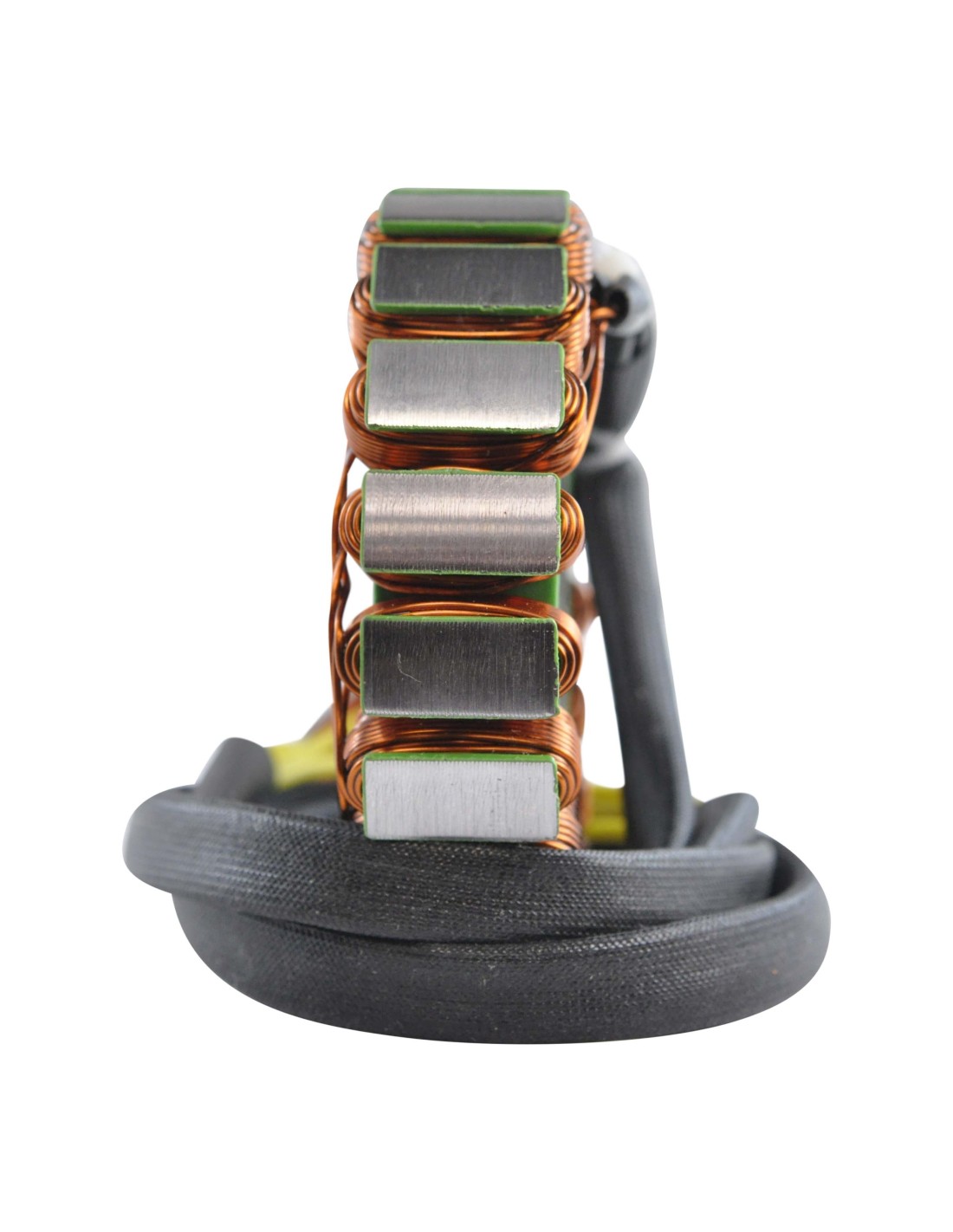

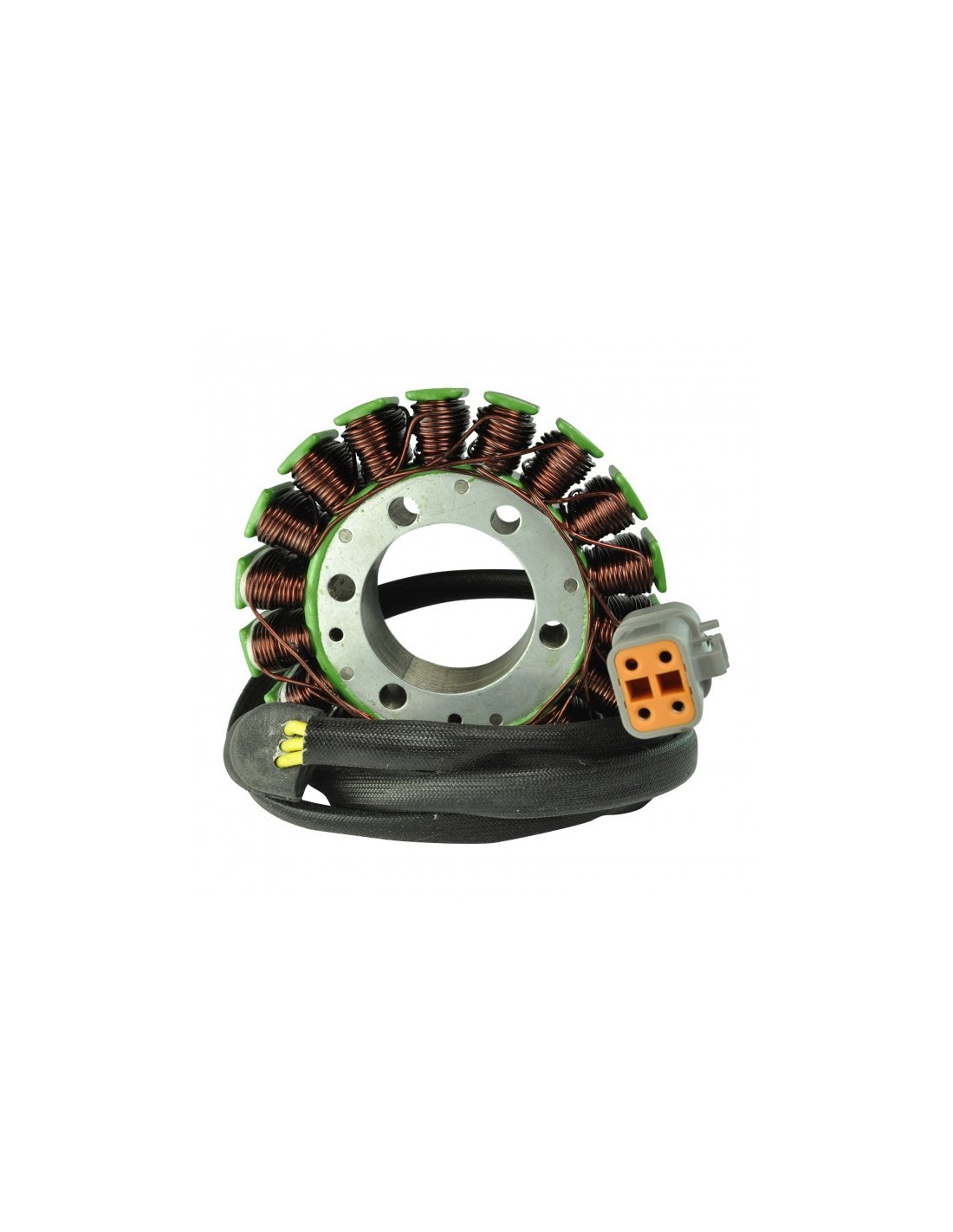

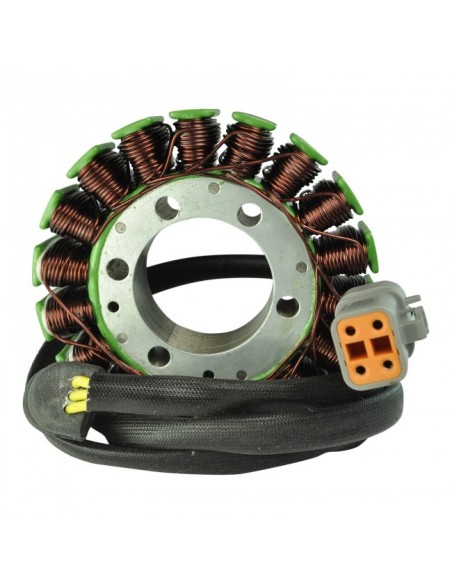

Stator CanAm Outlander 570 Outlander 450 Renegade 570 Renegade 850 OEM 420296907 420684850 420685920

Stator

2023 Can-Am Outlander 570 XMR

2023 Can-Am Outlander 570

2022 Can-am Renegade T 650

2022 Can-am Renegade 850

2022 Can-am Renegade 650

2022 Can-am Renegade 570

2022 Can-am Outlander T Max 650

2022 Can-am Outlander T Max 570

2022 Can-am Outlander T 650

2022 Can-am Outlander T 570

2022 Can-am Outlander Max 650

2022 Can-am Outlander Max 570

2022 Can-am Outlander 650 EFI

2022 Can-am Outlander 570 DPS

2022 Can-am Outlander 570

2021 Can-am Renegade T 650

2021 Can-am Renegade 850

2021 Can-am Renegade 570

2021 Can-am Outlander T Max 650

2021 Can-am Outlander T Max 450

2021 Can-am Outlander T 650

2021 Can-am Outlander T 450

2021 Can-am Outlander Max 650

2021 Can-am Outlander Max 570

2021 Can-am Outlander Max 450 T3 EFI F/C

2021 Can-am Outlander 850

2021 Can-am Outlander 650 EFI

2021 Can-am Outlander 570 DPS

2021 Can-am Outlander 570

2021 Can-am Outlander 450

2020 Can-am Renegade 850

2020 Can-am Renegade 650 T3 EFI F/C

2020 Can-am Renegade 570

2020 Can-am Outlander Max 650 T3 EFI F/C

2020 Can-am Outlander Max 650

2020 Can-am Outlander Max 570

2020 Can-am Outlander Max 450

2020 Can-am Outlander 650 T3 EFI F/C

2020 Can-am Outlander 650 EFI

2020 Can-am Outlander 570

2020 Can-am Outlander 450

2019 Can-am Renegade 850

2019 Can-am Renegade 650 T3 EFI F/C

2019 Can-am Renegade 570

2019 Can-am Renegade 1000R

2019 Can-am Outlander Max 650 T3 EFI F/C

2019 Can-am Outlander Max 650

2019 Can-am Outlander Max 570

2019 Can-am Outlander Max 450 T3 EFI F/C

2019 Can-am Outlander Max 450

2019 Can-am Outlander 650 T3 EFI F/C

2019 Can-am Outlander 650 EFI

2019 Can-am Outlander 570 T3 Pro Nordic EFI L/C

2019 Can-am Outlander 570

2019 Can-am Outlander 450 T3 EFI F/C

2019 Can-am Outlander 450

2018 Can-am Renegade 850

2018 Can-am Renegade 570

2018 Can-am Renegade 1000R

2018 Can-am Outlander Max 650

2018 Can-am Outlander Max 570

2018 Can-am Outlander Max 450

2018 Can-am Outlander 650 XT

2018 Can-am Outlander 650 XMR

2018 Can-am Outlander 650 T3 EFI F/C

2018 Can-am Outlander 650 EFI

2018 Can-am Outlander 650 DPS

2018 Can-am Outlander 570

2018 Can-am Outlander 450 T3 EFI F/C

2018 Can-am Outlander 450

2017 Can-am Renegade 850

2017 Can-am Renegade 570

2017 Can-am Renegade 1000R

2017 Can-am Outlander Max 650

2017 Can-am Outlander Max 570

2017 Can-am Outlander Max 450

2017 Can-am Outlander 650 XT

2017 Can-am Outlander 650 XMR

2017 Can-am Outlander 650 EFI

2017 Can-am Outlander 650 DPS

2017 Can-am Outlander 570

2017 Can-am Outlander 450

2016 Can-am Renegade 850

2016 Can-am Renegade 570

2016 Can-am Renegade 1000R

2016 Can-am Outlander Max 650

2016 Can-am Outlander Max 570

2016 Can-am Outlander L Max 570

2016 Can-am Outlander L Max 450

2016 Can-am Outlander L 570

2016 Can-am Outlander L 450

2016 Can-am Outlander 650 XT

2016 Can-am Outlander 650 XMR

2016 Can-am Outlander 650 EFI

2016 Can-am Outlander 650 DPS

2015 Can-am Renegade 800 R

2015 Can-am Renegade 500

2015 Can-am Renegade 1000

2015 Can-am Outlander Max 800 R

2015 Can-am Outlander Max 650

2015 Can-am Outlander Max 500

2015 Can-am Outlander Max 400

2015 Can-am Outlander L Max 450

2015 Can-am Outlander 800 R

2015 Can-am Outlander 650 XT

2015 Can-am Outlander 650 XMR

2015 Can-am Outlander 650 EFI

2015 Can-am Outlander 650 DPS

2015 Can-am Outlander 500

2015 Can-am Outlander 400

2014 Can-am Renegade 800 R

2014 Can-am Renegade 500

2014 Can-am Renegade 1000

2014 Can-am Outlander Max 650

2014 Can-am Outlander Max 500

2014 Can-am Outlander Max 400

2014 Can-am Outlander 800 R

2014 Can-am Outlander 650 XT

2014 Can-am Outlander 650 XMR

2014 Can-am Outlander 650 EFI

2014 Can-am Outlander 650 DPS

2014 Can-am Outlander 500

2014 Can-am Outlander 400

2013 Can-am Renegade 800 R

2013 Can-am Renegade 500

2013 Can-am Renegade 1000

2013 Can-am Outlander Max 800 R

2013 Can-am Outlander Max 650

2013 Can-am Outlander Max 500

2013 Can-am Outlander Max 400

2013 Can-am Outlander 800 R

2013 Can-am Outlander 650 XT

2013 Can-am Outlander 650 XMR

2013 Can-am Outlander 650 EFI

2013 Can-am Outlander 650 DPS

2013 Can-am Outlander 500

2013 Can-am Outlander 400

2012 Can-am Renegade 800 R

2012 Can-am Renegade 500

2012 Can-am Renegade 1000

2012 Can-am Outlander Max 800 R

2012 Can-am Outlander Max 650

2012 Can-am Outlander Max 500

2012 Can-am Outlander Max 400

2012 Can-am Outlander 800 R

2012 Can-am Outlander 650 XT

2012 Can-am Outlander 650 EFI

2012 Can-am Outlander 500

2012 Can-am Outlander 400

2012 Can-am Outlander 1000

2011 Can-am Renegade 800 R

2011 Can-am Renegade 500

2011 Can-am Outlander Max 800 R

2011 Can-am Outlander Max 650

2011 Can-am Outlander Max 500

2011 Can-am Outlander Max 400

2011 Can-am Outlander 800 R

2011 Can-am Outlander 650 XT-P

2011 Can-am Outlander 650 XT

2011 Can-am Outlander 650 EFI

2011 Can-am Outlander 500

2011 Can-am Outlander 400

2010 Can-am Renegade 800 R

2010 Can-am Renegade 500

2010 Can-am Outlander Max 800 R

2010 Can-am Outlander Max 650

2010 Can-am Outlander Max 500

2010 Can-am Outlander Max 400

2010 Can-am Outlander 800 R

2010 Can-am Outlander 650 XT-P

2010 Can-am Outlander 650 XT

2010 Can-am Outlander 650 EFI

2010 Can-am Outlander 500

2010 Can-am Outlander 400

2009 Can-am Renegade 800 R

2009 Can-am Renegade 500

2009 Can-am Outlander Max 800 R

2009 Can-am Outlander Max 650 XT

2009 Can-am Outlander Max 650

2009 Can-am Outlander Max 500 XT

2009 Can-am Outlander Max 500

2009 Can-am Outlander Max 400

2009 Can-am Outlander 800 R XT

2009 Can-am Outlander 800 R

2009 Can-am Outlander 650 XT

2009 Can-am Outlander 650 EFI

2009 Can-am Outlander 500 XT

2009 Can-am Outlander 500

2009 Can-am Outlander 400

2008 Can-am Renegade X 800

2008 Can-am Renegade 800

2008 Can-am Renegade 500

2008 Can-am Outlander Max 800 XT

2008 Can-am Outlander Max 800

2008 Can-am Outlander Max 650 XT

2008 Can-am Outlander Max 650

2008 Can-am Outlander Max 500 XT

2008 Can-am Outlander Max 500

2008 Can-am Outlander Max 400

2008 Can-am Outlander 800 XT

2008 Can-am Outlander 800 R

2008 Can-am Outlander 800

2008 Can-am Outlander 650 XT

2008 Can-am Outlander 650 EFI

2008 Can-am Outlander 500 XT

2008 Can-am Outlander 500

2008 Can-am Outlander 400

2007 Can-am Renegade 800

2007 Can-am Outlander Max 800 XT

2007 Can-am Outlander Max 800

2007 Can-am Outlander Max 650 XT

2007 Can-am Outlander Max 650

2007 Can-am Outlander Max 500

2007 Can-am Outlander Max 400

2007 Can-am Outlander 800 XT

2007 Can-am Outlander 800 R

2007 Can-am Outlander 800

2007 Can-am Outlander 650 XT

2007 Can-am Outlander 650 EFI

2007 Can-am Outlander 500 XT

2007 Can-am Outlander 500

2007 Can-am Outlander 400

2006 Can-am Outlander Max 800 XT

2006 Can-am Outlander Max 800

2006 Can-am Outlander Max 650 XT

2006 Can-am Outlander Max 650

2006 Can-am Outlander Max 400

2006 Can-am Outlander 800 XT

2006 Can-am Outlander 800 R

2006 Can-am Outlander 800

2006 Can-am Outlander 650 XT

2006 Can-am Outlander 650 EFI

2006 Can-am Outlander 400

2005 Can-am Outlander Max 400

2005 Can-am Outlander 400

2005 Can-am Outlander 330

2003 Can-am Outlander 400

Dimensions:

Interior diameter: 41 mm

Exterior diameter: 104 mm

Thickness: 30 mm Length of wires stator to grommet : 140 mm

Length of wires grommet to plug : 850 mm

Other specifications:

Number of wires: 3

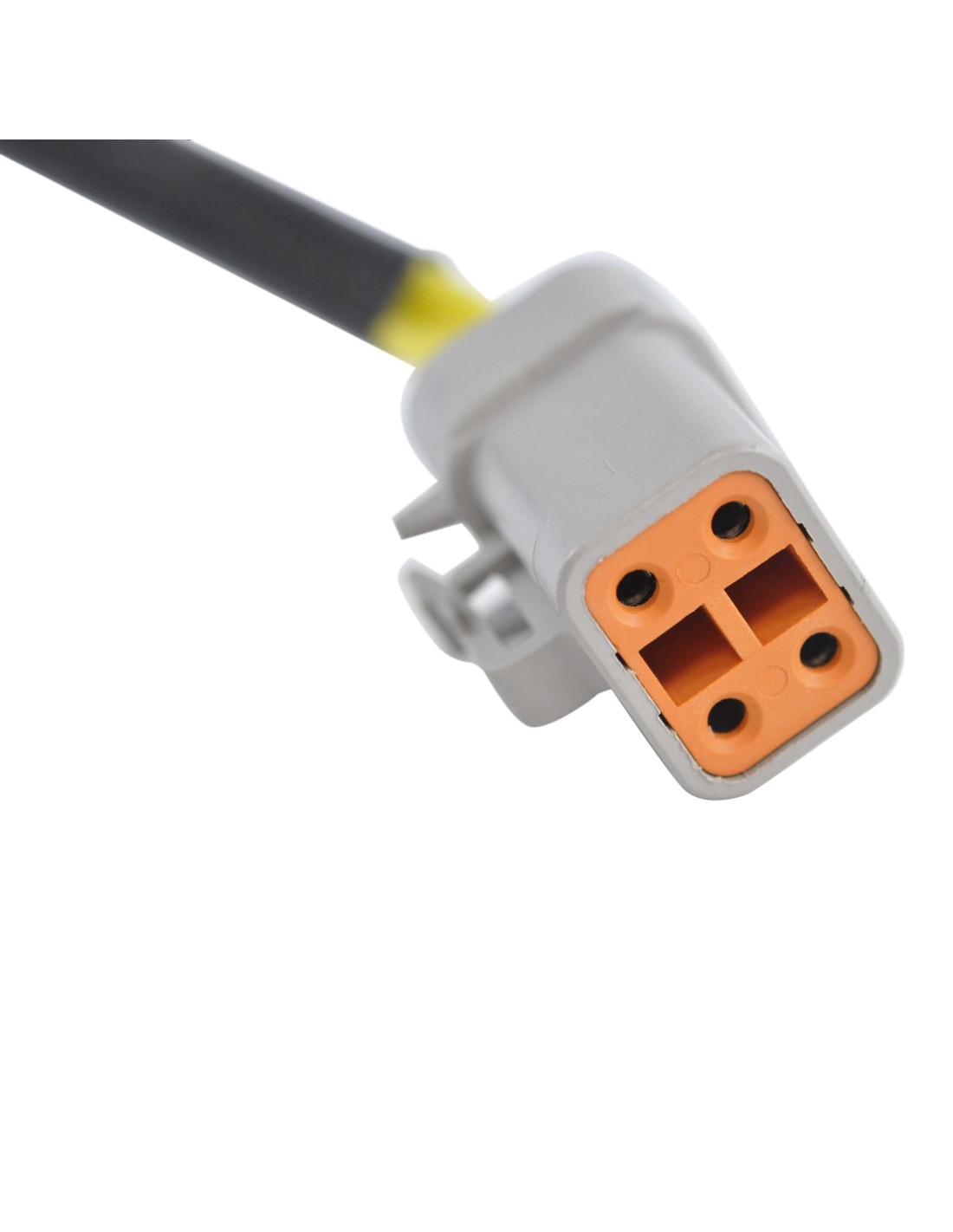

Number of plugs: 1

Number of terminals: 3

Wire to wire resistance:

Alternator: Yellow between each Yellow = 0.4 ohms +/-20%

OEM 420296907
420684850
420296910

• Resistant to 200 degrees Celsius

Please Note There are two possible stators for most of the Outlander models from 2016 through 2019. This stator is only for the standard packages. For all the other packages, please refer to CARMS010-106349
