Failure Detect Series Regulator Arctic Cat Can-Am Ducati Honda Ski-Doo Triumph Yamaha

The new RMSTATOR Failure Detect Regulator brings groundbreaking technology to the powersports market

This part can be used with any 18-pole, 3 phase stator on any vehicle with a Permanent Magnet stator/flywheel charging system.

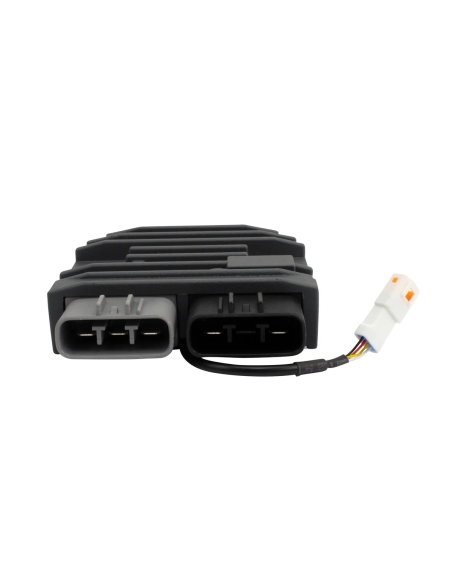

It is a 50Amp Series-Type regulator, with universal type connectors that fit many vehicles.

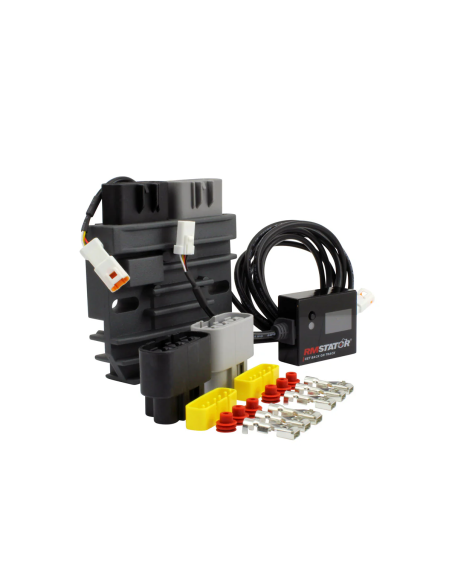

Opposite connectors and terminals are included to convert any vehicle wiring to our system.

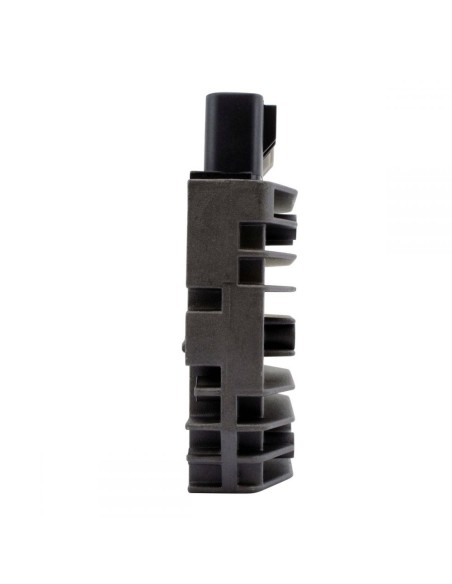

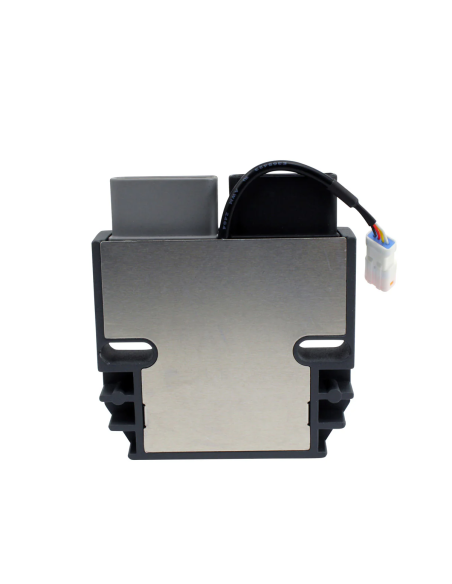

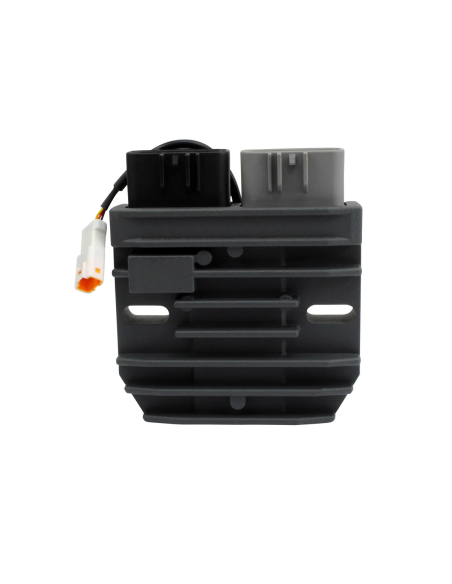

The housing is a very common size, and has slotted mounting holes to work with any mounting type.

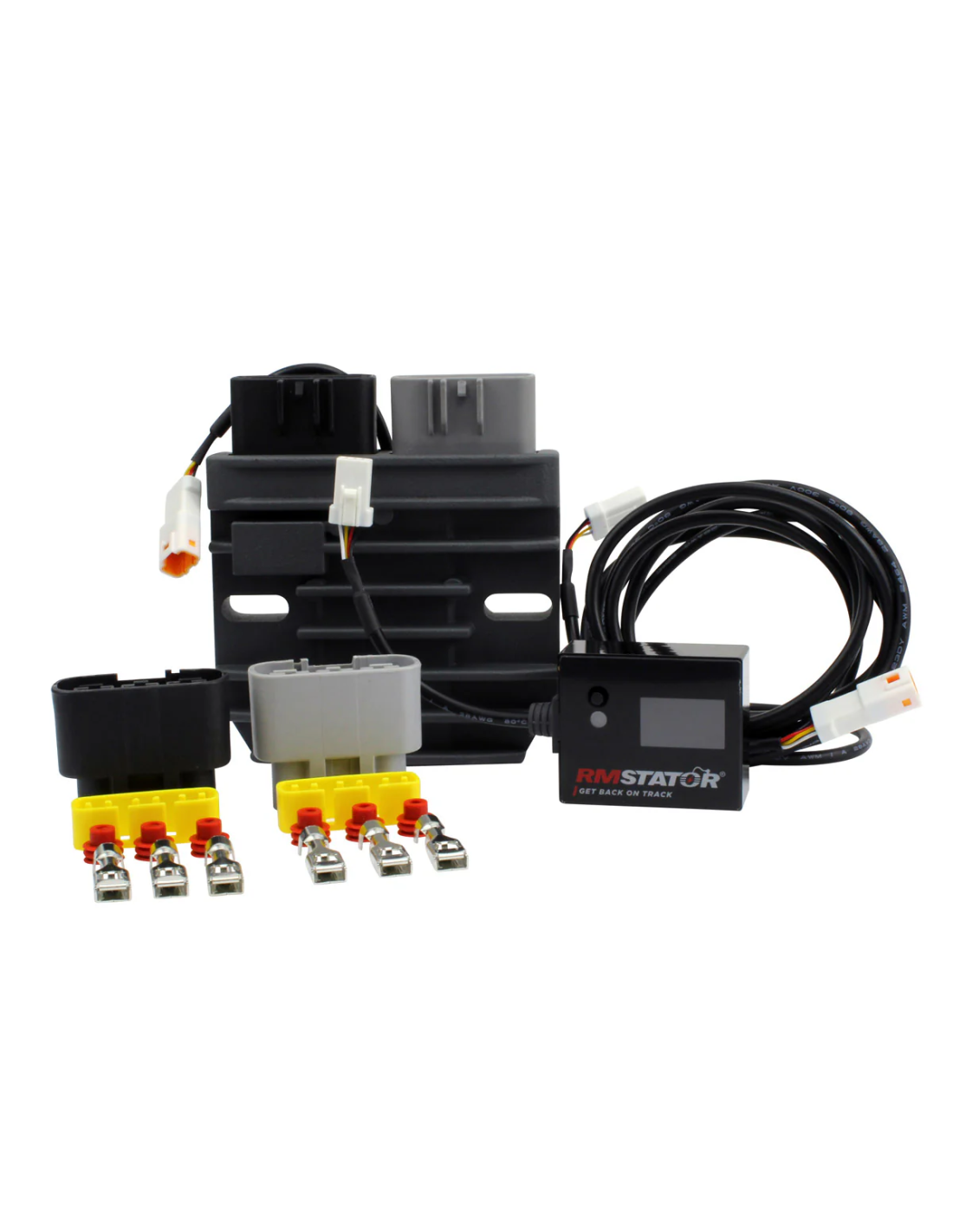

This regulator includes an 1800mm / 6 foot long wiring harness to a special display to mount on your handlebars. This display works as a voltmeter, and has an adjustable voltage regulation point from 14.0 to 15.0 VDC with a simple button press.

RMSTATORS new FAILURE DETECT TECHNOLOGY constantly monitors your charging system for failures, and will notify you of any problems.

Failures detected:

Over Charging: Battery voltage exceeds 16.0VDC

Low Charging: Battery voltage drops below 12.0VDC

Stator Failure: Stator has internally shorted windings, windings shorted to ground, or open windings

High Temperature: Regulator case temperature exceeds 105°C

These warnings will show on the voltmeter display, while flashing a RED warning light, and playing a loud audible alarm.

Dimensions:

Width: 90 mm

Length: 100 mm

Height: 25 mm

Wires length: 1800 mm

Fixation holes center to center: 68 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Number of wires: 4

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C

OEM 278002021 515177325 703500717 710000261 710000870 710000907 710000908 710001103 01AA-177000 6NQV-177000-2800 6NTV-151000-3000 0824-072 0824-078 12 31 7 718 422 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00 21066-0008 21066-0022 21066-0714 21066-0744 21066-0771 32800-26J00 32800-26J01 32800-26J02 31600-HN8-000 31600-HN8-003 31600-HP0-A01 31600-HR0-F01 31600-MGZ-J01 31600-MJF-A01 54040301B T1300470 T1300675

Before installing your new Failure Detect SERIES Voltage Regulator Rectifier :

Check the AC output of the stator

Replace any burned or corroded connectors on stator and regulator rectifier

Check and repair any melted wiring

Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.

Ensure proper installation by a qualified technician to avoid malfunction.
