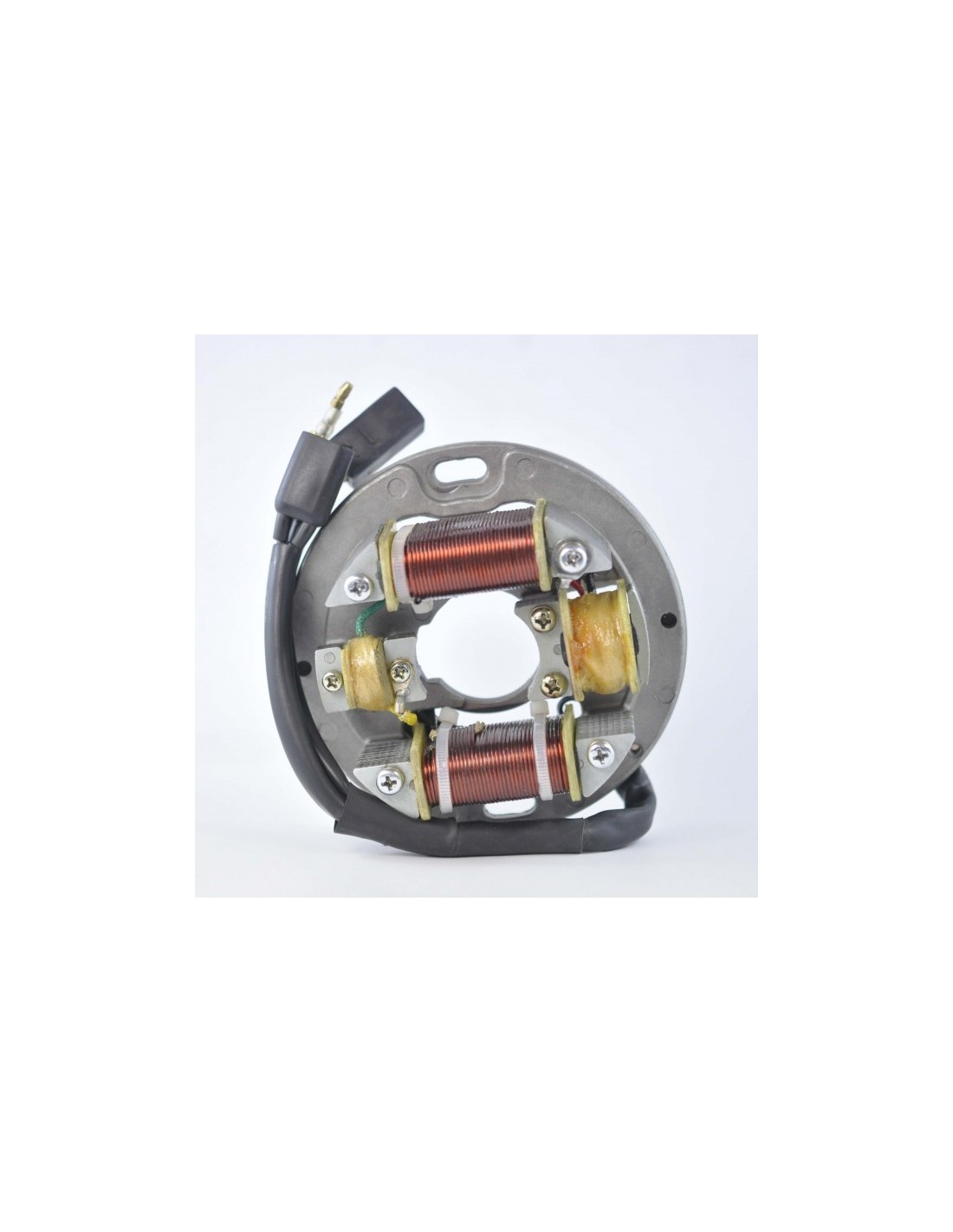

Stator Arctic Cat Cheetah 440 Cougar 440 Jag 440 Panther 440 Prowler 440 ZL440 OEM 3005-325 3003-773 3003-691 3005-338

Stator

1991 Arctic Cat Cheetah 440 Carb L/C Touring
1992 Arctic Cat Cheetah 440 Carb L/C Touring
1992 Arctic Cat Cheetah 440 Carb L/C
1993 Arctic Cat Cheetah 440 Carb L/C

1991 Arctic Cat Cougar 440 Carb L/C 2-Pass
1992 Arctic Cat Cougar 440 Carb L/C 2-Pass
1991 Arctic Cat Cougar 440 Carb L/C
1992 Arctic Cat Cougar 440 Carb L/C
1993 Arctic Cat Cougar 440 Carb L/C
1994 Arctic Cat Cougar 440 Carb L/C

1993 Arctic Cat Cougar Mountain Cat 440 Carb L/C
1994 Arctic Cat Cougar Mountain Cat 440 Carb L/C

1996 Arctic Cat Jag 440 Carb F/C

1990 Arctic Cat Pantera 440 Carb L/C
1991 Arctic Cat Pantera 440 Carb L/C
1992 Arctic Cat Pantera 440 Carb L/C

1996 Arctic Cat Panther 440 Carb L/C 2-Pass

1990 Arctic Cat Prowler 440 Carb L/C
1991 Arctic Cat Prowler 440 Carb L/C
1992 Arctic Cat Prowler 440 Carb L/C
1993 Arctic Cat Prowler 440 Carb L/C

1991 Arctic Cat Prowler 440 Carb L/C 2-Pass
1992 Arctic Cat Prowler 440 Carb L/C 2-Pass
1993 Arctic Cat Prowler 440 Carb L/C 2-Pass

1991 Arctic Cat Prowler 440 Mountain Cat Carb L/C
1992 Arctic Cat Prowler 440 Mountain Cat Carb L/C

1997 Arctic Cat ZL 440 Carb L/C
1998 Arctic Cat ZL 440 Carb L/C
1999 Arctic Cat ZL 440 Carb L/C
2000 Arctic Cat ZL 440 Carb L/C

OEM 3004-060
3005-560
3003-691
3003-773
3005-325
3005-338

Dimensions:
Interior diameter: 38 mm
Exterior diameter: 101 mm
Thickness: 28 mm
Length of wires stator to plug: 210 mm

Other specifications:
Number of wires: 8

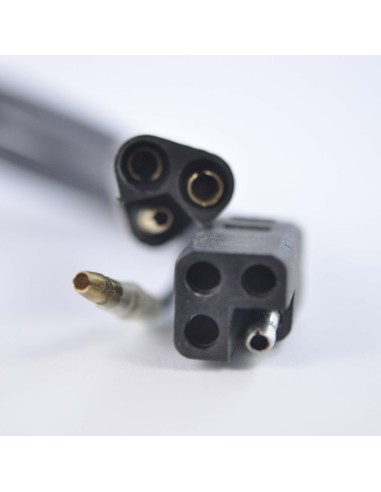

Number of plugs: 3
Number of pins: 8

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.8 ohms +/-20%
Pickup:White/Red to Black/White = 200 ohms +/-20%
Source: Green to Black/White = 1090 ohms+/-20%
