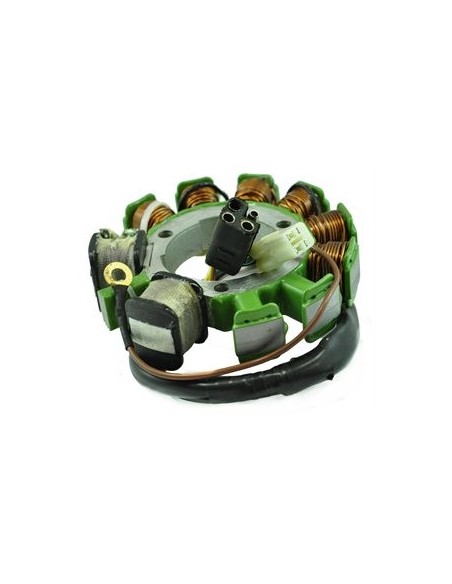

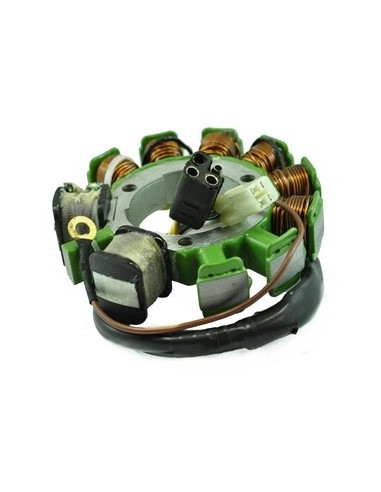

Stator Arctic Cat ZR 440 500 EXT600 Powder Xtreme 600 ZR600 ZRT600 OEM 3004-716 3004-809 3005-043 3005-248 3005

Stator

Triple
1997 Arctic Cat EXT 600 Carb L/C Triple
1998 Arctic Cat EXT 600 Carb L/C Triple
Touring
1998 Arctic Cat EXT 600 Carb L/C Touring
Powder 600 Special Carb L/C
1998 Arctic Cat Powder 600 Special Carb L/C
1999 Arctic Cat Powder 600 Special Carb L/C
2000 Arctic Cat Powder 600 Special Carb L/C
Powder 600 Xtreme Carb L/C
1997 Arctic Cat Powder 600 Xtreme Carb L/C
1998 Arctic Cat Powder 600 Xtreme Carb L/C
Triple Touring 600 Carb L/C
1999 Arctic Cat Triple Touring 600 Carb L/C
2000 Arctic Cat Triple Touring 600 Carb L/C
ZL 500 Carb L/C
1998 Arctic Cat ZL 500 Carb L/C
1999 Arctic Cat ZL 500 Carb L/C
2000 Arctic Cat ZL 500 Carb L/C
ZL 600 Carb L/C
1999 Arctic Cat ZL 600 Carb L/C
2000 Arctic Cat ZL 600 Carb L/C
ZR 440 Carb L/C
1998 Arctic Cat ZR 440 Carb L/C
1999 Arctic Cat ZR 440 Carb L/C
ZR 500 Carb L/C
1998 Arctic Cat ZR 500 Carb L/C
1999 Arctic Cat ZR 500 Carb L/C
2000 Arctic Cat ZR 500 Carb L/C
ZR 600 Carb L/C
1998 Arctic Cat ZR 600 Carb L/C
1999 Arctic Cat ZR 600 Carb L/C
2000 Arctic Cat ZR 600 Carb L/C
LE
1999 Arctic Cat ZR 600 Carb L/C LE
ZRT 600 Carb L/C
1995 Arctic Cat ZRT 600 Carb L/C
1996 Arctic Cat ZRT 600 Carb L/C
1997 Arctic Cat ZRT 600 Carb L/C
1998 Arctic Cat ZRT 600 Carb L/C
1999 Arctic Cat ZRT 600 Carb L/C
2000 Arctic Cat ZRT 600 Carb L/C

OEM
3004-716
3004-809
3005-043
3005-248
3005-317
3005-566

Dimensions :
Interior diameter : 51mm
Exterior diameter : 115mm
Thickness : 15mm
Length of wires stator to plug : 250mm

Other specifications :

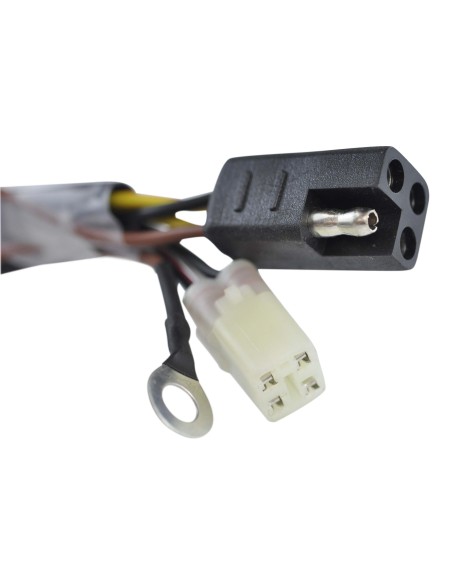

Number of wires : 8
Number of plugs : 2
Number of pins : 9

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4ohms +/-20%
Source : Green to White = 450 ohms +/-20%
Source 2 : Black/Red to Green = 45ohms +/-20%
