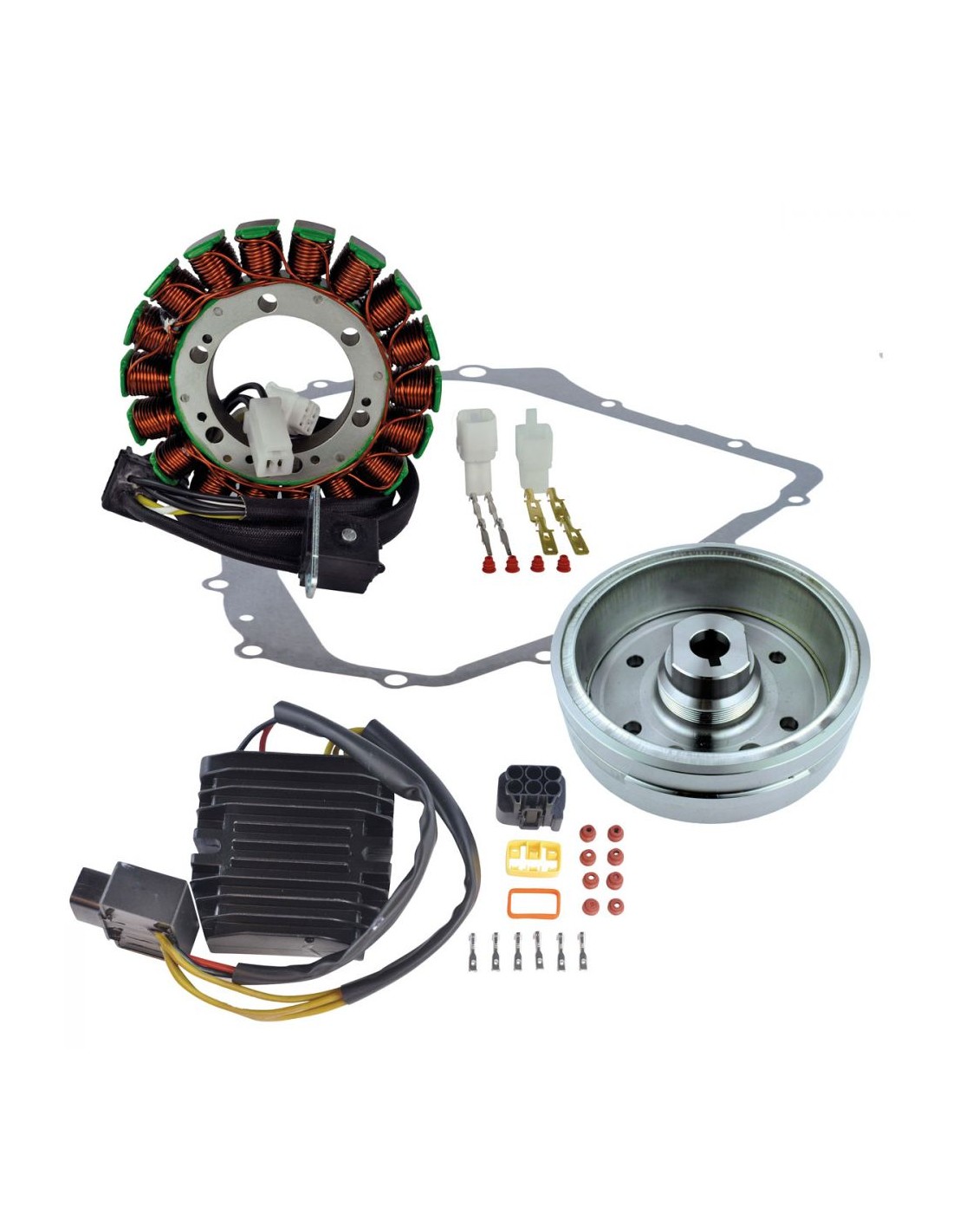

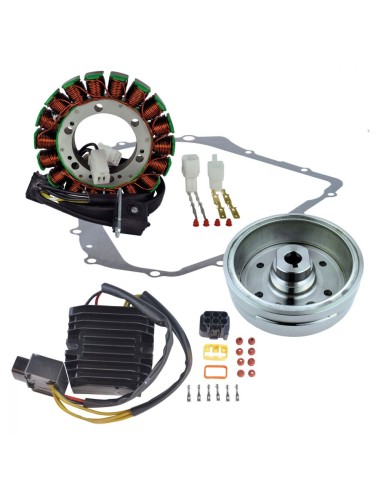

Kit Stator Rotor Regulator Rectifier Mosfet Cover Gasket Suzuki LTA400 Eiger OEM 32101-38F00 32102-38F00 32102-38F01

Kit Stator Rotor Regulator Rectifier Mosfet Cover Gasket Suzuki LTA400 Eiger OEM 32101-38F00 32102-38F00 32102-38F01

CARM23043
7-8 Days
€423.00 €475.00 -€52.00
Tax included

OEM 32101-38F00 32102-38F00 32102-38F01


  • Kit Stator Rotor Regulator Rectifier Mosfet Cover Gasket Suzuki LTA400 Eiger

  • OEM 32101-38F00 32102-38F00 32102-38F01

  • 2007 Suzuki LTA 400 Eiger
  • 2006 Suzuki LTA 400 Eiger
  • 2005 Suzuki LTA 400 Eiger
  • 2004 Suzuki LTA 400 Eiger
  • 2003 Suzuki LTA 400 Eiger
  • 2002 Suzuki LTA 400 Eiger

    The gasket will not fit LTF 400 Eiger models, but only the LTA 400 Eiger. The stator and the flywheel will fit both models.


  • Stator Resistant to 200 degrees Celsius

  • Stator Dimensions:
  • Interior diameter: 53 mm
  • Exterior diameter: 119 mm
  • Thickness: 15 mm
  • Other specifications:
  • Number of wires: 7
  • Number of plugs: 4
  • Number of pins: 7
  • Wire to wire resistance:
  • Alternator : White Between each White = 0.4 ohms+/-20%
  • Alternator : White to Ground = O.L. ON DISPLAY
  • Pick up Coil : Blue to green = 200 ohms+/- 20%
  • Position Sensor :White to yellow = 0.2 ohms+/- 20%
  • Mosfet Voltage Regulator Rectifier :
  • Width : 93mm
  • Length : 102mm
  • Height: 27mm
  • Fixation holes center to center : 72mm
  • Other specifications :
  • Number of plugs : 1
  • Number of pins : 6
  • Minimum Charging Voltage: 14.5V +/- 0.5V
  • Maximum Charging Current: 50A/500W
  • Open Circuit Voltage: <15V
  • Operation Temperature: -20⁰ to 85⁰
  • Flywheel
  • Dimensions :
  • Exterior Diameter: 143 mm
  • Interior Diameter: 120 mm
  • Interior Diameter Center Housing: 18 mm
  • Exterior Diameter Center Housing: 42 mm
  • Thickness (exterior): 12 mm
  • Thickness (interior): 13 mm
