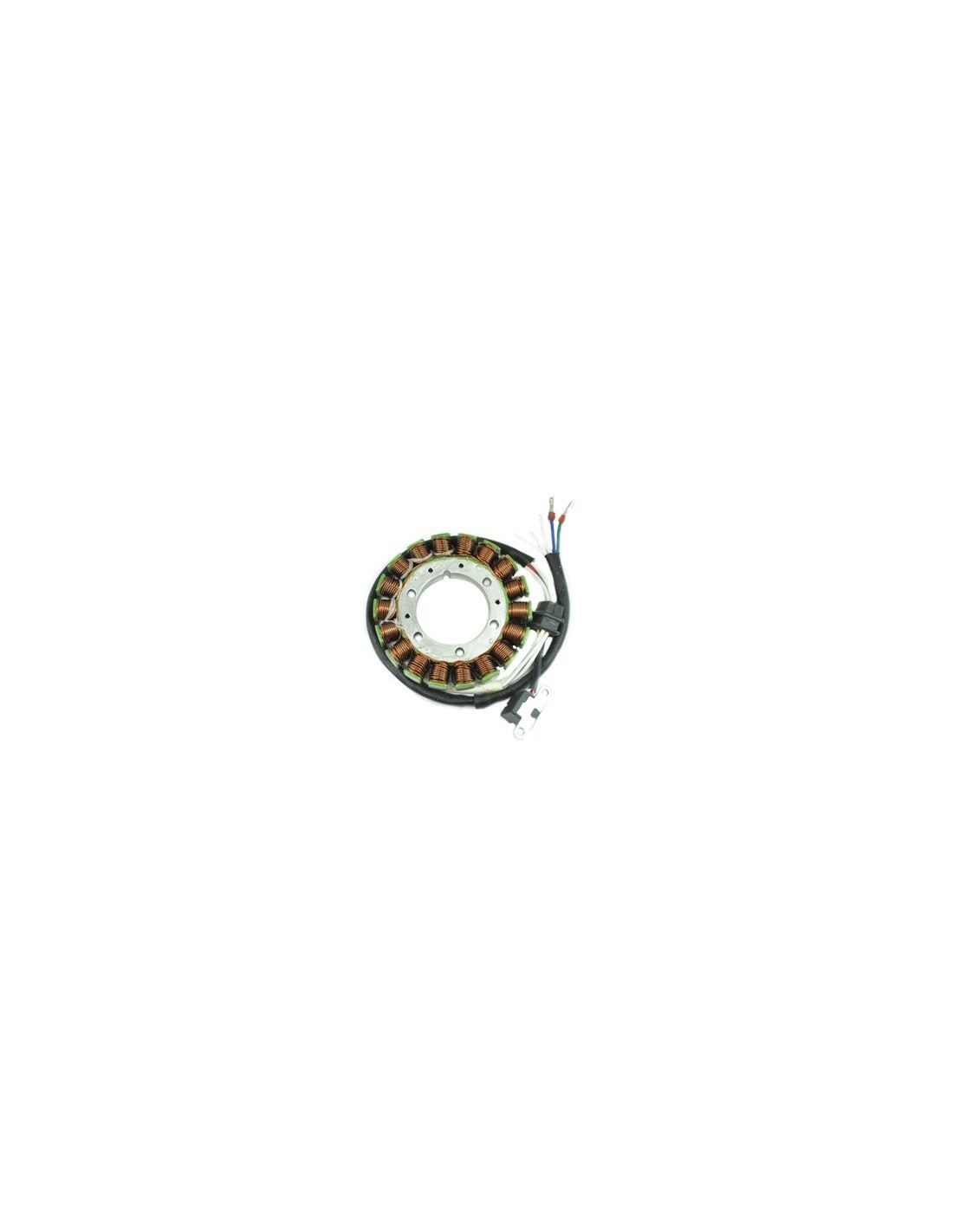

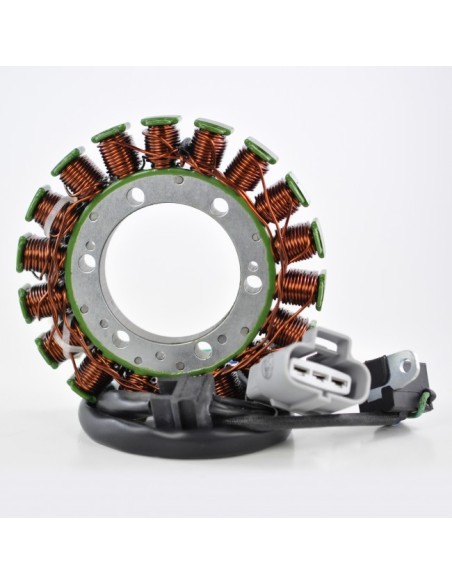

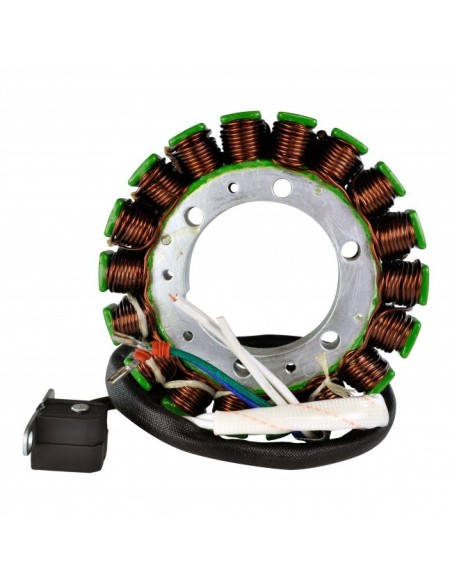

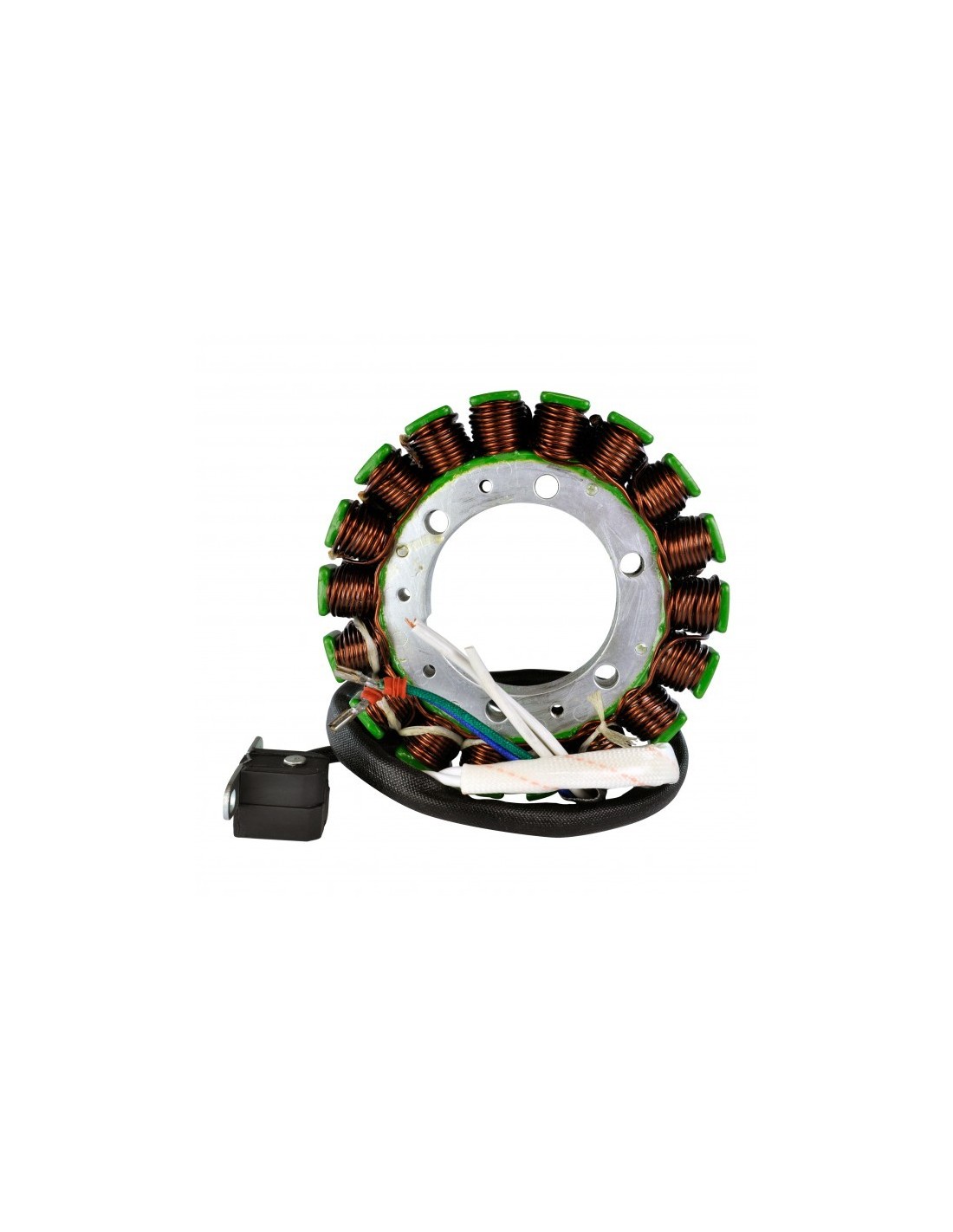

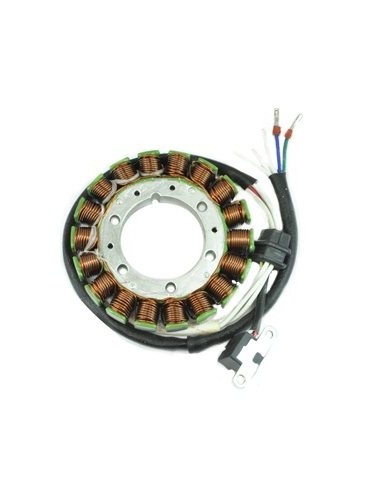

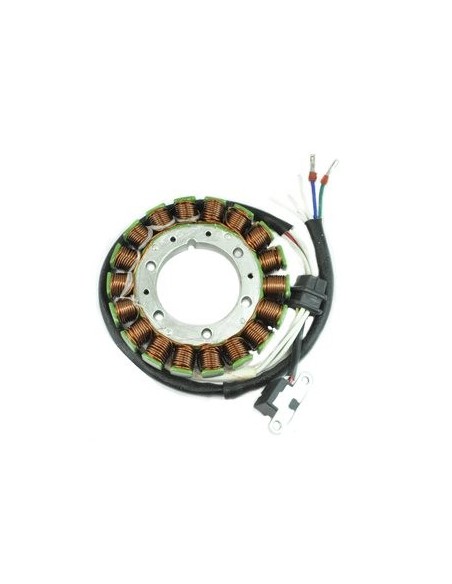

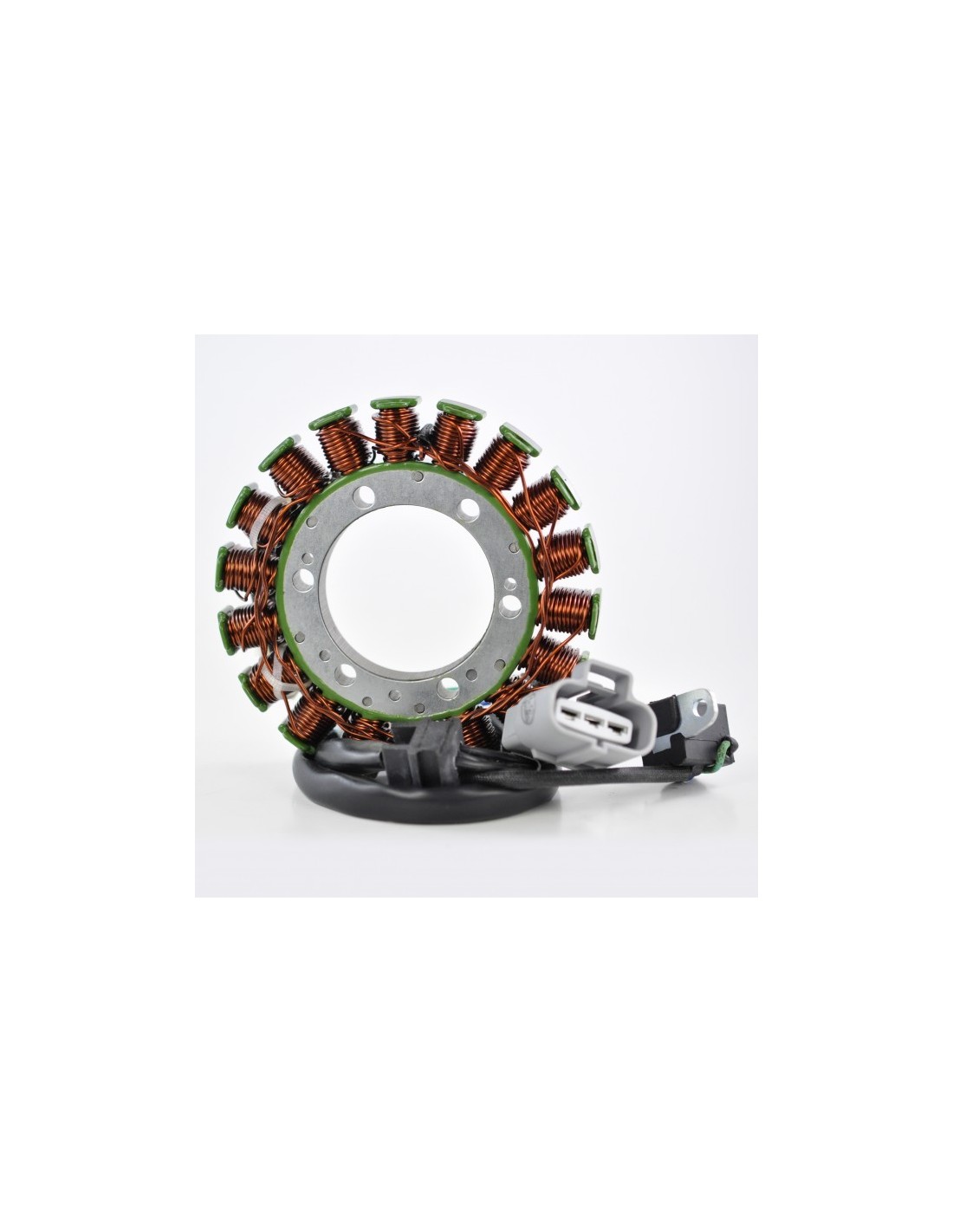

Stator Suzuki LTA400 KingQuad LTF400 KingQuad OEM 32101-27H00 32101-27H10

Stator


2008-2024 Suzuki LTA 400 KingQuad Automatic
2008-2024 Suzuki LTF 400 KingQuad 400FS 4x4 Manual

OEM
32101-27H00
32101-27H10

Dimensions:

Interior diameter: 53mm

Exterior diameter: 118mm

Thickness: 15mm

Length of wires stator to grommet: 112mm

Length of wires grommet to plug: 380mm

Length of pickup coil's wire to grommet: 50mm

Other specifications:

Number of wires: 5

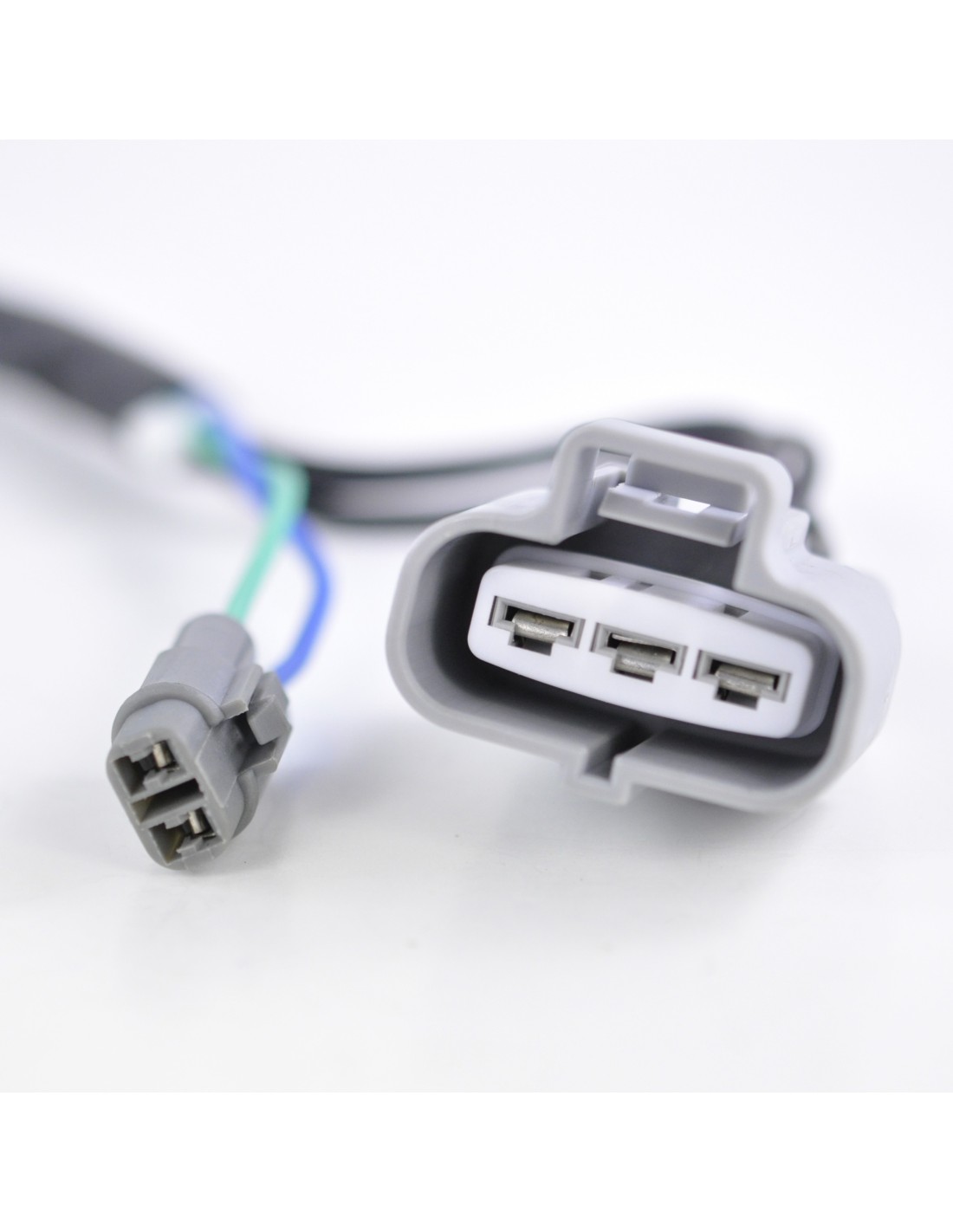

Number of plugs: 2

Number of pins: 5

Wire to wire resistance:

Alternator: Black between each Black = 0.4ohms +/-20%

Pickup: Blue to Green = 196ohms =+/-20%
