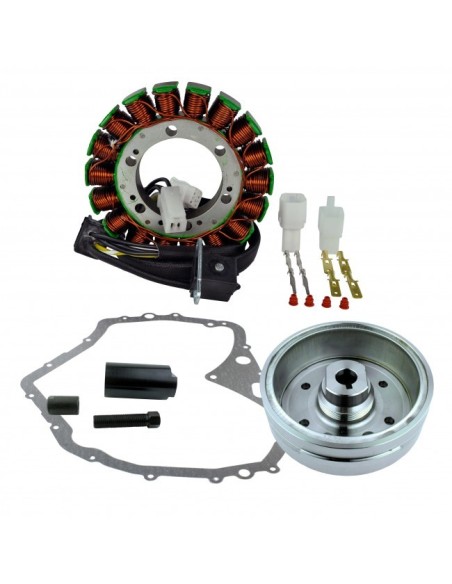

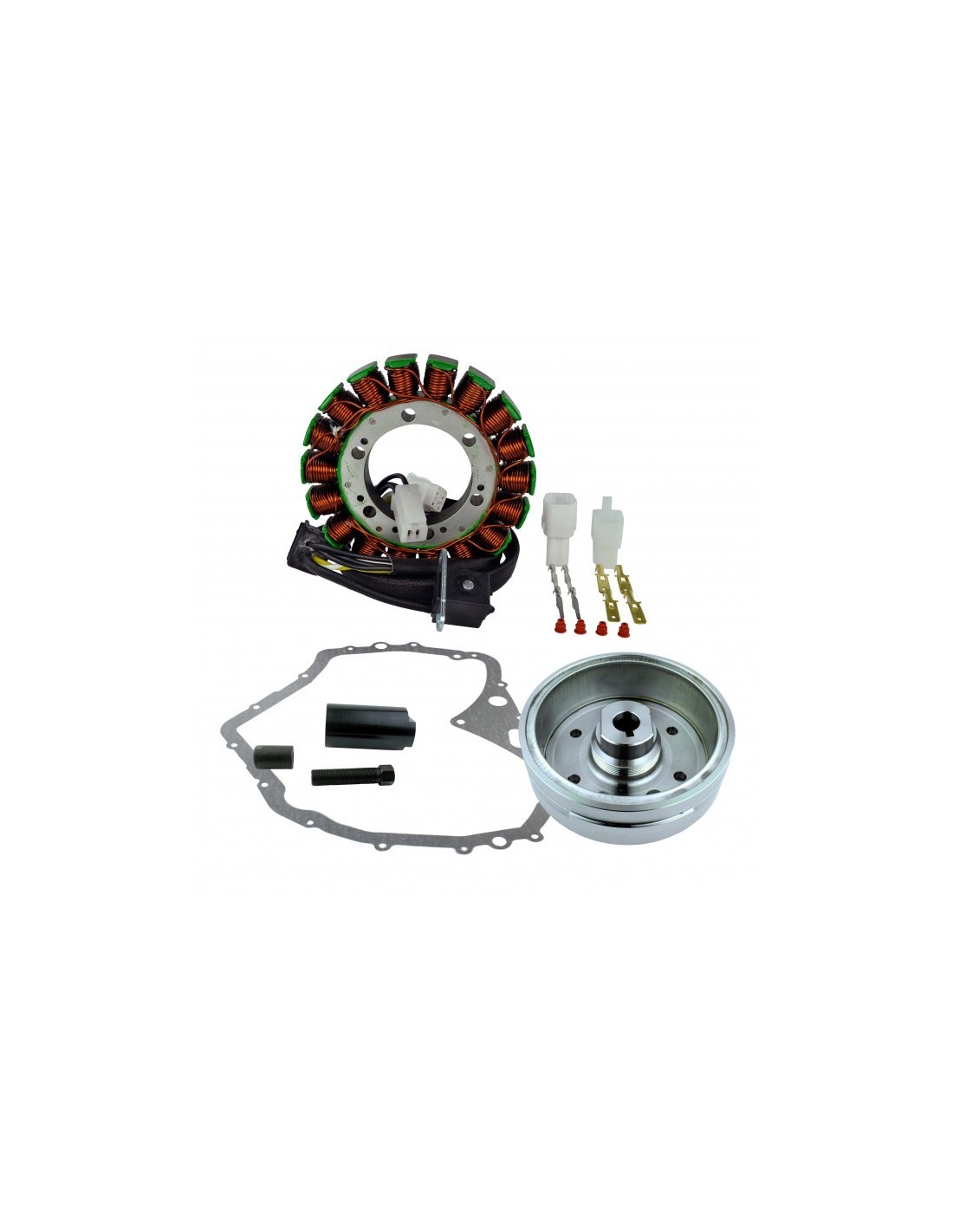

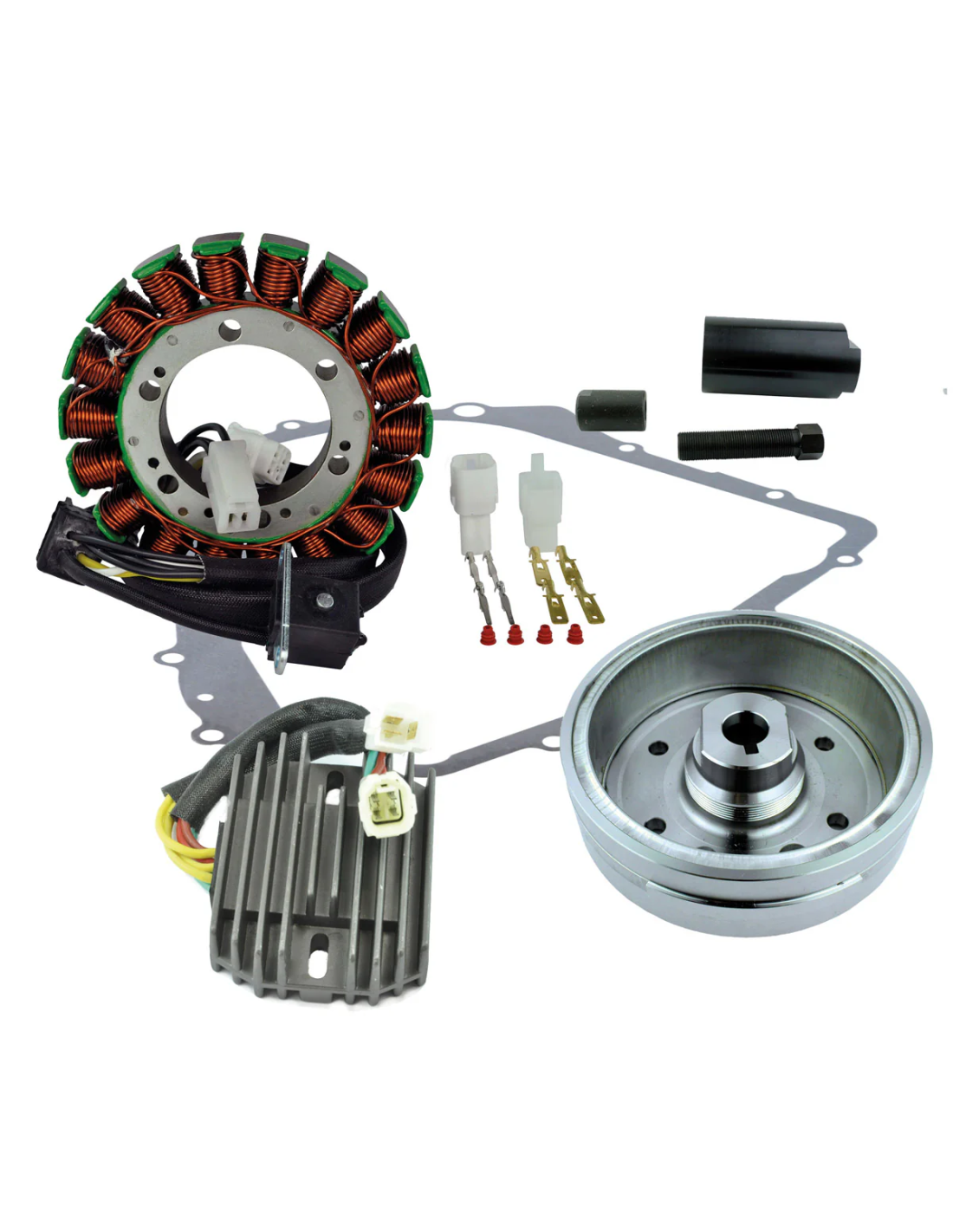

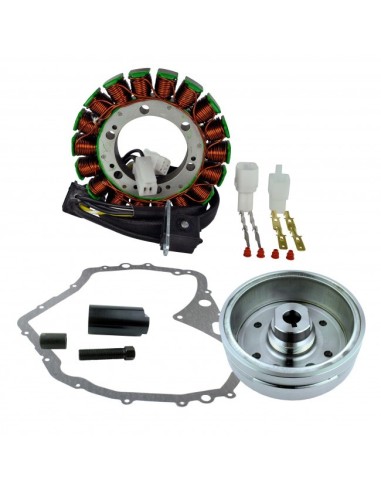

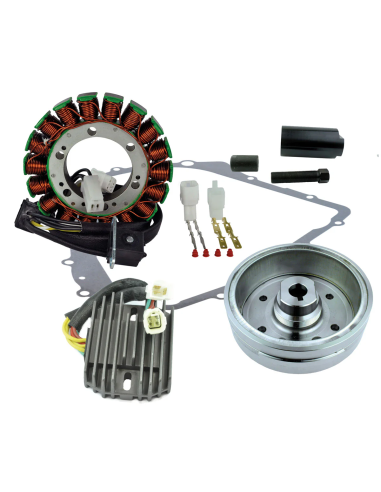

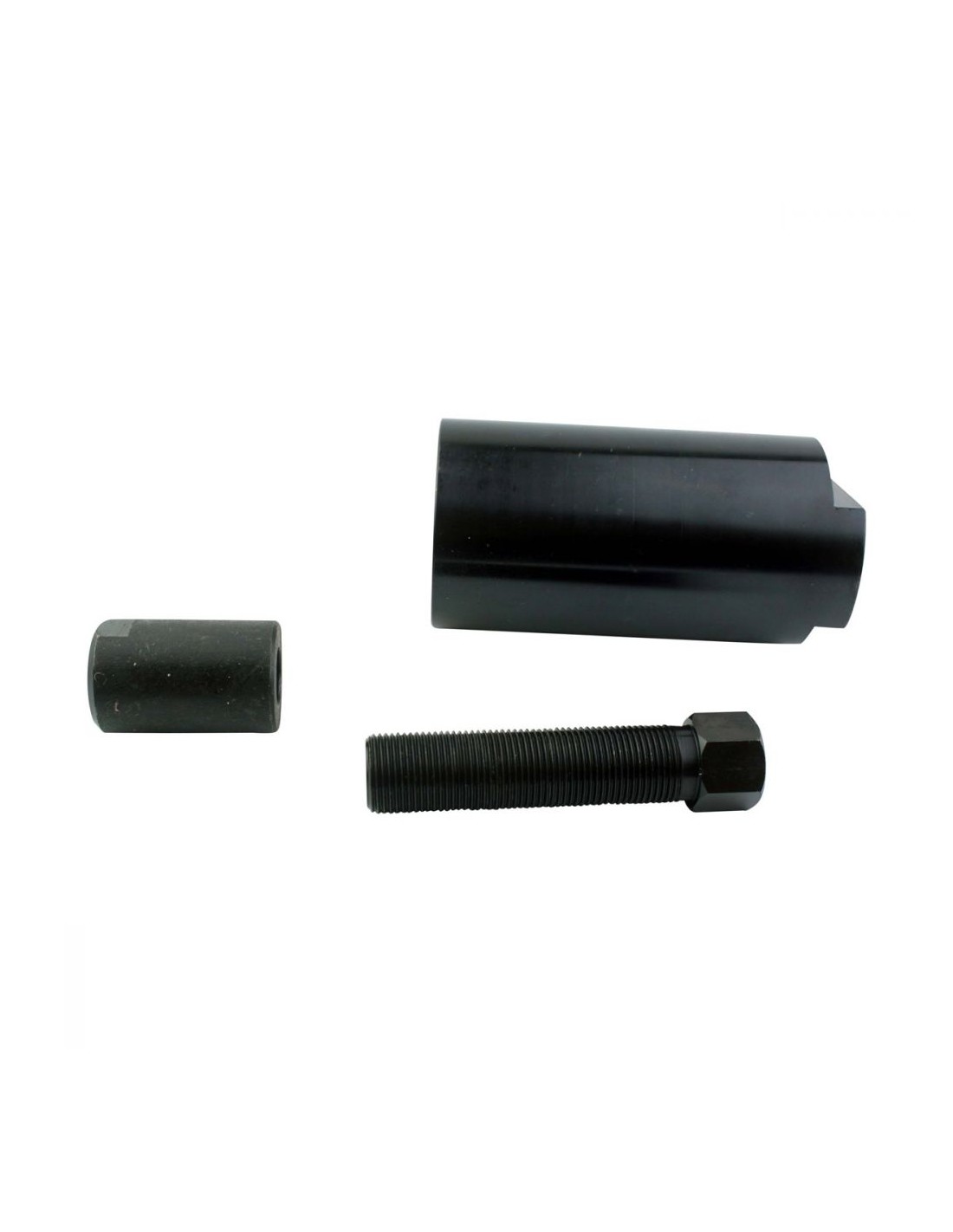

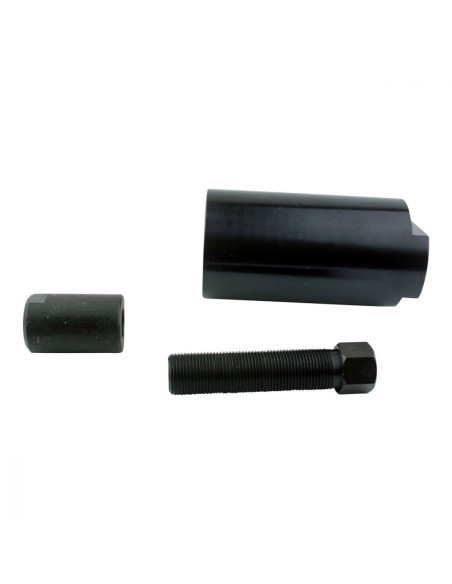

Kit Stator Magneto Flywheel Stator Regulator Arctic Cat 375 400 Automatic TRV TBX 400 OEM 0802-037 3430-053 3430-054 3430-071

• Kit Stator Magneto Flywheel Stator Cover Gasket Regulator
• 2007 Arctic Cat TRV 400
• 2007 Arctic Cat 400 Automatic
• 2006 Arctic Cat TRV 400
• 2006 Arctic Cat 400 Automatic
• 2006 Arctic Cat TBX 400
• 2005 Arctic Cat 400 Automatic
• 2005 Arctic Cat TBX 400
• 2004 Arctic Cat 400 Automatic
• 2004 Arctic Cat TBX 400
• 2003 Arctic Cat 400 Automatic
• 2002 Arctic Cat 375 Automatic

OEM 0802-037 3430-053 3430-054 3430-071

• Stator Resistant to 200 degrees Celsius

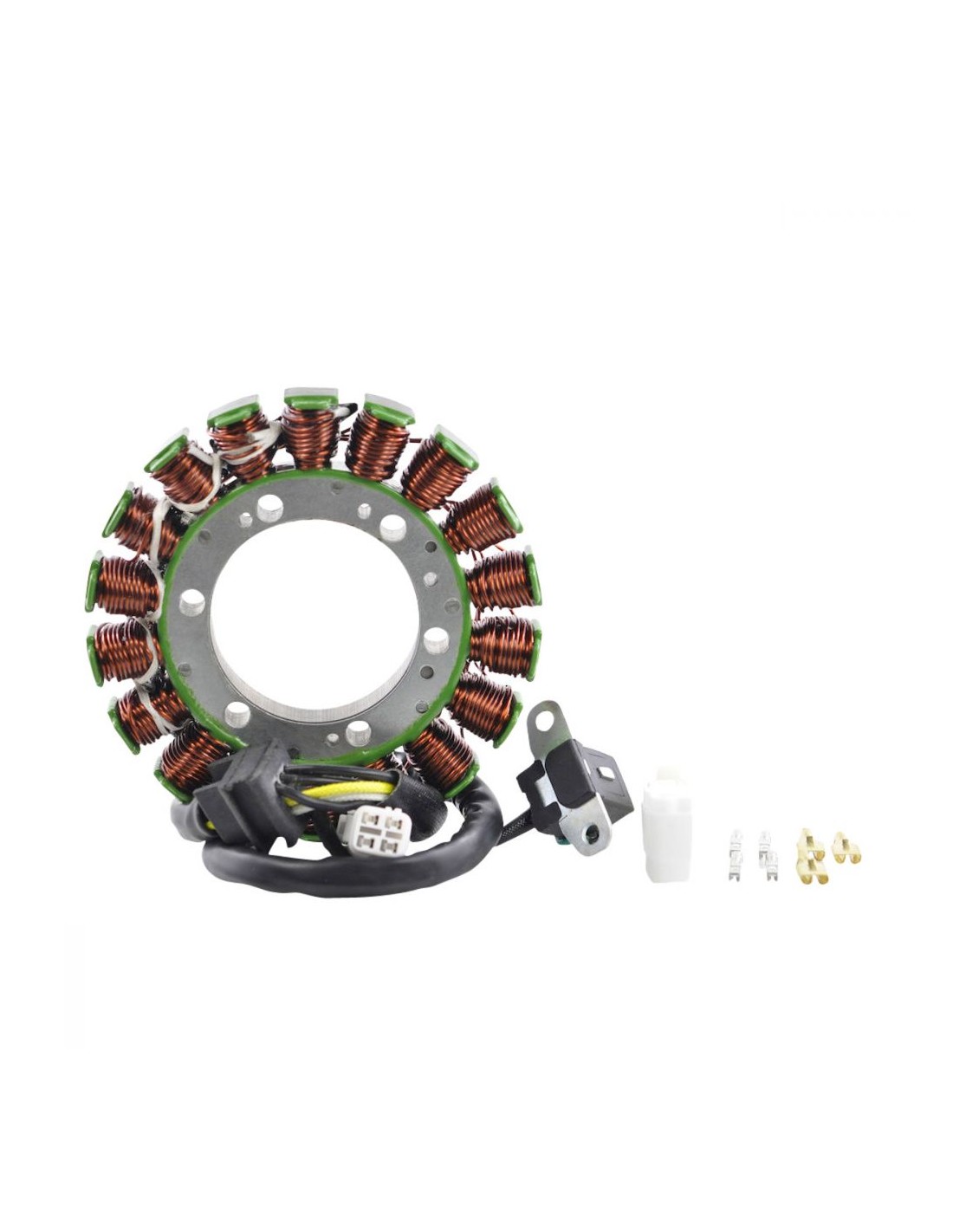

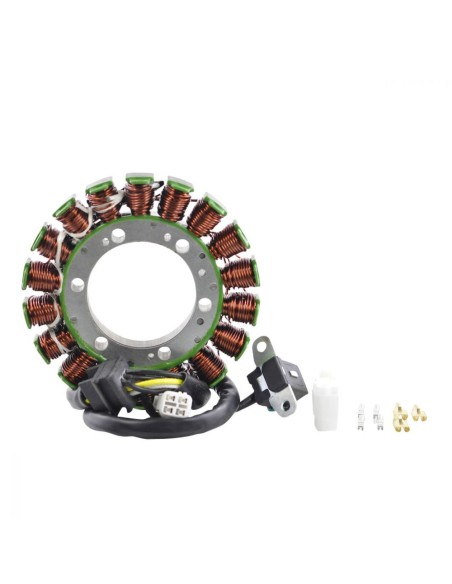

• Stator:
• Dimensions:
• Interior diameter: 53 mm
• Exterior diameter: 119 mm
• Thickness: 15 mm
• Other specifications:

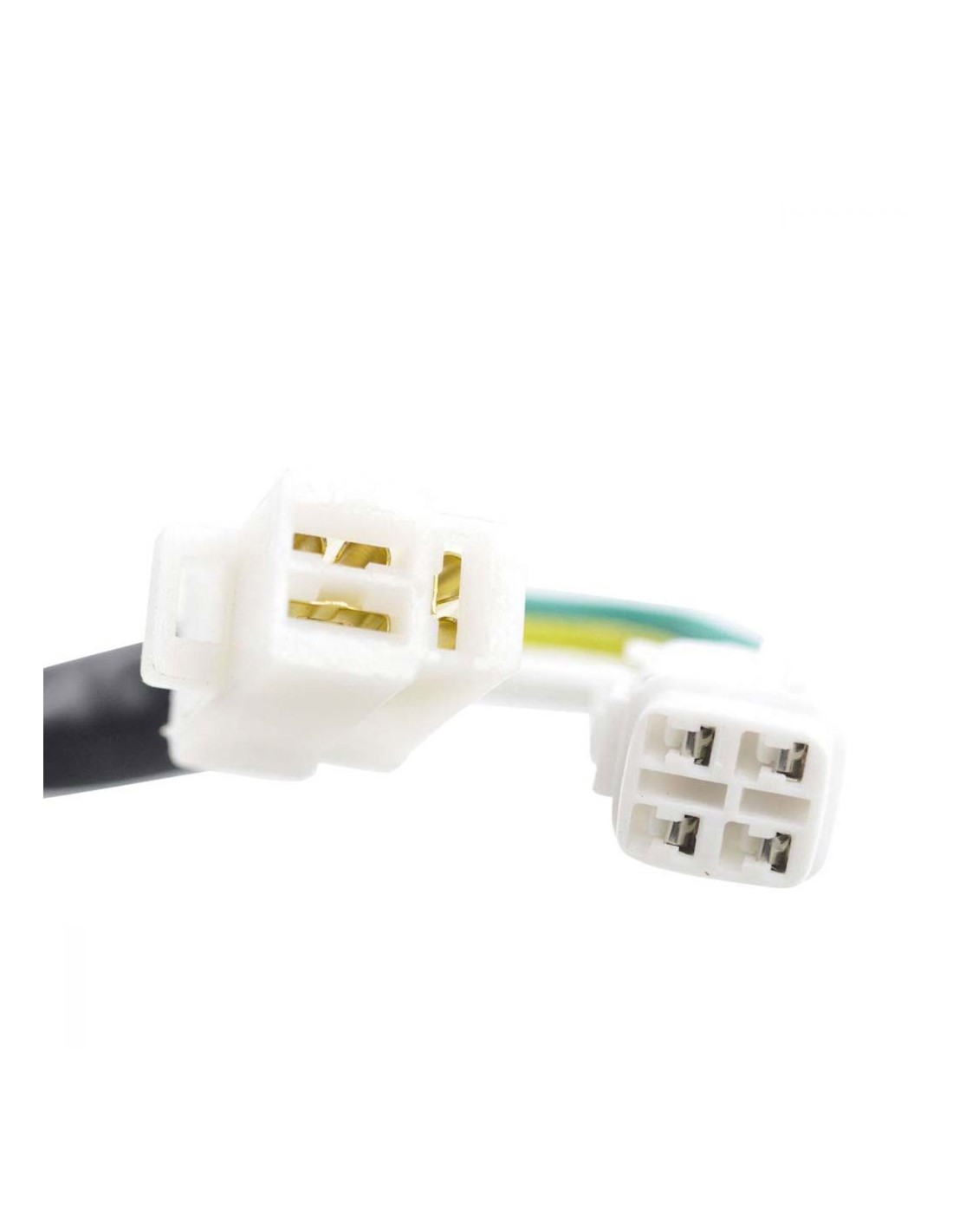

• Number of wires: 7
• Number of plugs: 4
• Number of pins: 7
• Wire to wire resistance:
• Alternator : White Between each White = 0.4 ohms+/-20%
• Alternator : White to Ground = O.L. ON DISPLAY
• Pick up Coil : Blue to green = 200 ohms+/- 20%
• Position Sensor :White to yellow = 0.2 ohms+/- 20%

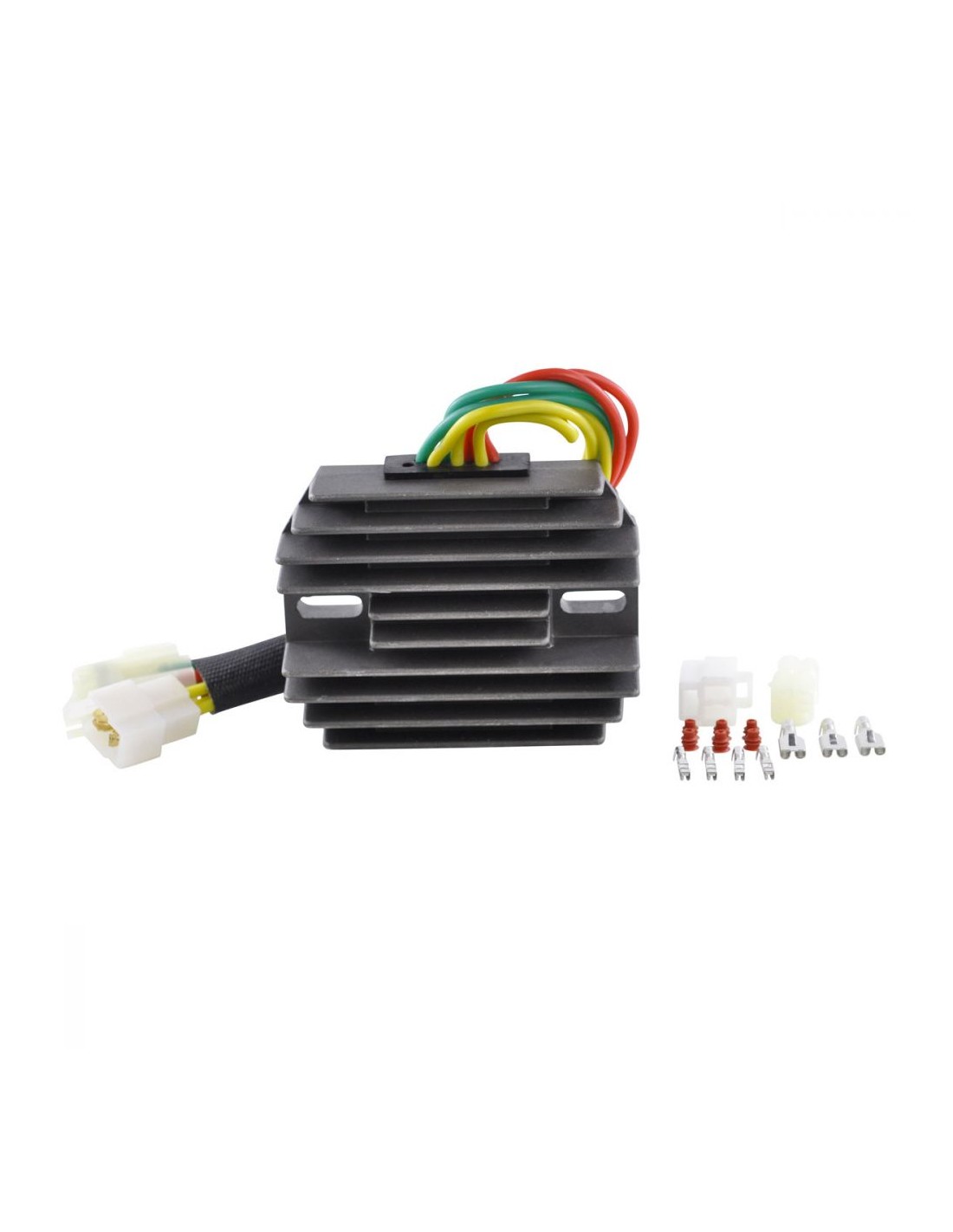

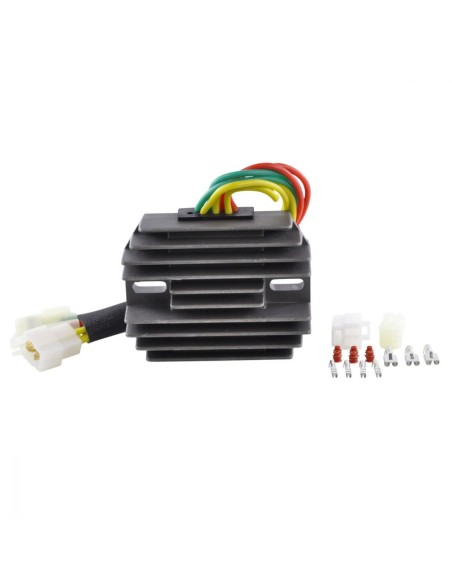

• Voltage Regulator Rectifier:
• Dimensions :
• Width : 80mm
• Length : 114mm
• Height: 30mm
• Fixation holes center to center : 80mm
• Wires length: 250mm
• Other specifications :
• Number of plugs : 2
• Number of pins : 7
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 25A-35A/300W-500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20⁰ to 85⁰

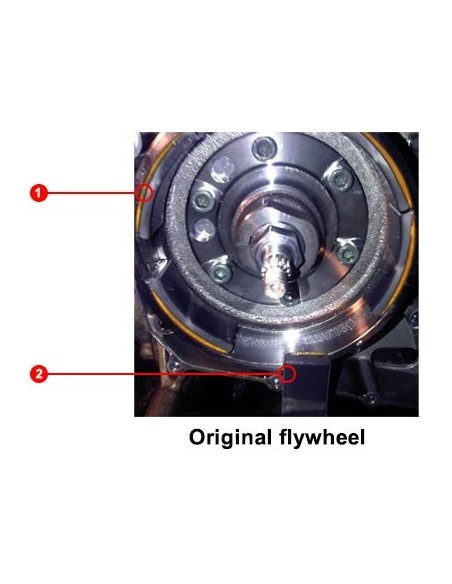

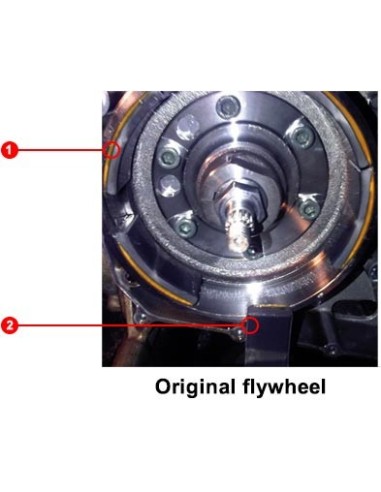

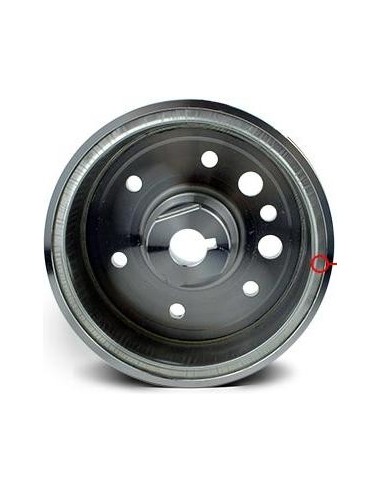

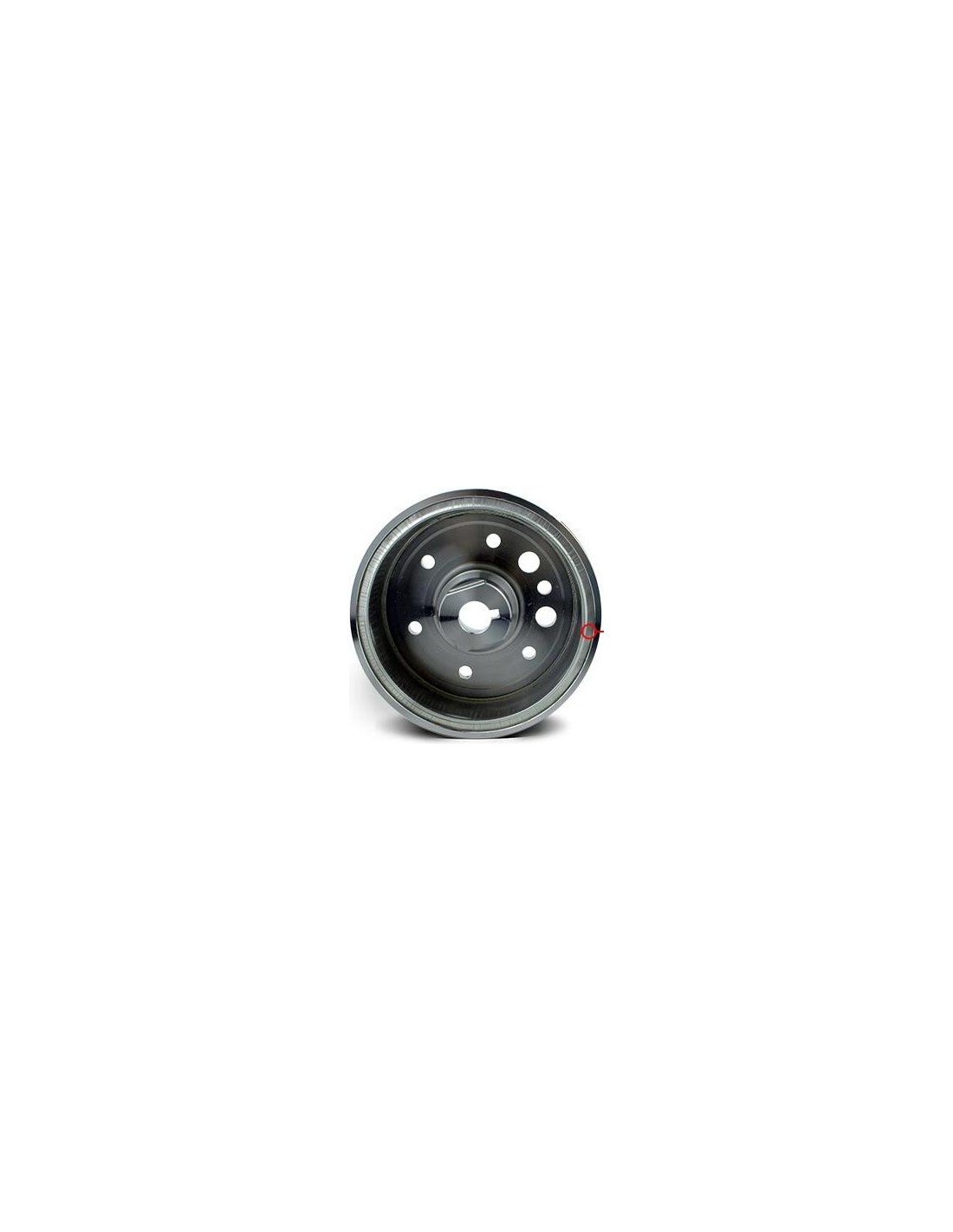

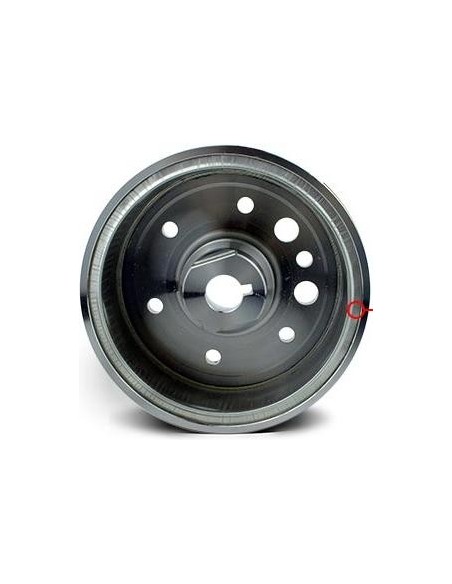

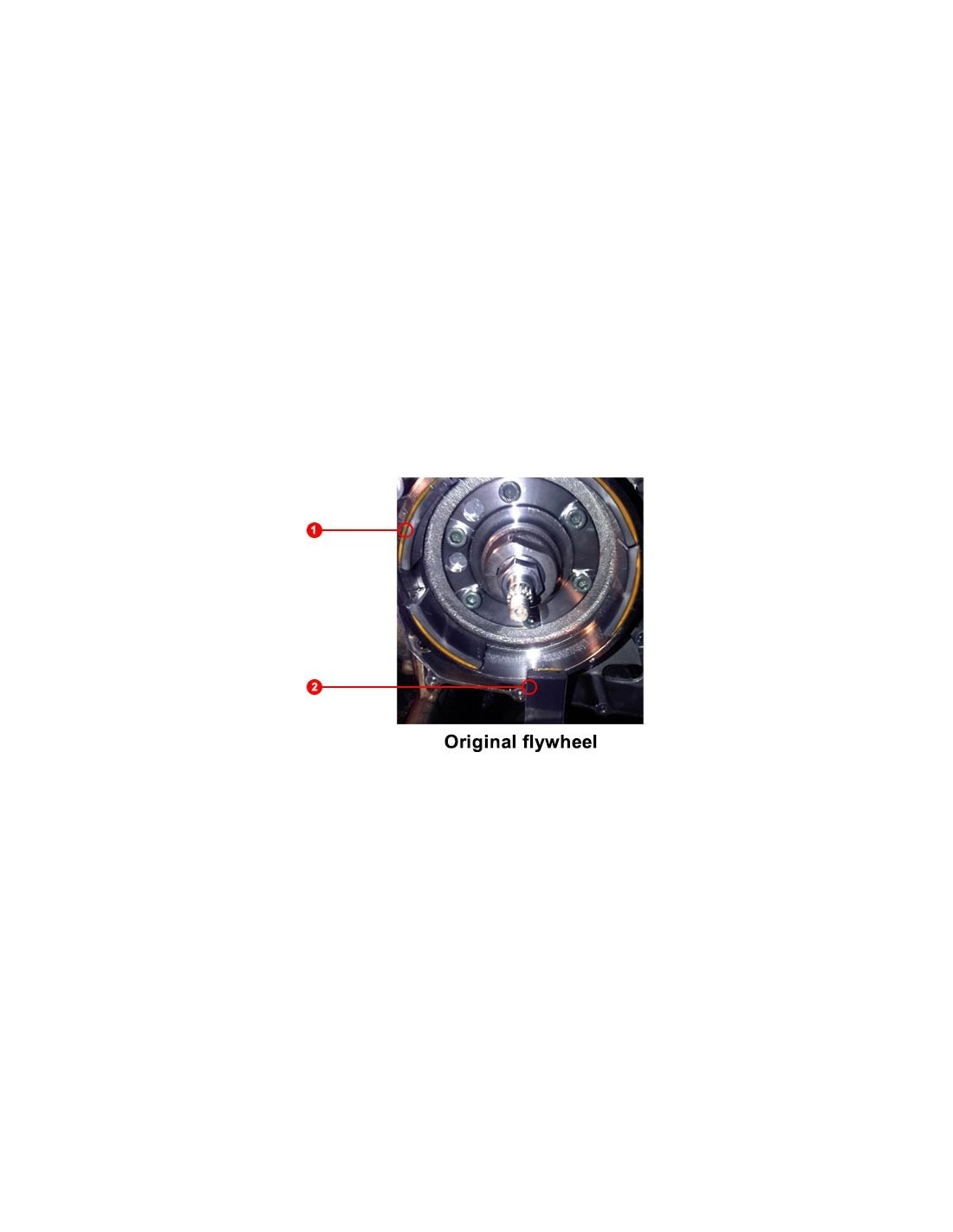

• Flywheel
• Dimensions :
• Exterior Diameter: 143 mm
• Interior Diameter: 120 mm
• Interior Diameter Center Housing: 18 mm
• Exterior Diameter Center Housing: 42 mm
• Thickness (exterior): 12 mm
• Thickness (interior): 13 mm
