Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071
Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071

Kit Stator Magneto Flywheel Stator Cover Gasket Regulator Arctic Cat 400 Manuel OEM 0802-037 3430-053 3430-054 3430-071

CARM23028
7-8 Days
€386.00 €470.00 -€84.00
Tax included

OEM 0802-037 3430-053 3430-054 3430-071

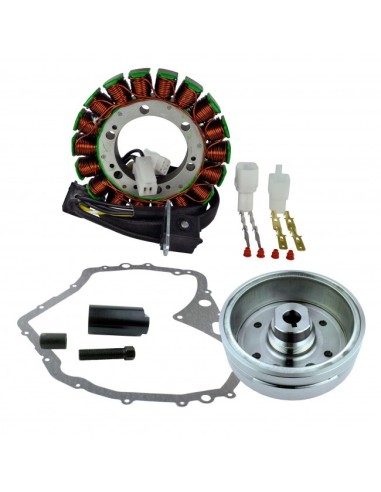

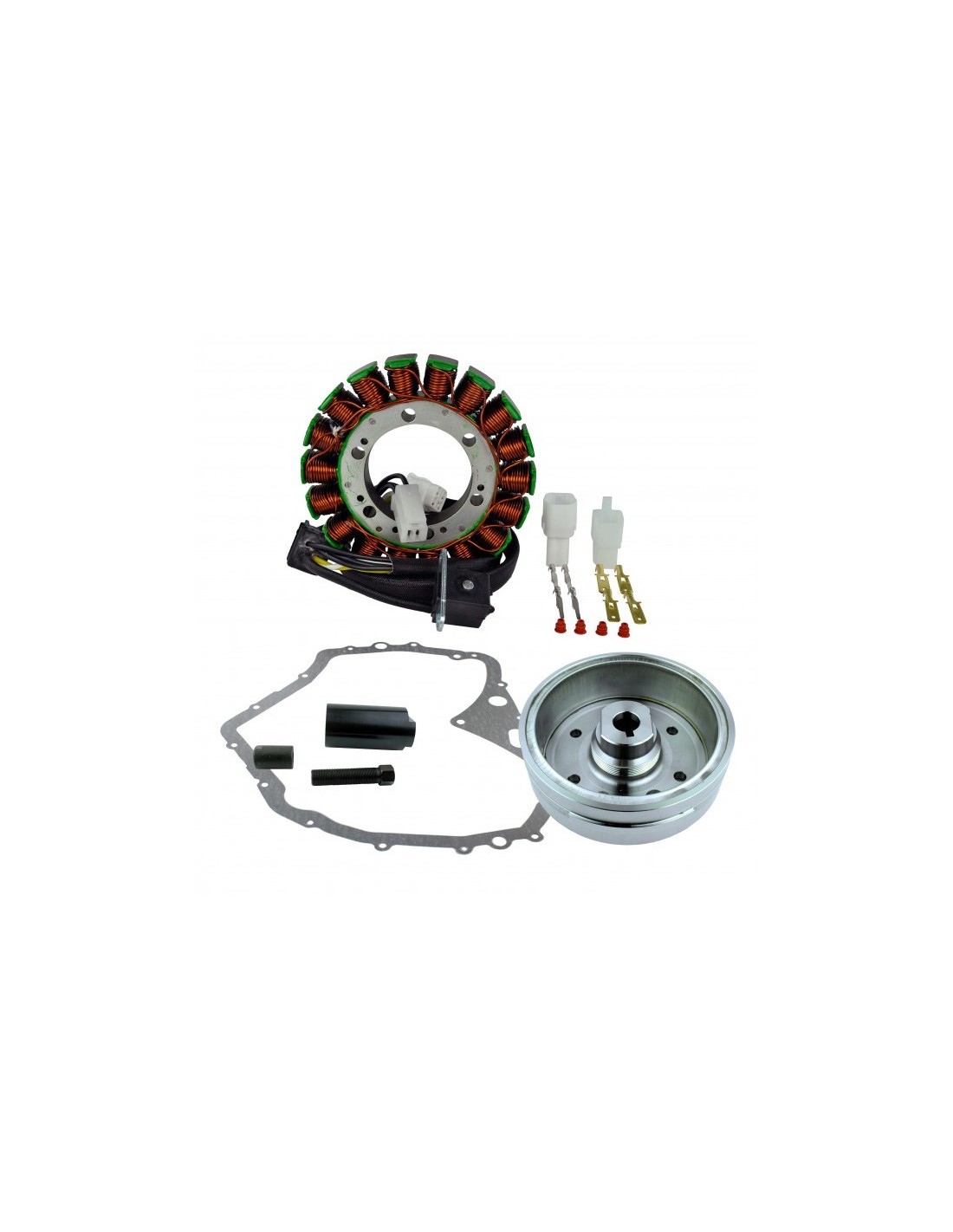

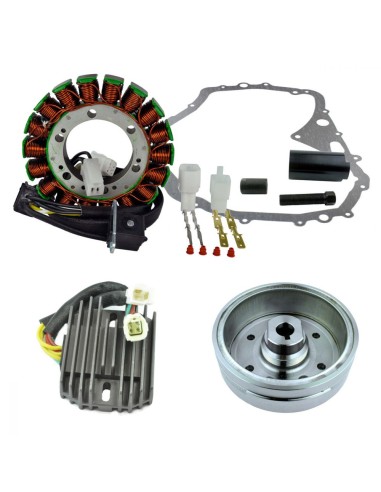

  • Kit Stator Magneto Flywheel Stator Cover Gasket Regulator
  • 2008 Arctic Cat 400 Manual
  • 2007 Arctic Cat 400 Manual
  • 2006 Arctic Cat 400 Manual
  • 2005 Arctic Cat 400 Manual
  • 2004 Arctic Cat 400 Manual
  • 2003 Arctic Cat 400 Manual

OEM 0802-037 3430-053 3430-054 3430-071

  • Stator Resistant to 200 degrees Celsius

  • Stator:
  • Dimensions:
  • Interior diameter: 53 mm
  • Exterior diameter: 119 mm
  • Thickness: 15 mm
  • Other specifications:
  • Number of wires: 7
  • Number of plugs: 4
  • Number of pins: 7
  • Wire to wire resistance:
  • Alternator : White Between each White = 0.4 ohms+/-20%
  • Alternator : White to Ground = O.L. ON DISPLAY
  • Pick up Coil : Blue to green = 200 ohms+/- 20%
  • Position Sensor :White to yellow = 0.2 ohms+/- 20%

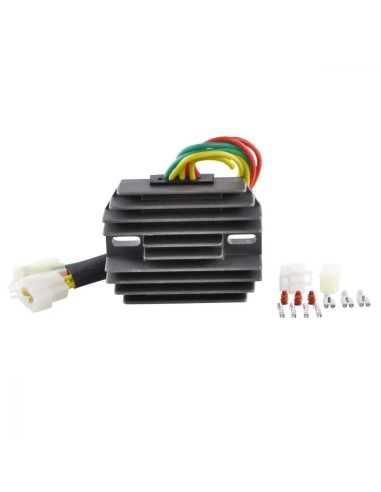

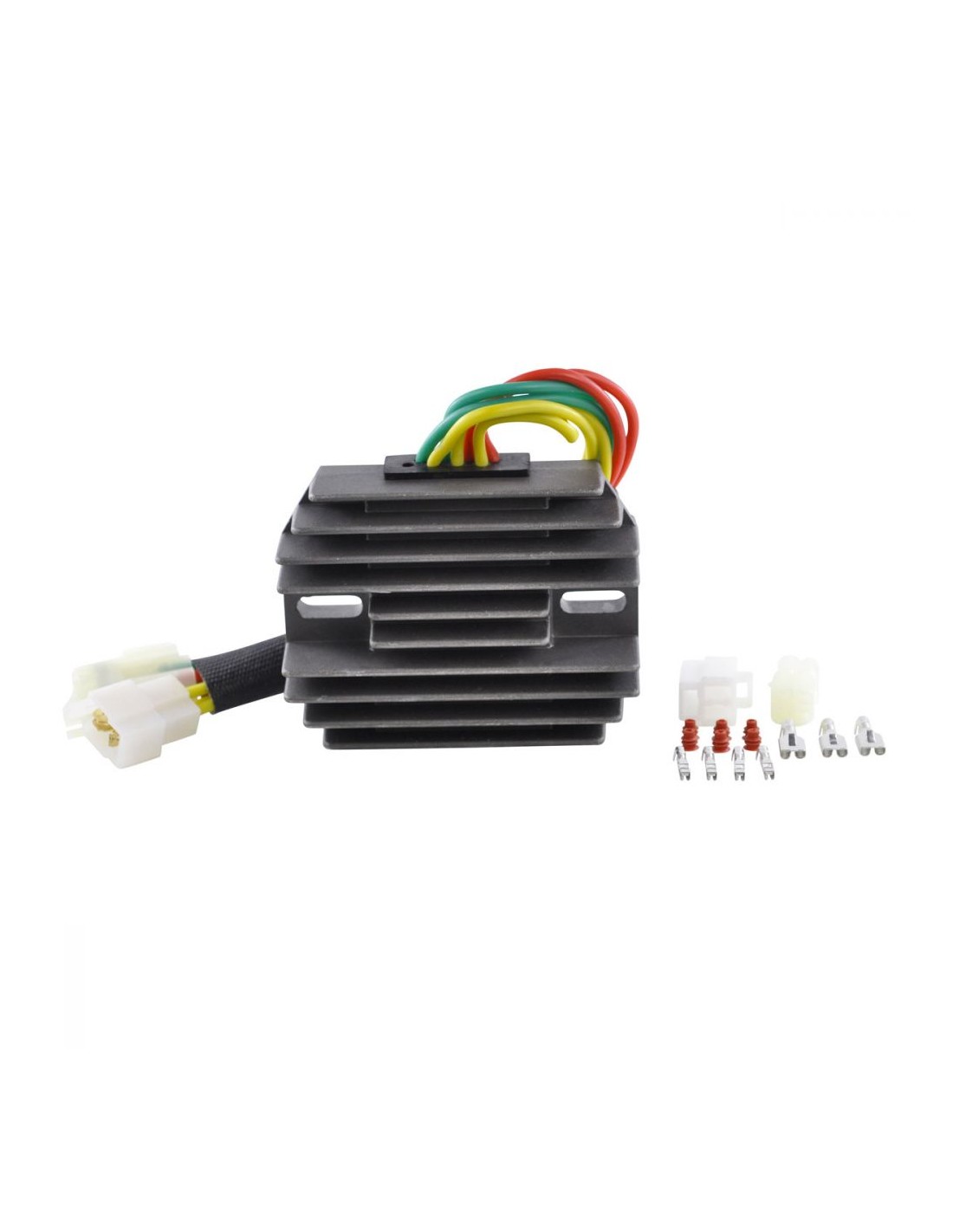

  • Voltage Regulator Rectifier:
  • Dimensions :
  • Width : 80mm
  • Length : 114mm
  • Height: 30mm
  • Fixation holes center to center : 80mm
  • Wires length: 250mm
  • Other specifications :
  • Number of plugs : 2
  • Number of pins : 7
  • Minimum Charging Voltage: 14.5V +/- 0.5V
  • Maximum Charging Current: 25A-35A/300W-500W
  • Open Circuit Voltage: <15V
  • Operation Temperature: -20⁰ to 85⁰

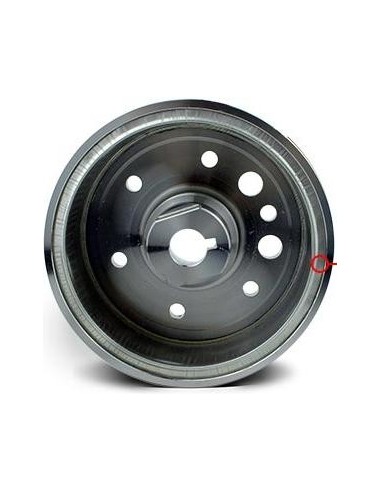

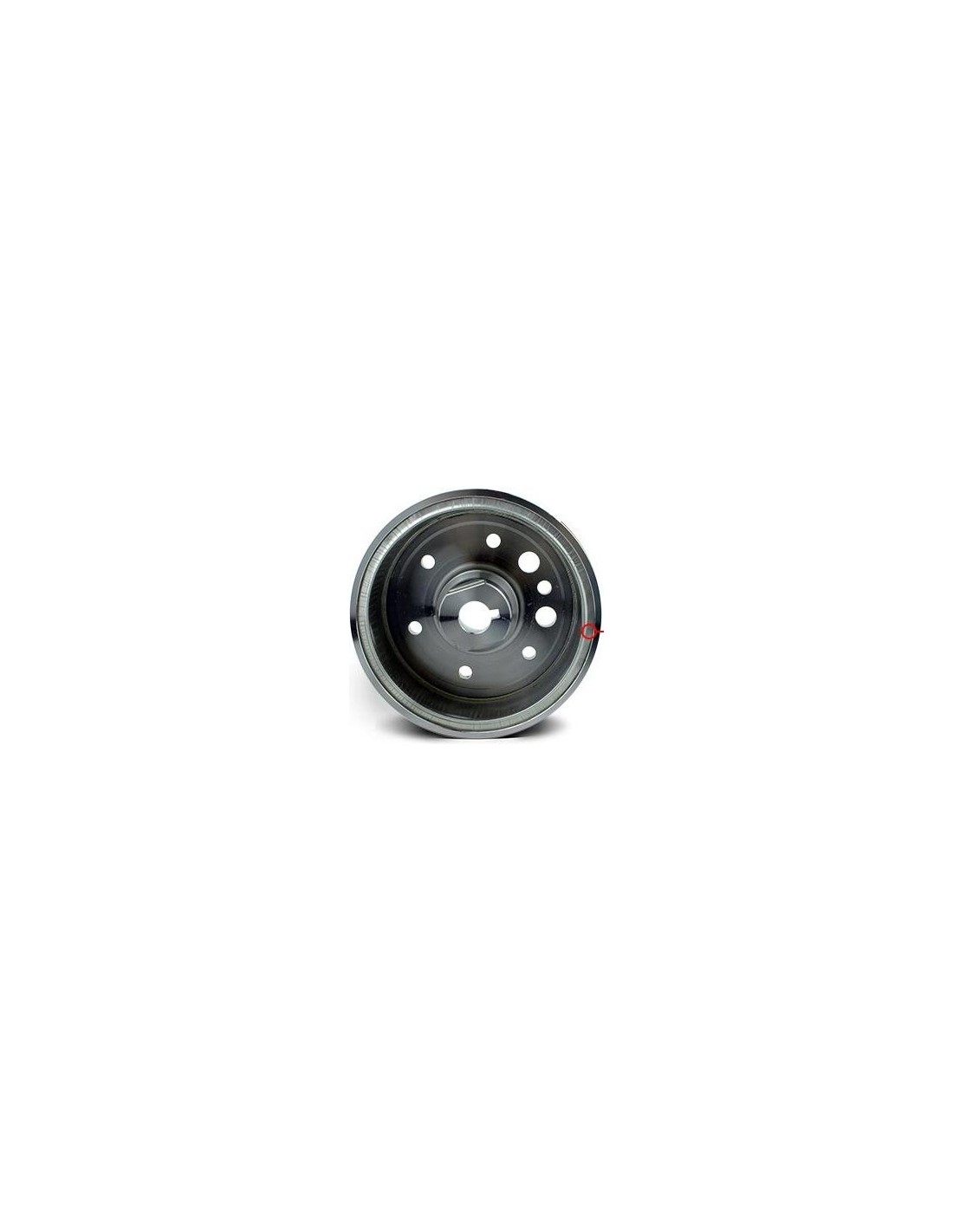

  • Flywheel
  • Dimensions :
  • Exterior Diameter: 143 mm
  • Interior Diameter: 120 mm
  • Interior Diameter Center Housing: 18 mm
  • Exterior Diameter Center Housing: 42 mm
  • Thickness (exterior): 12 mm
  • Thickness (interior): 13 mm
