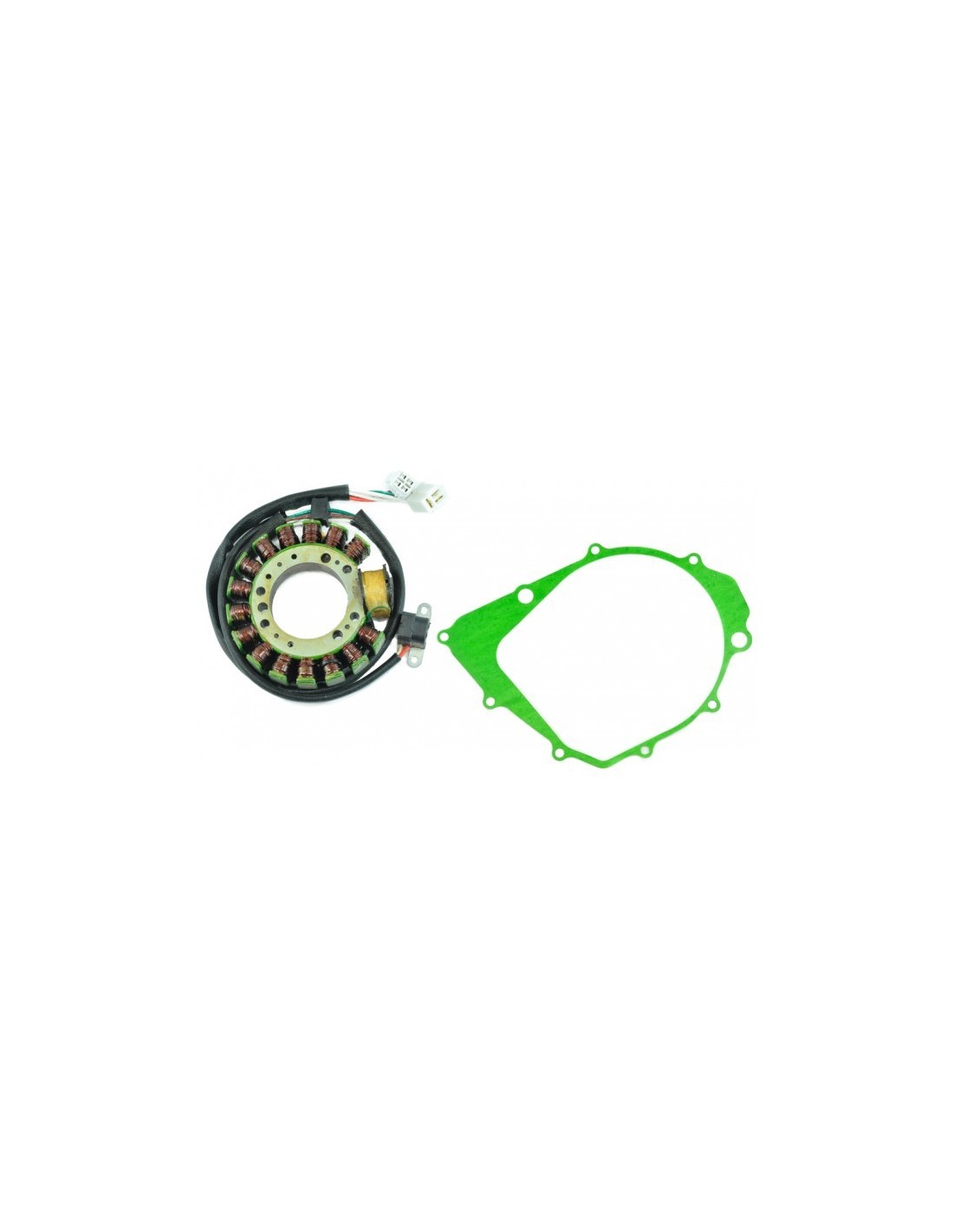

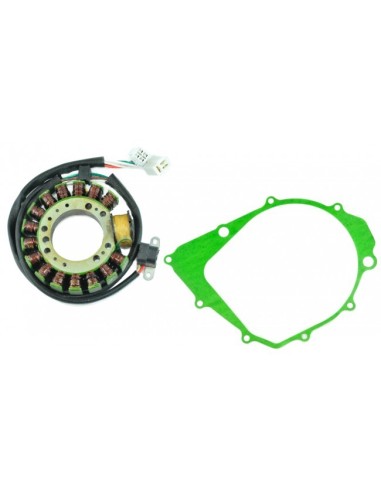

Kit Stator Cover Gasket Yamaha 350 Wolverine OEM 4KB-85510-10-00 4KB-85510-11-00 4KB-85510-12-00

  Stator

    2001
        Yamaha
            YFM 350 Wolverine
                ATV & SxS 2001 Yamaha YFM 350 Wolverine
    2000
        Yamaha
            YFM 350 Wolverine
                ATV & SxS 2000 Yamaha YFM 350 Wolverine

Inside Diameter : 52 mm
Outside Diameter : 115 mm
Thickness of Stack (Pole) : 40 mm

Number of wires : 7
Number of terminals : 7
Alternator : White Between each White = 0.9 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Source 1 : Green to Black = 300 ohms+/-20%
Pick up 1 : Red to White = 500 ohms+/-20%

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
Gasket included
All product shipped are tested

OEM 4KB-85510-10-00 4KB-85510-11-00 4KB-85510-12-00
