Stator Yamaha 350 Bruin OEM 5KM-81410-00-00 5KM-81410-01-00 5UH-81410-00-00

CARM01003

New product

OEM 5KM-81410-00-00 5KM-81410-01-00 5UH-81410-00-00

More details

3 Items

5-7 Days

132,50 € tax incl.

More info

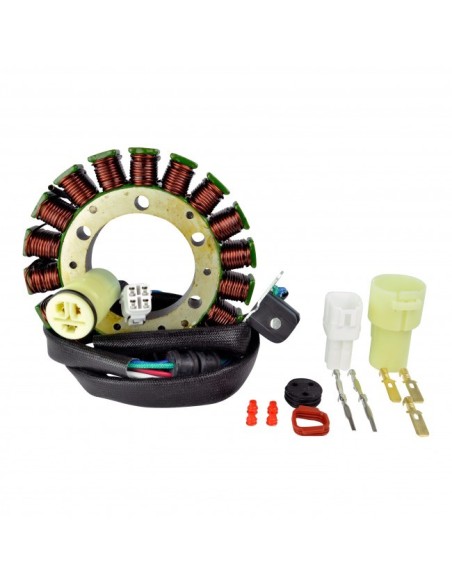

Stator

2004 - 2006 Yamaha YFM 350 Bruin

2007 - 2014 Yamaha YFM 350 Grizzly

2007 Yamaha YFM 350 Grizzly IRS

2007 - 2013 Yamaha YFM 350 Grizzly 4x4

2008 - 2011 Yamaha YFM 350 Grizzly 4x4 IRS

2006 - 2009 Yamaha YFM 350 Wolverine

2007 Yamaha YFM 350 Wolverine Sport

2002 - 2008 Yamaha YFM 660 Grizzly

2003 - 2006 Yamaha YFM 660 Grizzly 4x4

2004 Yamaha YFM 660 Grizzly 4x4 Limited Edition

2005 Yamaha YFM 660 Grizzly Special Edition

OEM
5km-81410-00-00
5km-81410-01-00
5uh-81410-00-00

Pick up pulsar coil included

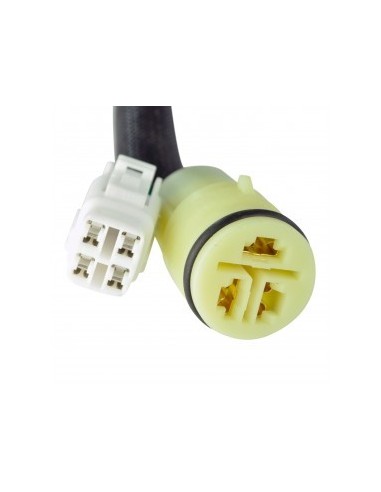

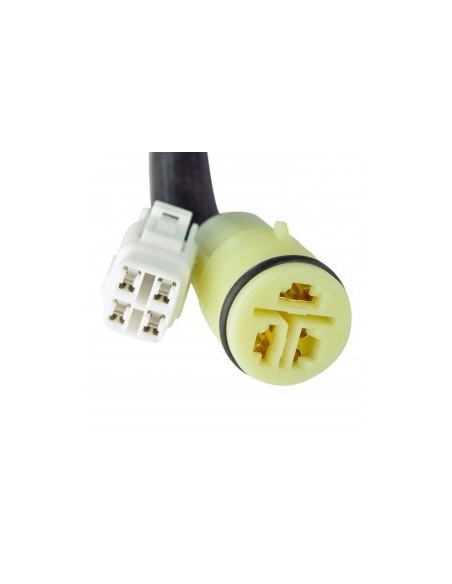

Connector included

Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 500mm
Length of pickup coil's wire to grommet : 150mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White Between Each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 450 ohms +/-20%
Position sensor : Red To White/Blue = 0.4ohms +/-20%

Highest grade copper windings, resistant to 200 degrees Celsius
