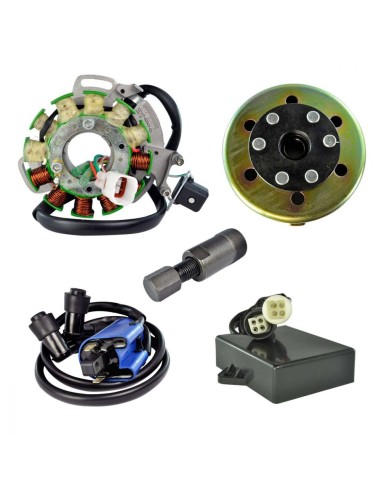

Kit Stator Plate Rotor CDI Yamaha 350 Banshee OEM 3GG-85510-00-00 3GG-85510-01-00

Kit Flywheel Rotor Stator CDI Puller Regulator AC DC Ignition Conversion Kit Yamaha 350 Banshee 1995-1996

Stator
Interior diameter : 40mm
Exterior diameter : 103mm
Thickness : 17mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 330mm
Length of pickup coil's wire to grommet : 270mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 3

Wire to wire resistance :
Alternator : = Yellow to Black = 0.4 ohms +/-20%
Pickup : White/Green to White/Red = 115 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%

Dimensions High Performance CDI Box:
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Wires length: 140mm

Other specifications:
Number of plugs: 2
Number of pins: 8

External Ignition coil
Distance between fixation holes: 90mm
