Kit Ignition Stator 200 Watts Regulator Ignition Coil CDI Yamaha 350 Banshee OEM 2GU-85510-50-00 2GU-85550-50-00

Stator 200 watts

Resistant to 200 degrees Celsius

Regulator 12 Volt
External Ignition Coil
CDI Unit

1987 Yamaha YFZ 350 Banshee
1988 Yamaha YFZ 350 Banshee
1989 Yamaha YFZ 350 Banshee
1990 Yamaha YFZ 350 Banshee
1991 Yamaha YFZ 350 Banshee
1992 Yamaha YFZ 350 Banshee
1993 Yamaha YFZ 350 Banshee
1994 Yamaha YFZ 350 Banshee

OEM 2GU-85510-50-00 2GU-85550-50-00

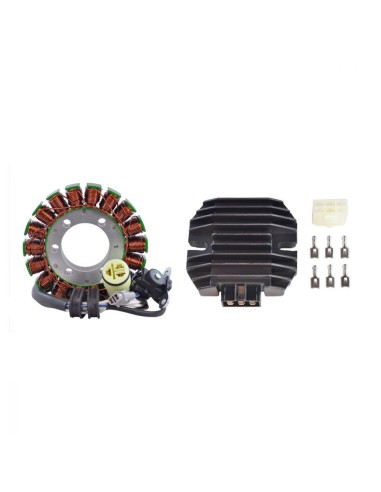

Stator
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 14mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 380mm
Length of pickup coil's wire to grommet : 100mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 100 ohms +/-20%
Source : Red to Green = 15 ohms +/-20%

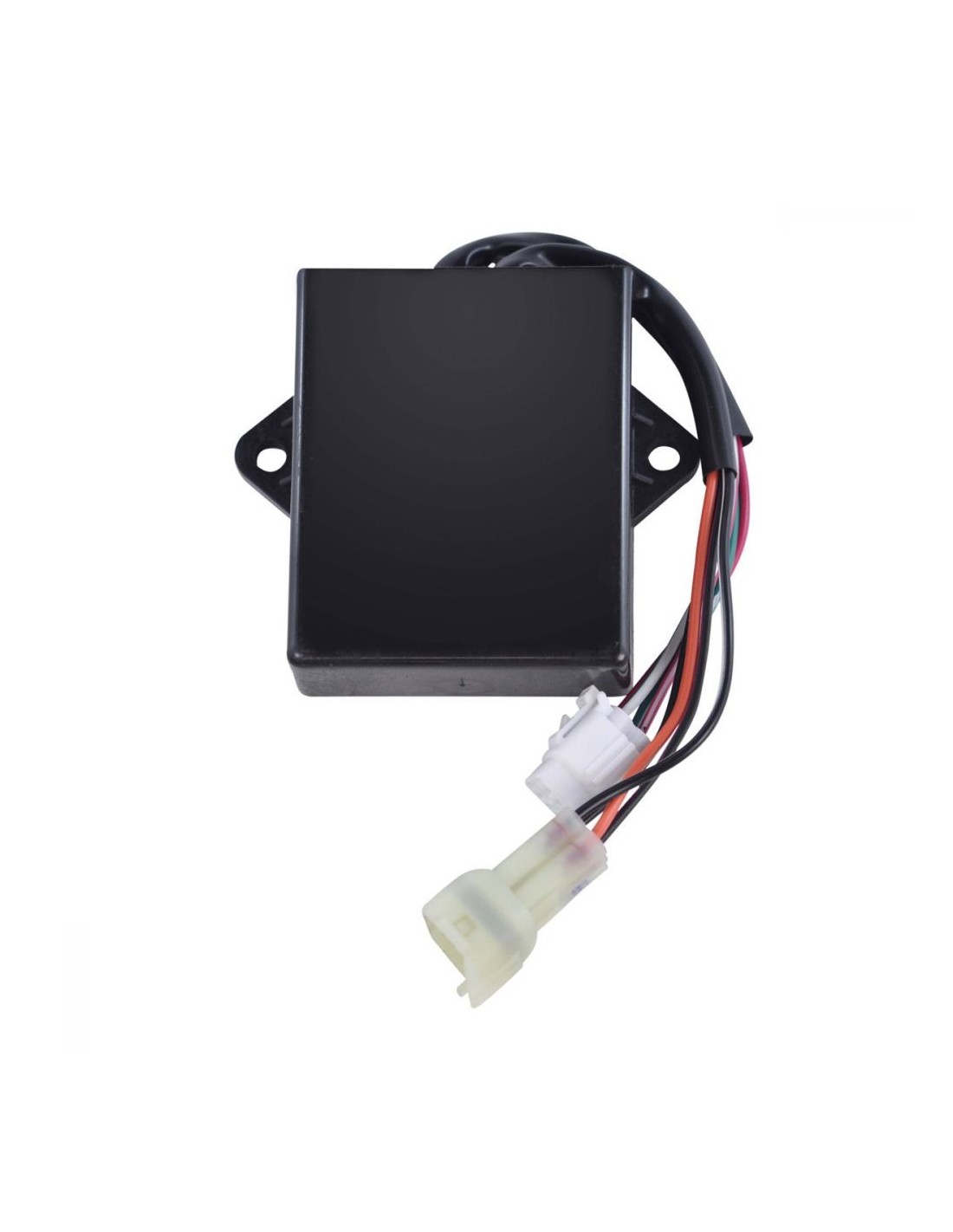

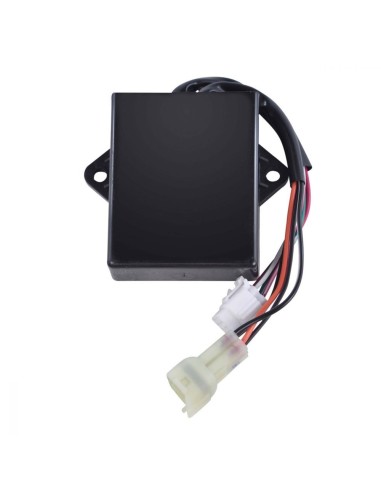

CDI Box
Number of plugs : 2
Number of pins : 8
Height : 25 mm
Lenght : 85mm
Width : 71mm
Fixation holes center to center : 85mm
Wires lenght : 120mm 140mm

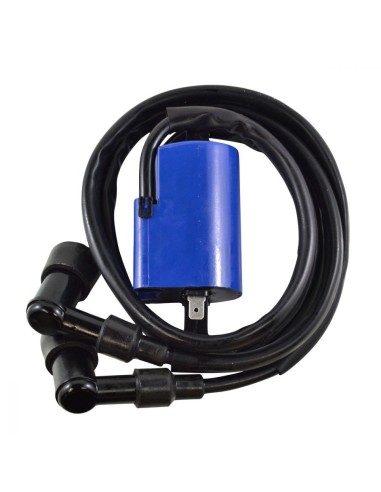

External ignition coil
Bracket center to Bracket: 90mm
Wires lenght : 590 mm
Primary Resistance: 0.4Ω
Secondary Resistance: 6.0KΩ
Damped Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M
