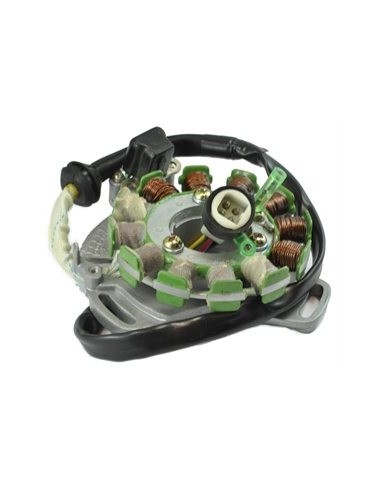

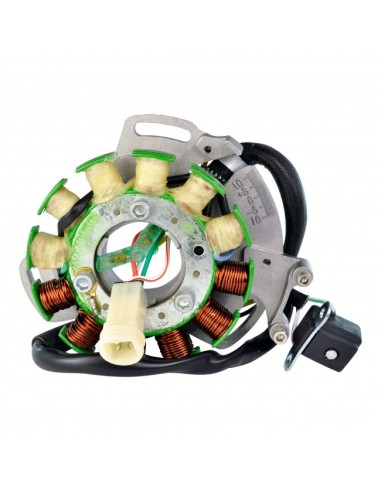

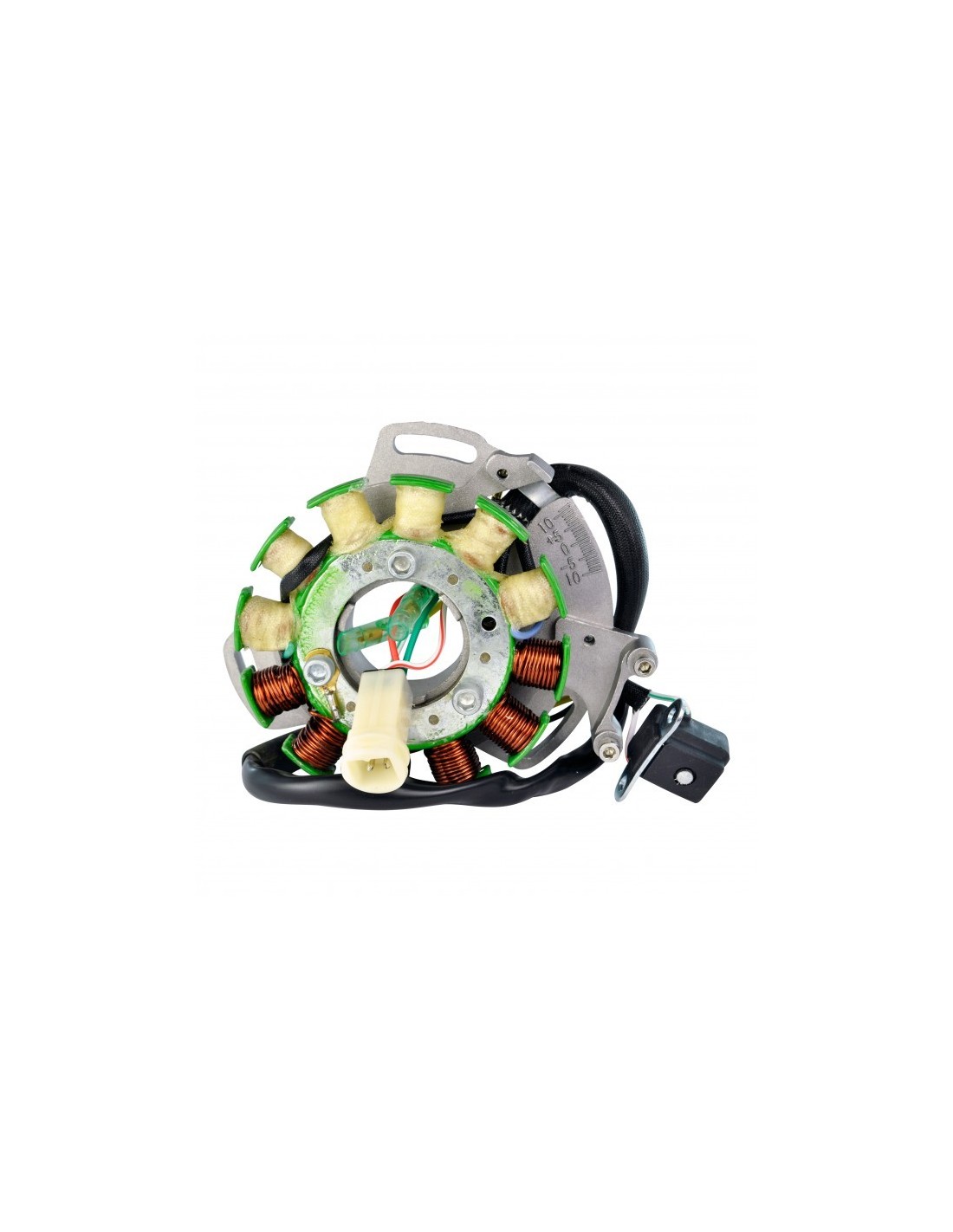

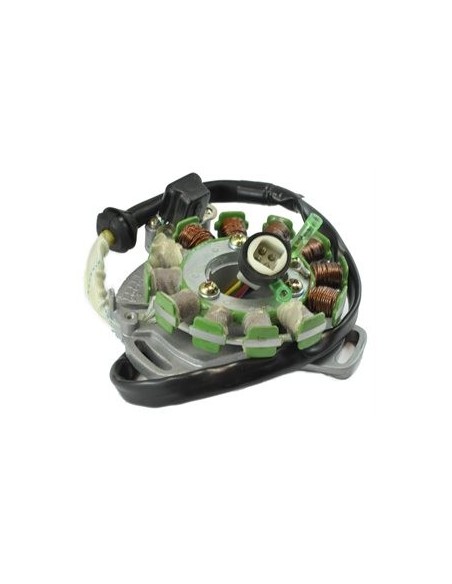

Stator Allumage 100 Watts Yamaha YFZ350 Banshee OEM 2GU-85510-50-00

Stator 100W Resistant to 200 degrees Celsius

Stator Pick-Up Pulsar Coil

1987 Yamaha YFZ 350 Banshee
1988 Yamaha YFZ 350 Banshee
1989 Yamaha YFZ 350 Banshee
1990 Yamaha YFZ 350 Banshee
1991 Yamaha YFZ 350 Banshee
1992 Yamaha YFZ 350 Banshee
1993 Yamaha YFZ 350 Banshee
1994 Yamaha YFZ 350 Banshee

OEM 2GU-85510-50-00

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 6

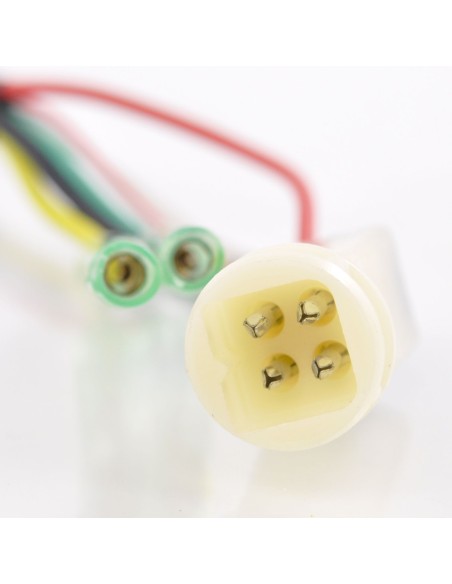

Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%
