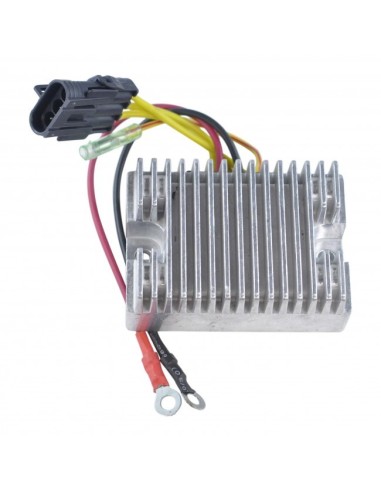

Regulator Rectifier Mosfet Polaris Sportsman 300 Sportsman 400 Hawkeye 300 OEM 4011182

•  Regulator Rectifier Mosfet
• 2011 Polaris Hawkeye 300 2x4 Carb
  2010 Polaris Hawkeye 300 2x4 Carb
  2010 Polaris Sportsman 300 4x4 Carb
  2010 Polaris Sportsman 400 HO 4x4 Carb
  2009 Polaris Hawkeye 300 2x4 Carb
  2009 Polaris Sportsman 300 4x4 Carb
  2009 Polaris Sportsman 400 HO 4x4 Carb
  2008 Polaris Hawkeye 300 2x4 Carb
  2008 Polaris Sportsman 300 4x4 Carb
  2008 Polaris Sportsman 400 HO 4x4 Carb
  2007 Polaris Hawkeye 300 2x4 Carb
  2007 Polaris Hawkeye 300 4x4 Carb
  2006 Polaris Hawkeye 300 2x4 Carb

  OEM
  4011182

  Dimensions :
  Width : 70mm
  Length : 97mm
  Height : 36mm
  Wires length : 70mm 205mm Fixation holes center to center : 80mm

  Other specifications :
  Number of plugs : 4
  Number of pins : 6
  Number of wires : 6
  Minimum Charging Voltage: 14.5V +/- 0.5V
  Maximum Charging Current: 50A/500W
  Open Circuit Voltage: <15V
  Operation Temperature: -20⁰ to 85⁰

Improved heat sink and charging capabilities

• It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
