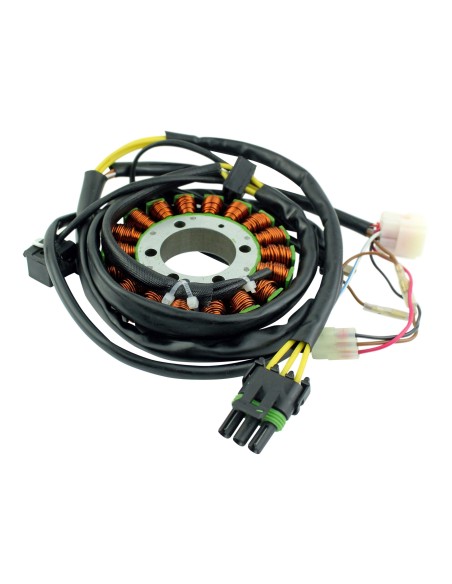

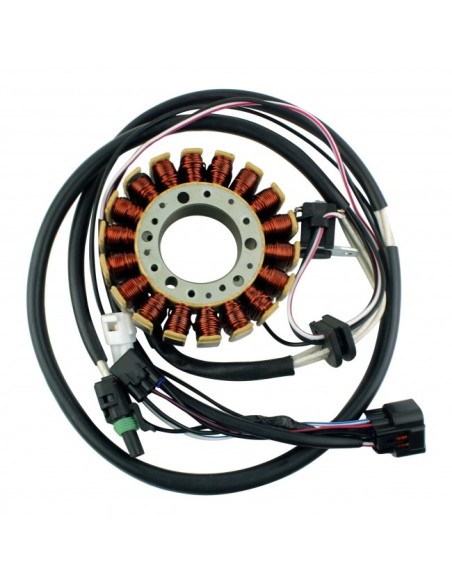

Stator Polaris Hawkeye 300 Sportsman 300 OEM 3089853

Resistant to 200 degrees Celsius

    2011
        Polaris
            Hawkeye 300
                2011 Polaris Hawkeye 300 2x4 Carb
    2010
        Polaris
            Hawkeye 300
                2010 Polaris Hawkeye 300 2x4 Carb
            Sportsman 300
                2010 Polaris Sportsman 300 4x4 Carb
    2009
        Polaris
            Hawkeye 300
                2009 Polaris Hawkeye 300 2x4 Carb
            Sportsman 300
                2009 Polaris Sportsman 300 4x4 Carb
    2008
        Polaris
            Hawkeye 300
                2008 Polaris Hawkeye 300 2x4 Carb
            Sportsman 300
                2008 Polaris Sportsman 300 4x4 Carb
    2007
        Polaris
            Hawkeye 300
                2007 Polaris Hawkeye 300 2x4 Carb
                2007 Polaris Hawkeye 300 4x4 Carb
    2006
        Polaris
            Hawkeye 300
                2006 Polaris Hawkeye 300 2x4 Carb

OEM
3089853

Dimensions :
Interior diameter : 41mm
Exterior diameter : 104mm
Thickness : 18mm
Length of wires stator to grommet : 95mm
Length of wires grommet to plug : 1000mm
Length of pickup coil's wire to grommet : 45mm

Other specifications :
Number of wires : 9

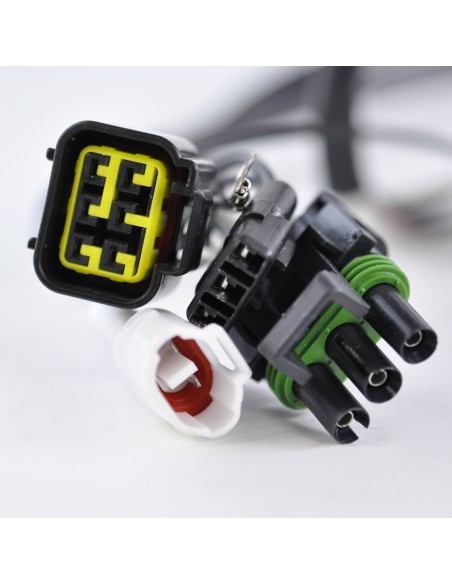

Number of plugs : 4
Number of pins : 14

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Grey/Red to White/Red = 320ohms +/-20%
