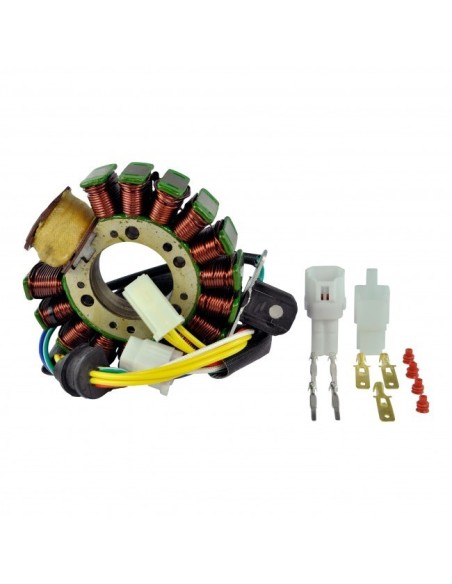

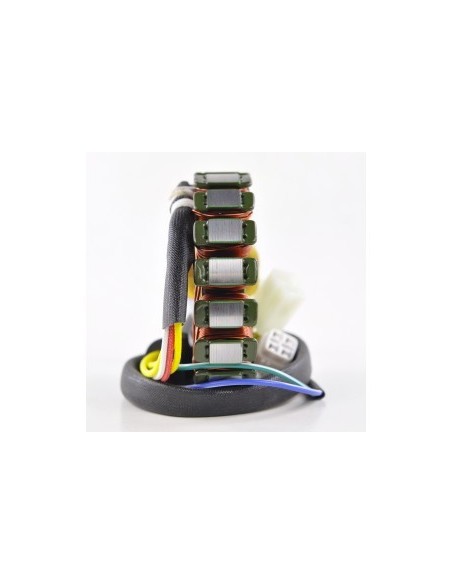

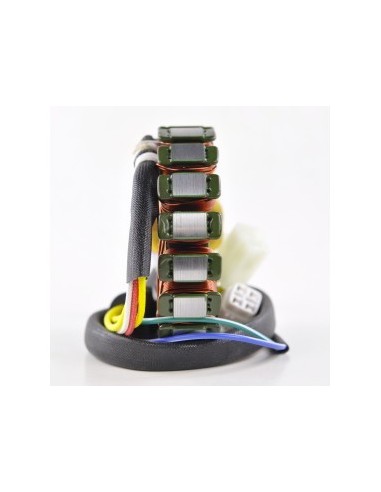

Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00

Stator Yamaha 250 Timberwolf OEM 4BD-85510-20-00 59V-85510-20-00

CARM01298
7-8 Days
€214.00
Tax included

OEM 4BD-85510-20-00 59V-85510-20-00


    • Stator Resistant to 200 degrees Celsius

    • 1994 Yamaha YFB 250 Timberwolf 4x4 Maine / New Hampshire
      1995 Yamaha YFB 250 Timberwolf 4x4 Maine / New Hampshire
      1996 Yamaha YFB 250 Timberwolf 4x4 Maine / New Hampshire
      1997 Yamaha YFB 250 Timberwolf 4x4 Maine / New Hampshire
      1994 Yamaha YFB 250 Timberwolf
      1995 Yamaha YFB 250 Timberwolf
      1996 Yamaha YFB 250 Timberwolf
      1997 Yamaha YFB 250 Timberwolf
      1998 Yamaha YFB 250 Timberwolf

      1994 Yamaha YFB 250 Timberwolf 4x4
      1995 Yamaha YFB 250 Timberwolf 4x4
      1996 Yamaha YFB 250 Timberwolf 4x4
      1997 Yamaha YFB 250 Timberwolf 4x4
      1998 Yamaha YFB 250 Timberwolf 4x4
      1999 Yamaha YFB 250 Timberwolf 4x4
      2000 Yamaha YFB 250 Timberwolf 4x4

      1995 Yamaha YFB 250 Timberwolf Maine / New Hampshire
      1997 Yamaha YFB 250 Timberwolf Maine / New Hampshire

      1996 Yamaha YFB 250 Timberwolf W/O Carriers

      1996 Yamaha YFB 250 Timberwolf Maine / New Hampshire W/O Carriers

      1996 Yamaha YFB 250 Timberwolf W/Carriers

      1999 Yamaha YFM 250 Bear Tracker California
      2000 Yamaha YFM 250 Bear Tracker California
      1999 Yamaha YFM 250 Bear Tracker
      2000 Yamaha YFM 250 Bear Tracker

      OEM
      4bd-85510-20-00
      59v-85510-20-00

    • Dimensions :
      Interior diameter : 33 mm
      Exterior diameter : 93 mm
      Thickness : 15 mm
      Length of wires stator to grommet : 95 mm
      Length of wires grommet to plug : 325 mm
      Length of pickup coil's wire to grommet : 130 mm

      Other specifications :
      Number of wires : 7
      Number of plugs : 2
      Number of pins : 7

      Wire to wire resistance :
      Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
      Alternator : YellowTo Ground = 0.L
      Pickup : Green to Blue = 200ohms +/-20%
      Source : Red to White = 320ohms +/-20%
