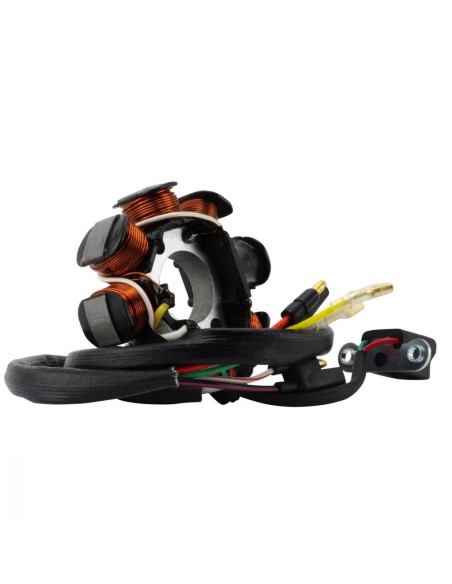

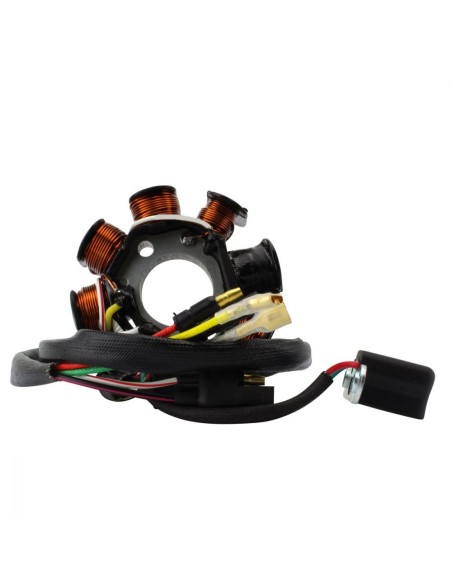

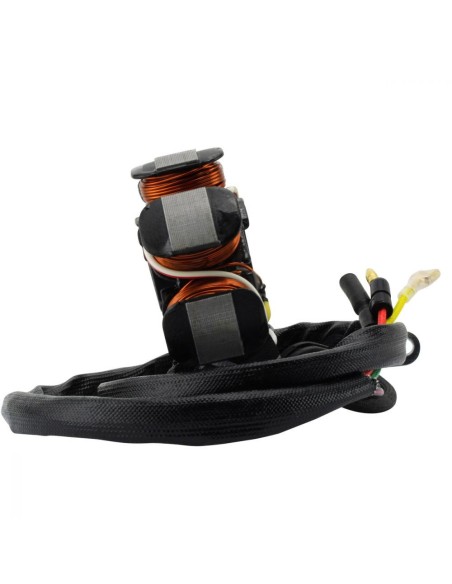

Stator KTM 125 EXC SX 200 EXC MXC 250 EXC MXC 300 SX EXE 380 SX EXCF OEM 50339004200

2004 KTM 300 MXC
2004 KTM 300 EXC
2004 KTM 250 SX
2004 KTM 250 EXC Euro
2004 KTM 200 SX
2004 KTM 200 EXC
2004 KTM 125 SX
2003 KTM 300 MXC
2003 KTM 300 EXE
2003 KTM 250 EXE
2003 KTM 200 SX
2003 KTM 200 MXC
2003 KTM 200 EXC
2003 KTM 125 SXS
2003 KTM 125 SX
2003 KTM 125 MXC
2003 KTM 125 EXC-F
2002 KTM 380 EXC-F
2002 KTM 300 SX
2002 KTM 300 MXC
2002 KTM 300 EXC
2002 KTM 250 SX
2002 KTM 250 MXC
2002 KTM 250 EXC-F
2002 KTM 200 SX
2002 KTM 200 EXC
2002 KTM 125 SX
2002 KTM 125 MXC
2001 KTM 380 SX
2001 KTM 380 MXC
2001 KTM 380 EXC-F
2001 KTM 300 SX
2001 KTM 300 MXC
2001 KTM 300 EXC
2001 KTM 250 SX
2001 KTM 250 EXC Euro
2001 KTM 200 MXC
2001 KTM 200 EXC
2001 KTM 125 SXS
2001 KTM 125 SX
2001 KTM 125 MXC
2001 KTM 125 EXE
2001 KTM 125 EXC Euro
2000 KTM 380 SX
2000 KTM 380 MXC
2000 KTM 380 EXC-F
2000 KTM 300 SX
2000 KTM 300 MXC
2000 KTM 300 EXC
2000 KTM 250 SX
2000 KTM 250 MXC
2000 KTM 250 EXC-F
2000 KTM 200 SX
2000 KTM 200 EXC
2000 KTM 125 SXS
2000 KTM 125 SX
2000 KTM 125 MXC
2000 KTM 125 EXE
2000 KTM 125 EXC-F
1999 KTM 200 EGS
1999 KTM 125 SXS
1999 KTM 125
1998 KTM 125
1997 KTM Jackpinner 200

OEM 50339004200

Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug: 590 mm
Length of pickup coil's wire to grommet: 65 mm

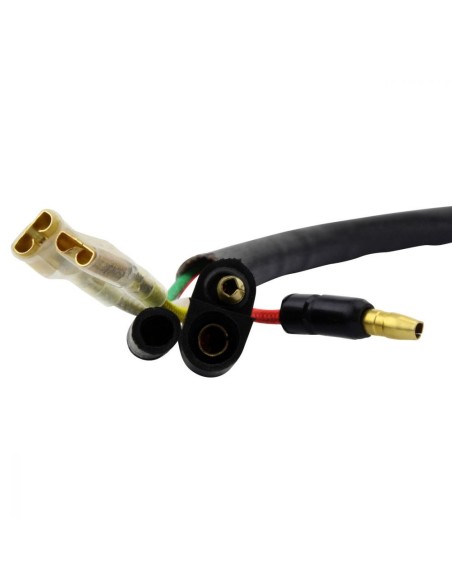

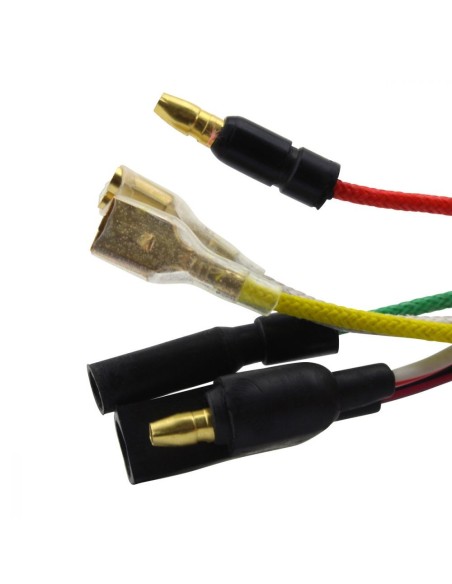

Other specifications:
Number of wires: 6
Number of plugs: 4
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Alternator: White to ground = O.L

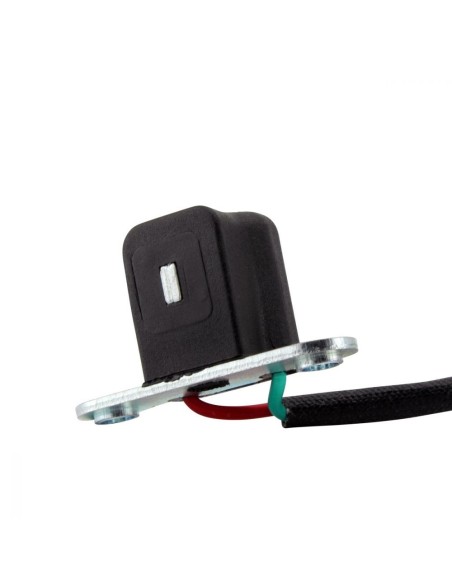

Pickup: Black/Red to Red/White= 14 ohms +-20%
Source: Green to Red = 104 ohms +-20%
