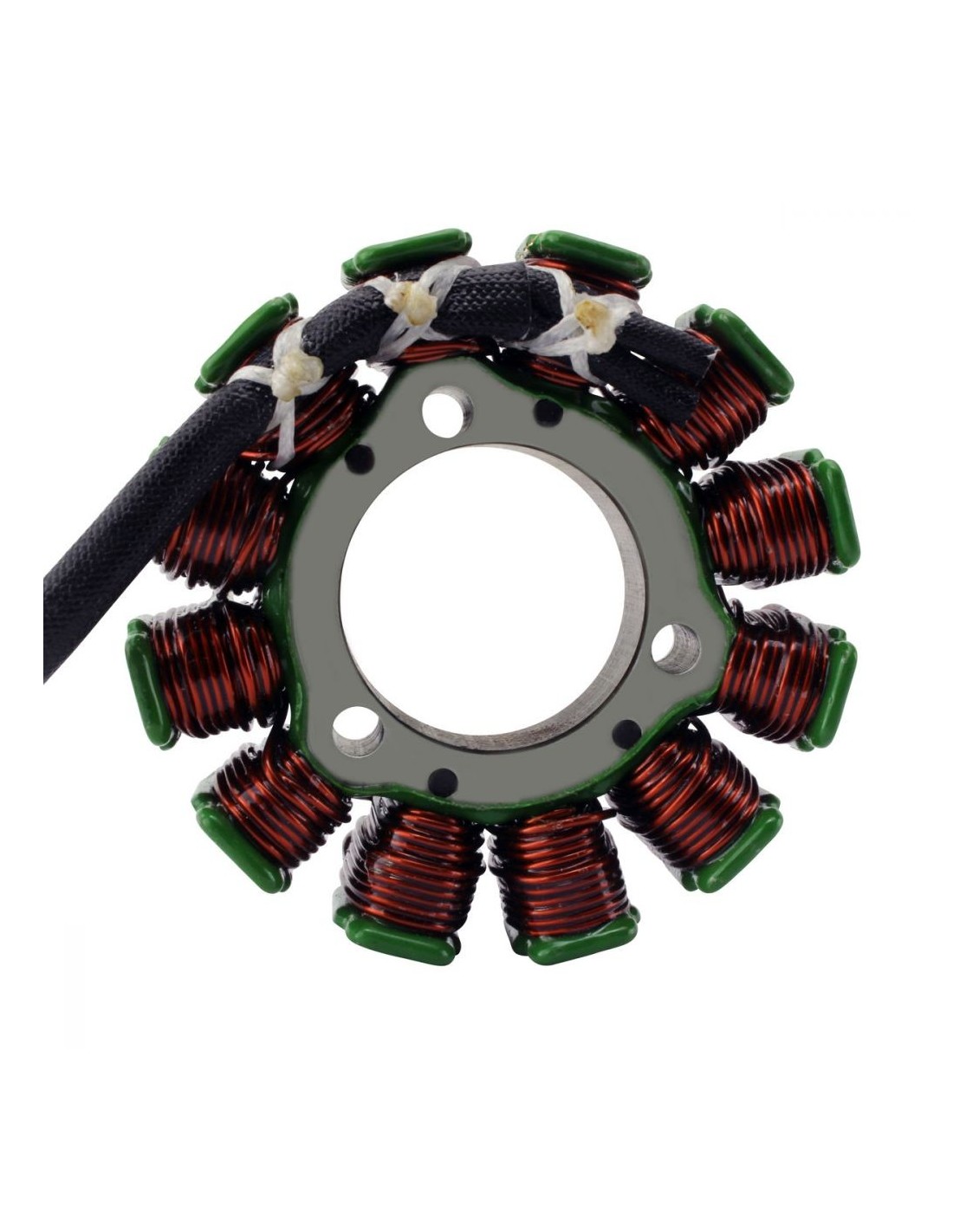

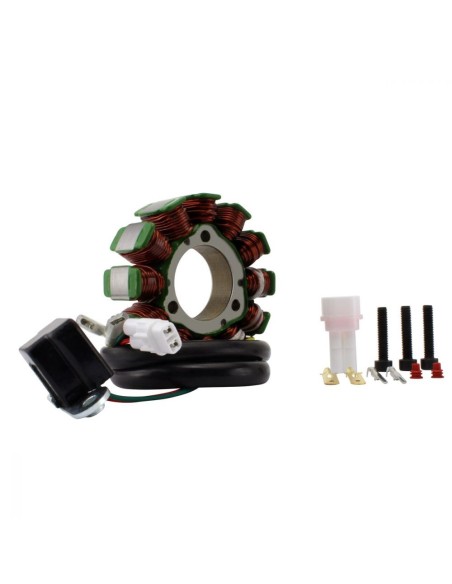

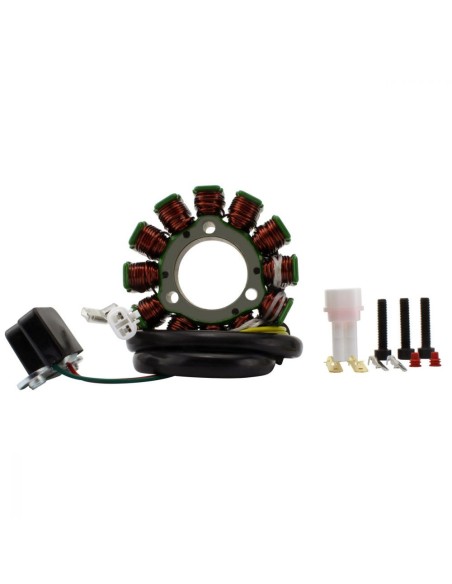

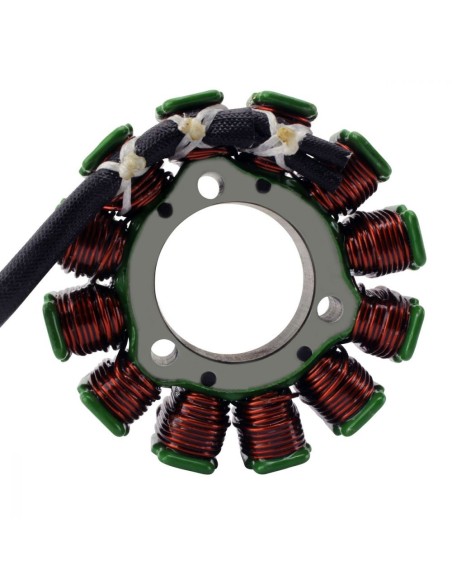

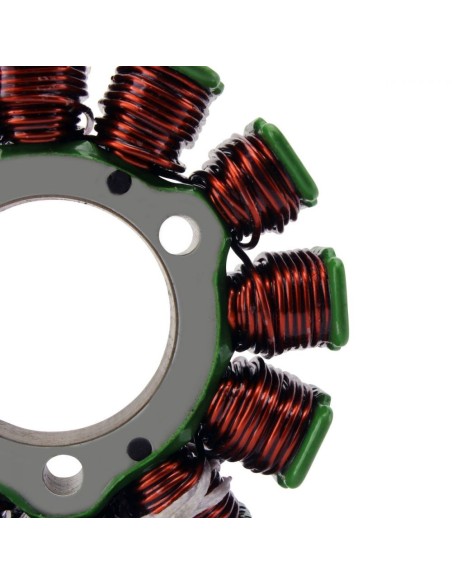

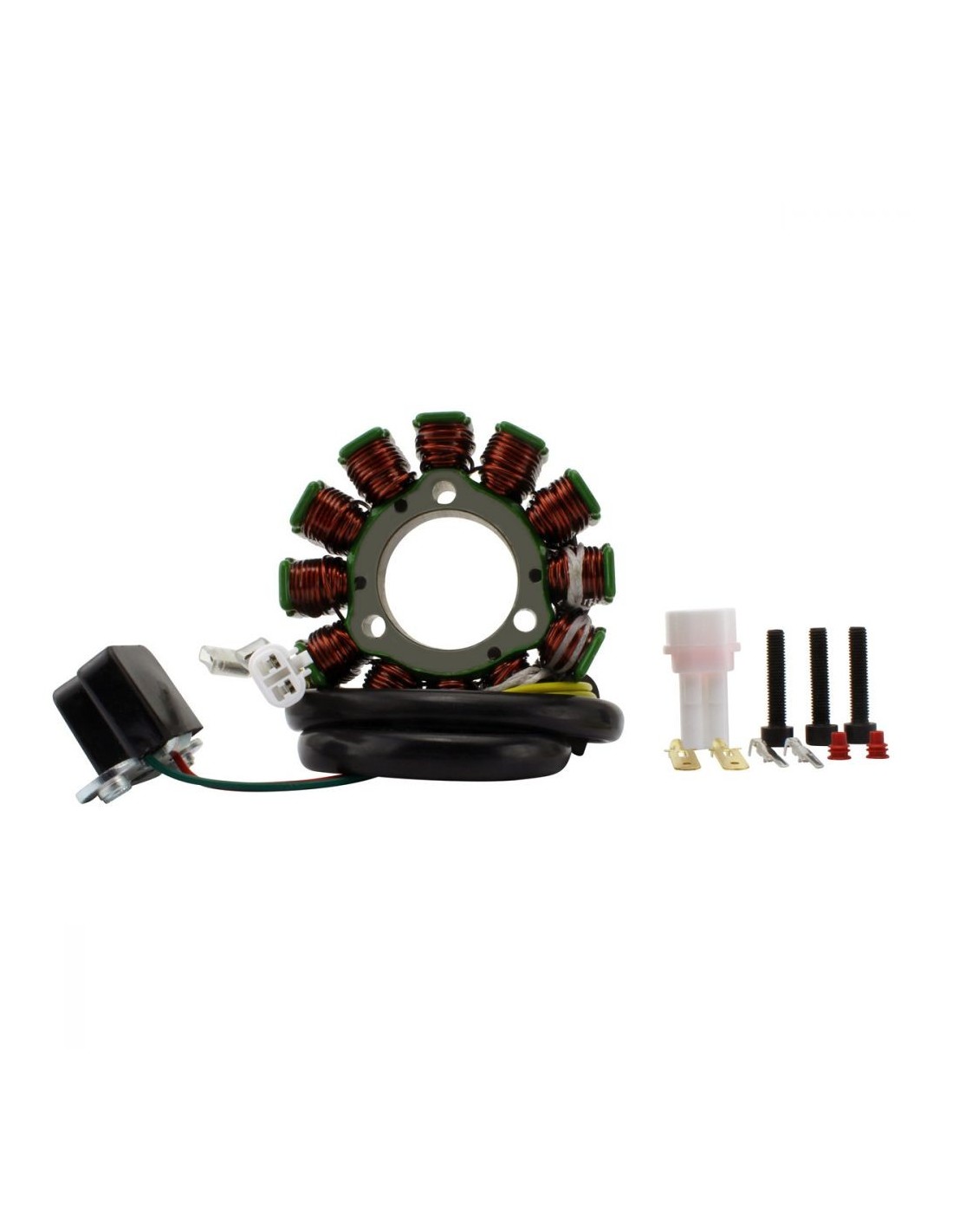

Stator GasGas MC450 MC250 EX450 EX350 EX250 OEM 79239004100 79239004000 79239004200

80W Stator

2024 Gas Gas MC 450

2024 Gas Gas MC 350

2024 Gas Gas MC 250

2024 Gas Gas EX 450

2024 Gas Gas EX 350

2024 Gas Gas EX 250

2023 Gas Gas MC 450

2023 Gas Gas MC 350

2023 Gas Gas MC 250

2023 Gas Gas EX 450

2023 Gas Gas EX 350

2023 Gas Gas EX 250

2022 Gas Gas MC 450

2022 Gas Gas MC 350

2022 Gas Gas MC 250

2022 Gas Gas EX 450

2022 Gas Gas EX 350

2022 Gas Gas EX 250

2021 Gas Gas MC 450

2021 Gas Gas MC 250

2021 Gas Gas EX 450

2021 Gas Gas EX 350

2021 Gas Gas EX 250

OEM 79239004100
79239004000
79239004200

Dimensions:
Interior diameter: 32 mm
Exterior diameter: 76 mm
Thickness: 17 mm

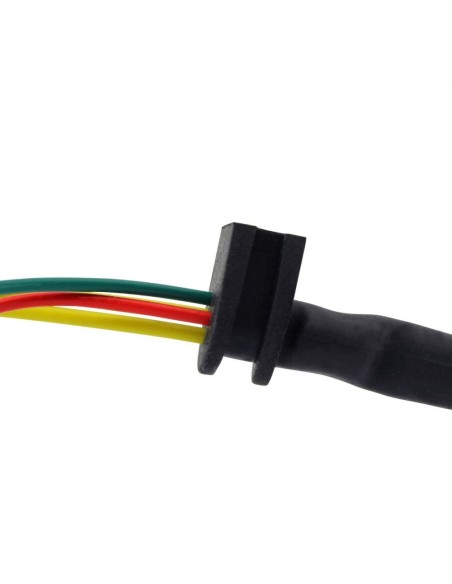

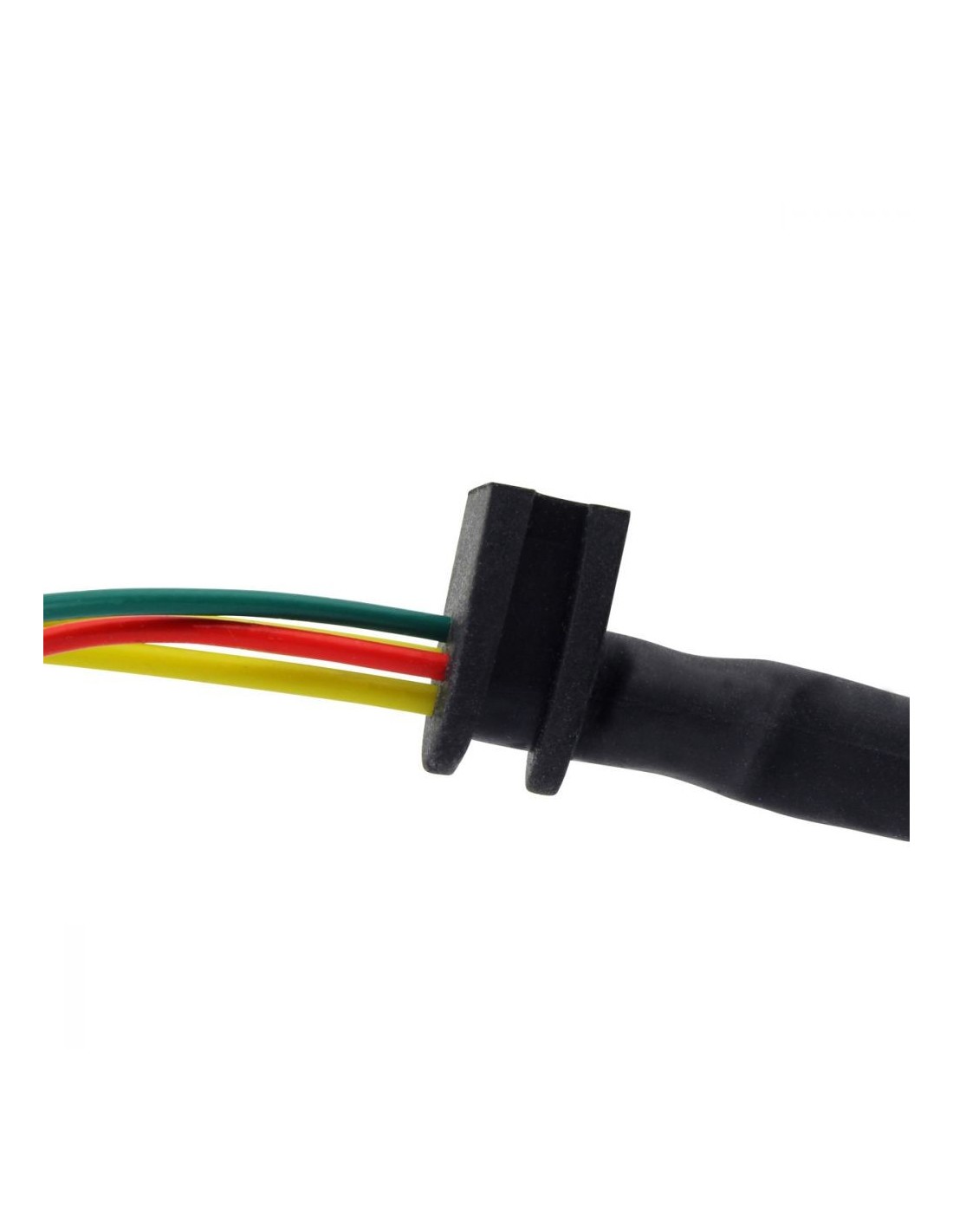

Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 510 mm
Length of pickup coil's wire to grommet: 100 mm

Other specifications:

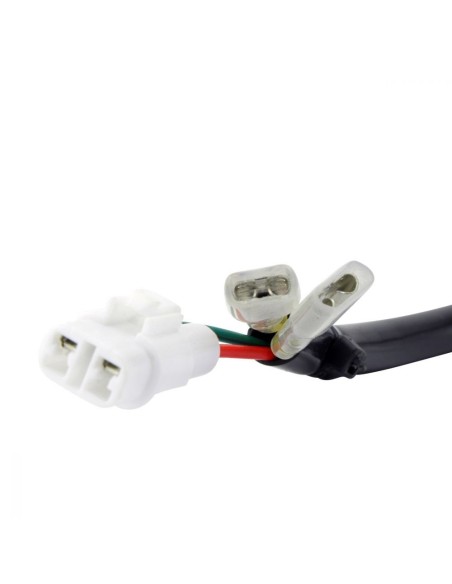

Number of wires: 4
Number of plugs: 1
Number of pins: 4

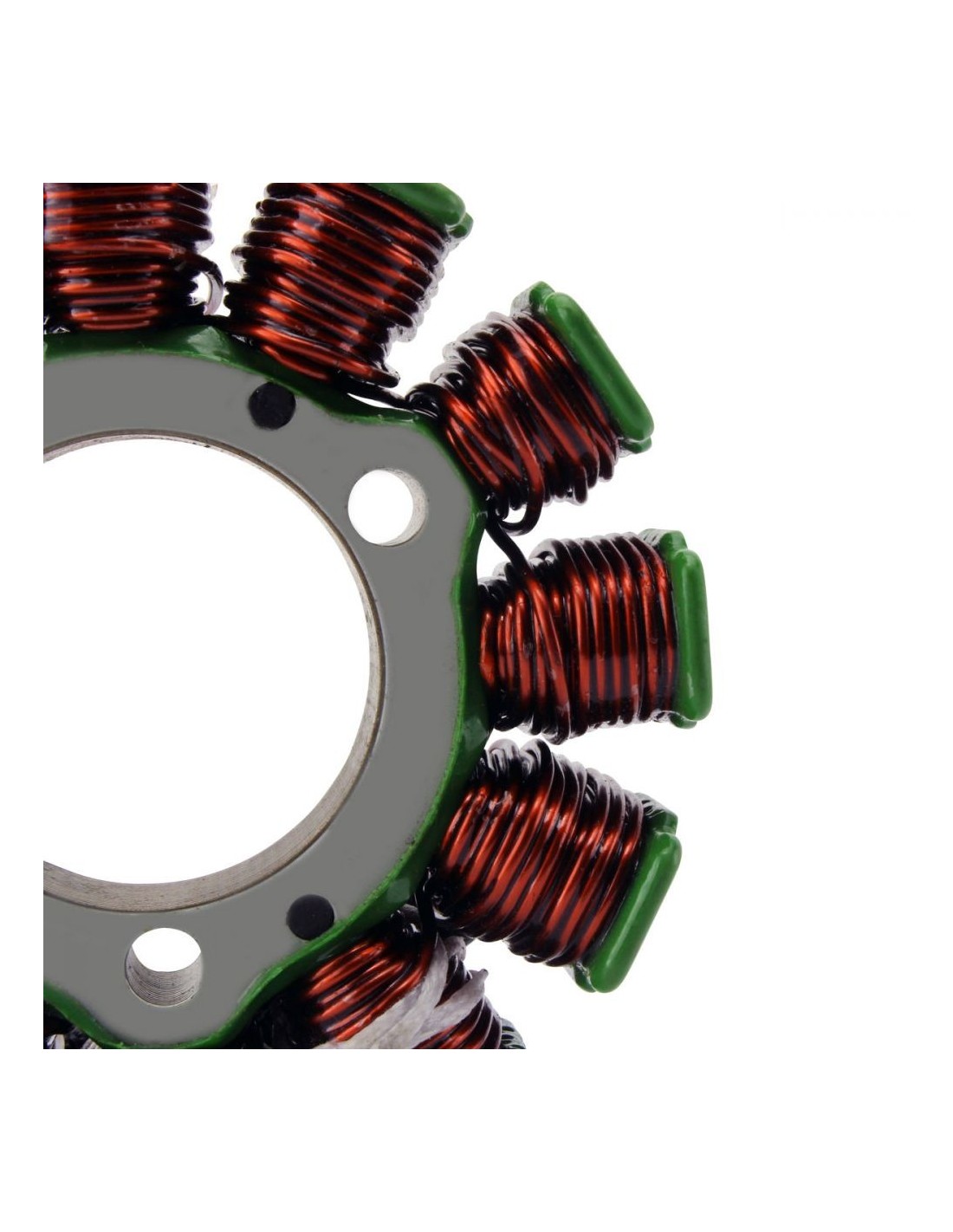

Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +-20%
Alternator: Yellow to ground = O.L

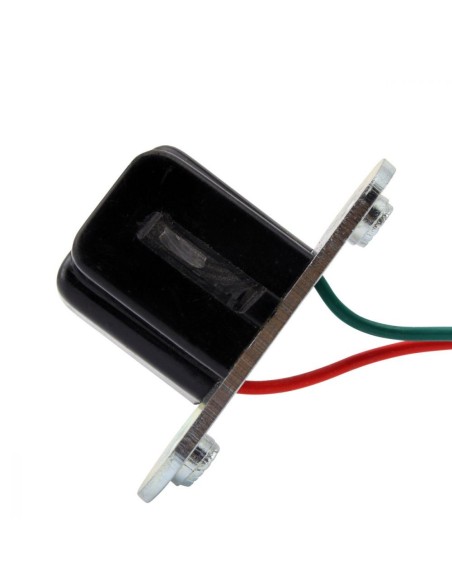

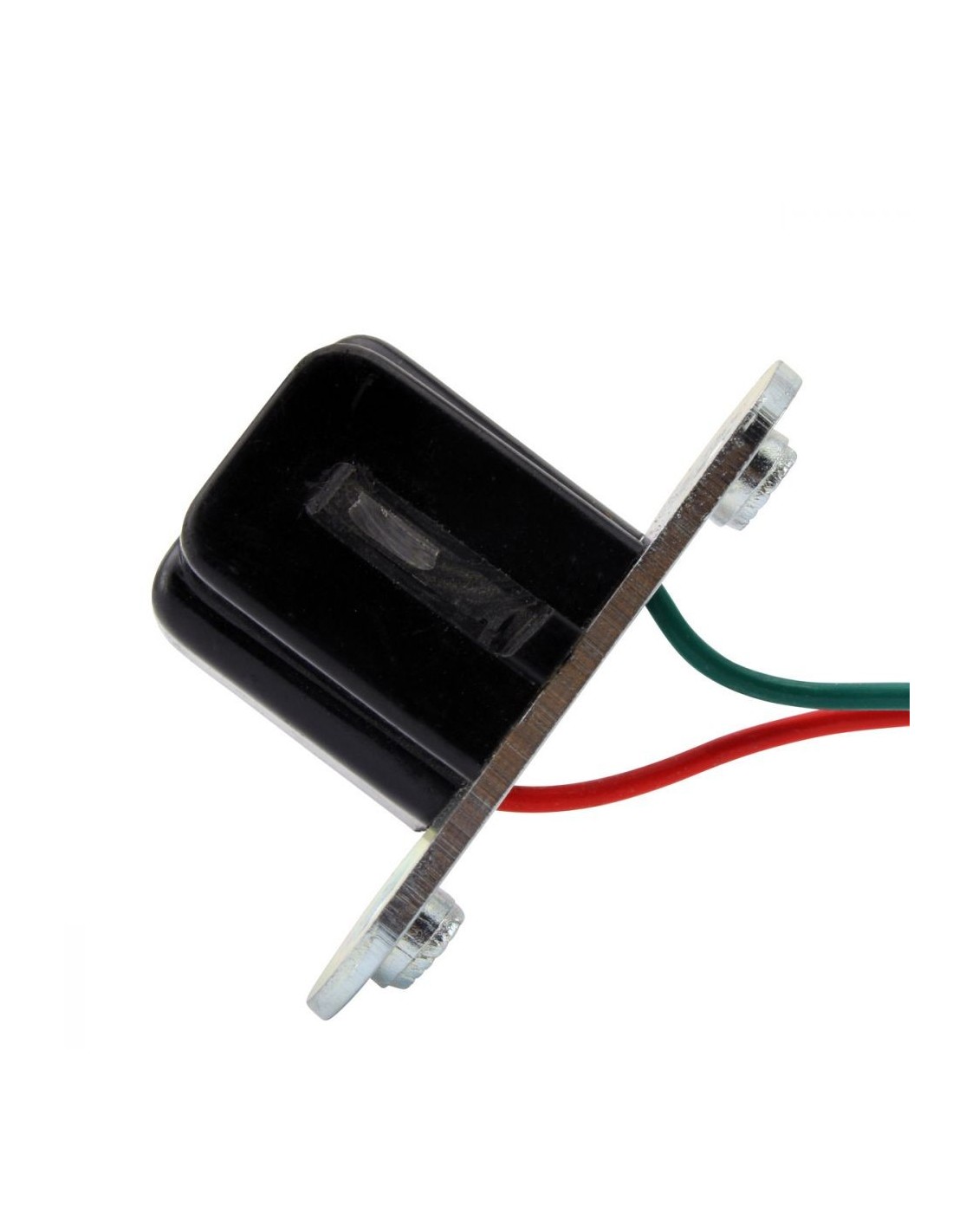

Pickup: Green to Red = 133 ohms +-20%
