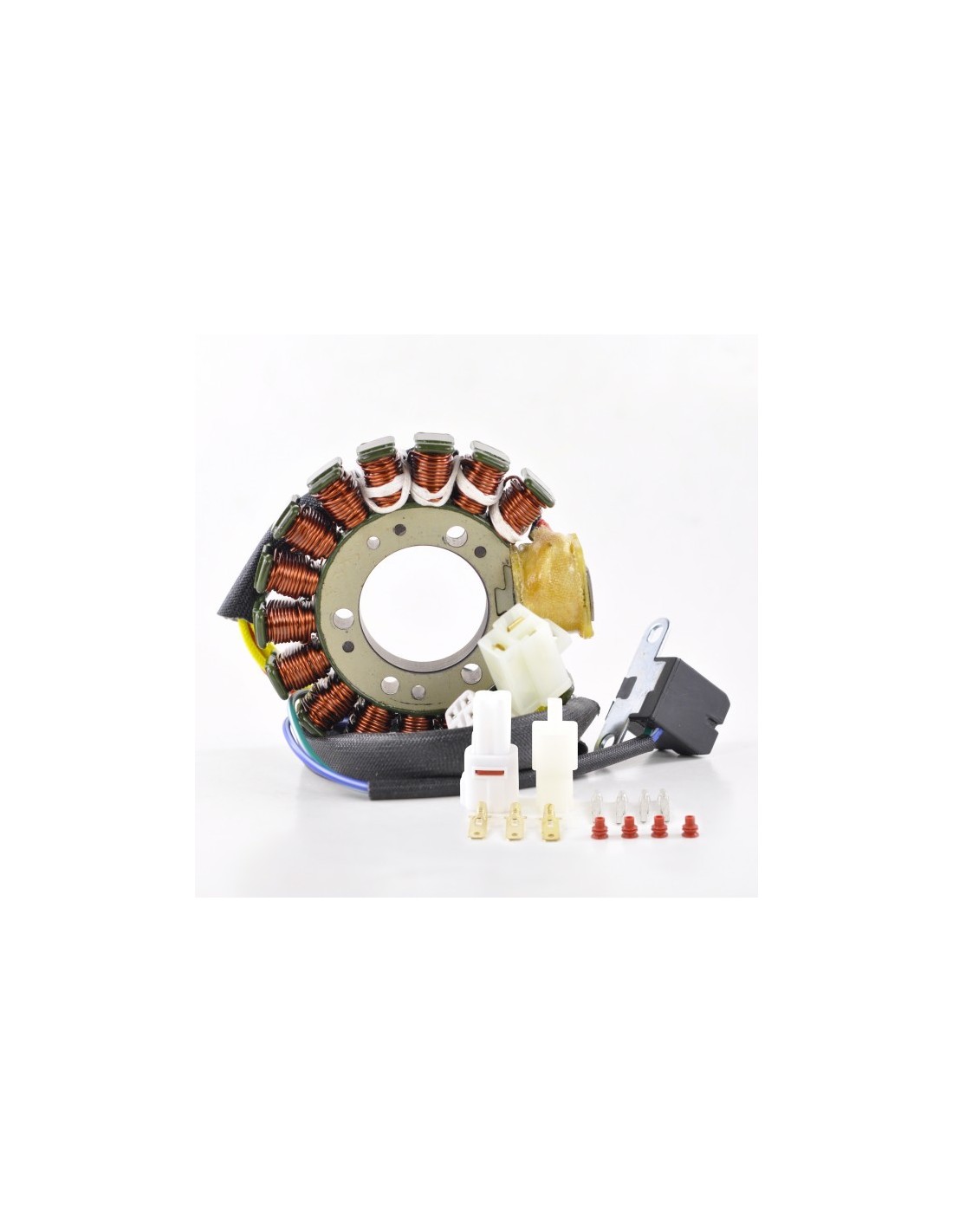

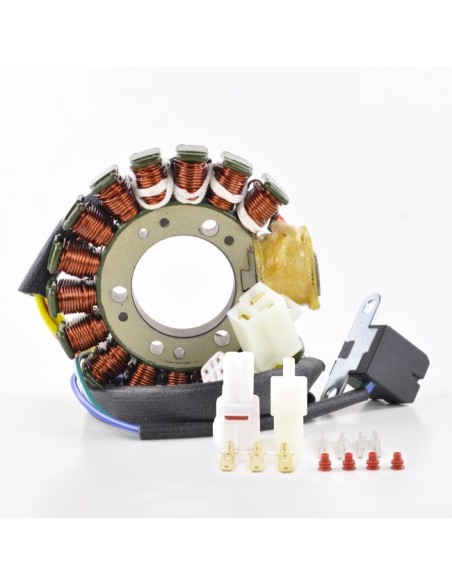

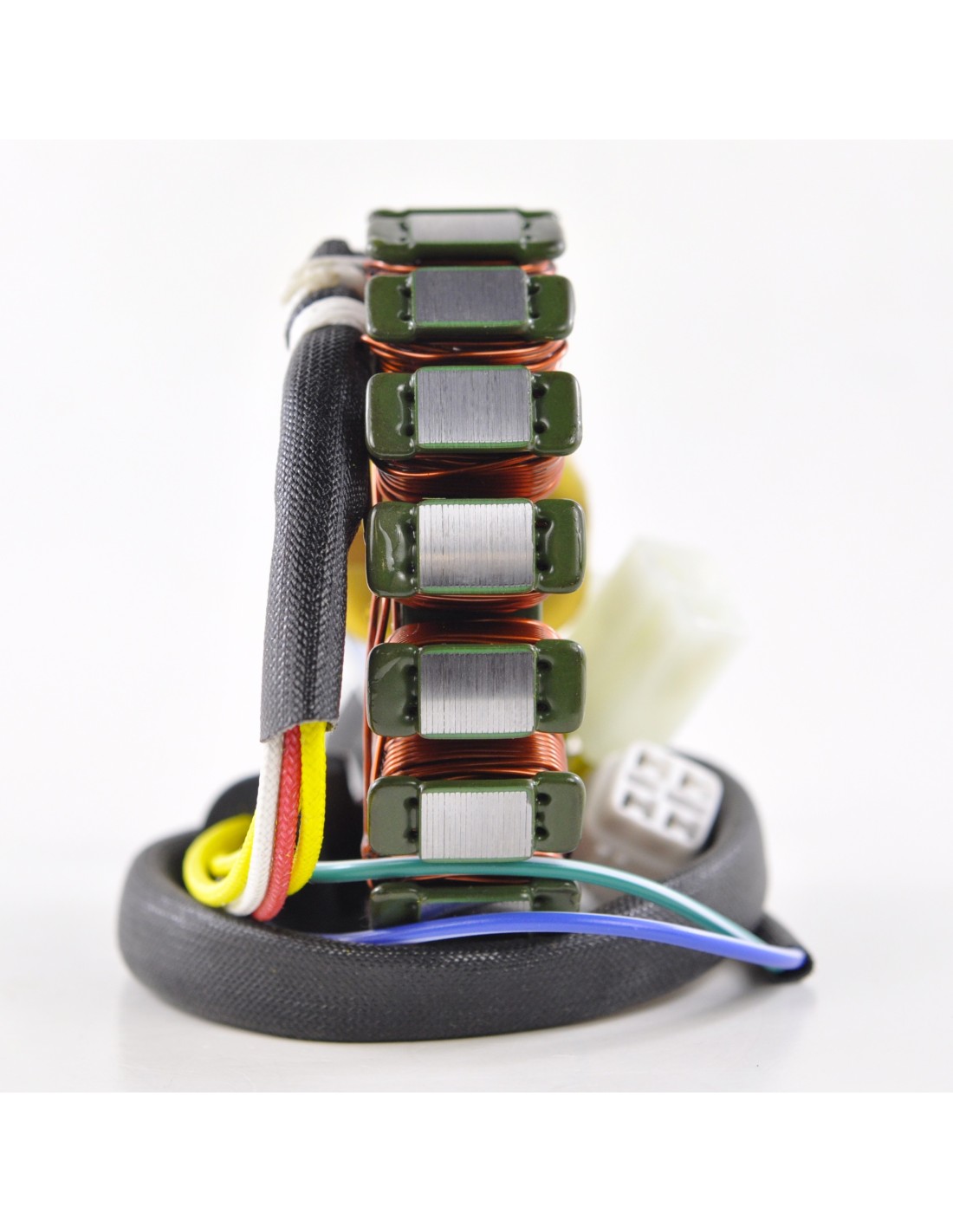

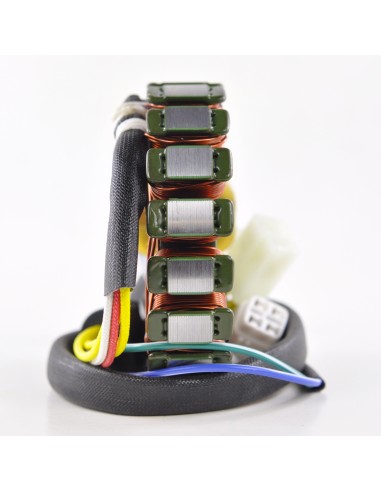

Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00
Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00

Stator Yamaha 250 Bear Tracker OEM 4BD-85510-20-00 59V-85510-20-00

CARM01298
7-8 Days
€214.00
Tax included

OEM 4BD-85510-20-00 59V-85510-20-00


    • Stator Resistant to 200 degrees Celsius

      1999 Yamaha YFM 250 Bear Tracker California
      2000 Yamaha YFM 250 Bear Tracker California
      1999 Yamaha YFM 250 Bear Tracker
      2000 Yamaha YFM 250 Bear Tracker

      OEM
      4bd-85510-20-00
      59v-85510-20-00

    • Dimensions :
      Interior diameter : 33 mm
      Exterior diameter : 93 mm
      Thickness : 15 mm
      Length of wires stator to grommet : 95 mm
      Length of wires grommet to plug : 325 mm
      Length of pickup coil's wire to grommet : 130 mm

      Other specifications :
      Number of wires : 7

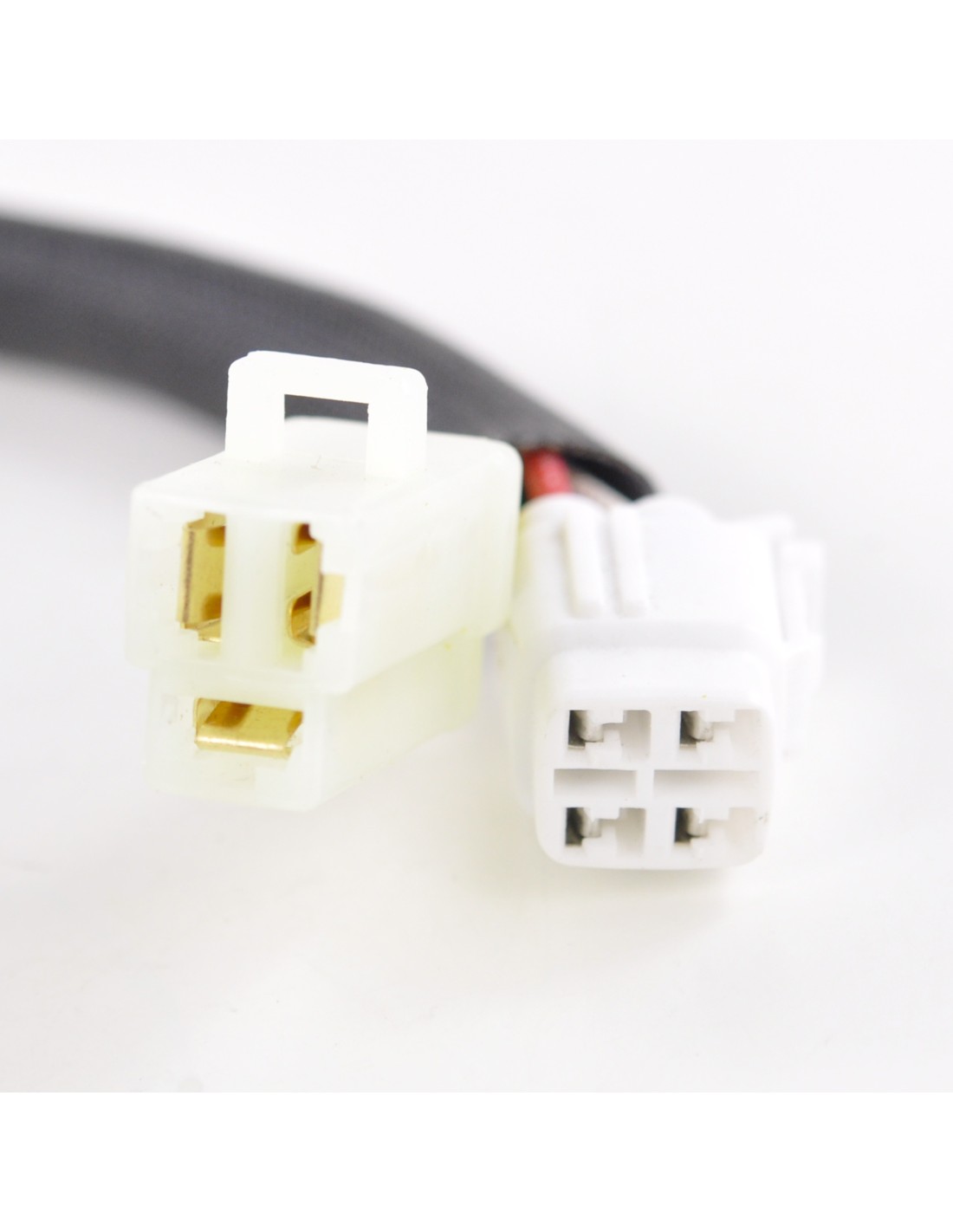

      Number of plugs : 2
      Number of pins : 7

      Wire to wire resistance :
      Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
      Alternator : YellowTo Ground = 0.L
      Pickup : Green to Blue = 200ohms +/-20%
      Source : Red to White = 320ohms +/-20%
