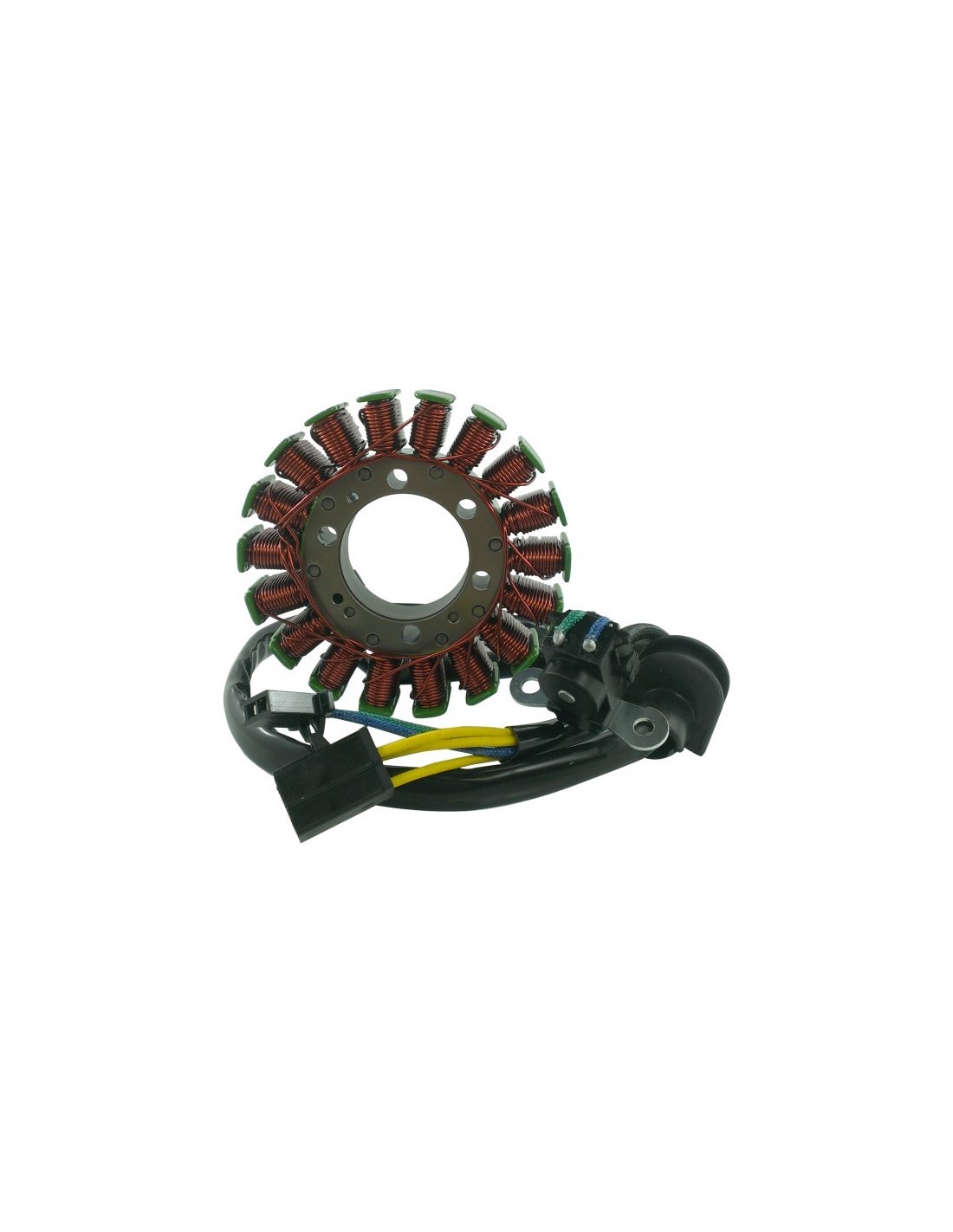

Stator Suzuki 250 400 Burgman OEM 32101-14G00
CARMS010-104824
7-8 Days
€229.00
Tax included
OEM 32101-14G00
Stator
2006 Suzuki Burgman AN 250
2006 Suzuki Burgman AN 400
2005 Suzuki Burgman AN 250
2005 Suzuki Burgman AN 400
2004 Suzuki Burgman AN 250
2004 Suzuki Burgman AN 400
2003 Suzuki Burgman AN 250
2003 Suzuki Burgman AN 400
2006 Suzuki Burgman AN 400
2005 Suzuki Burgman AN 250
2005 Suzuki Burgman AN 400
2004 Suzuki Burgman AN 250
2004 Suzuki Burgman AN 400
2003 Suzuki Burgman AN 250
2003 Suzuki Burgman AN 400
OEM 32101-14G00
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 550 mm
Length of pickup coil's wire to grommet : 50 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 250 ohms +-20%
Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 250 ohms +-20%
