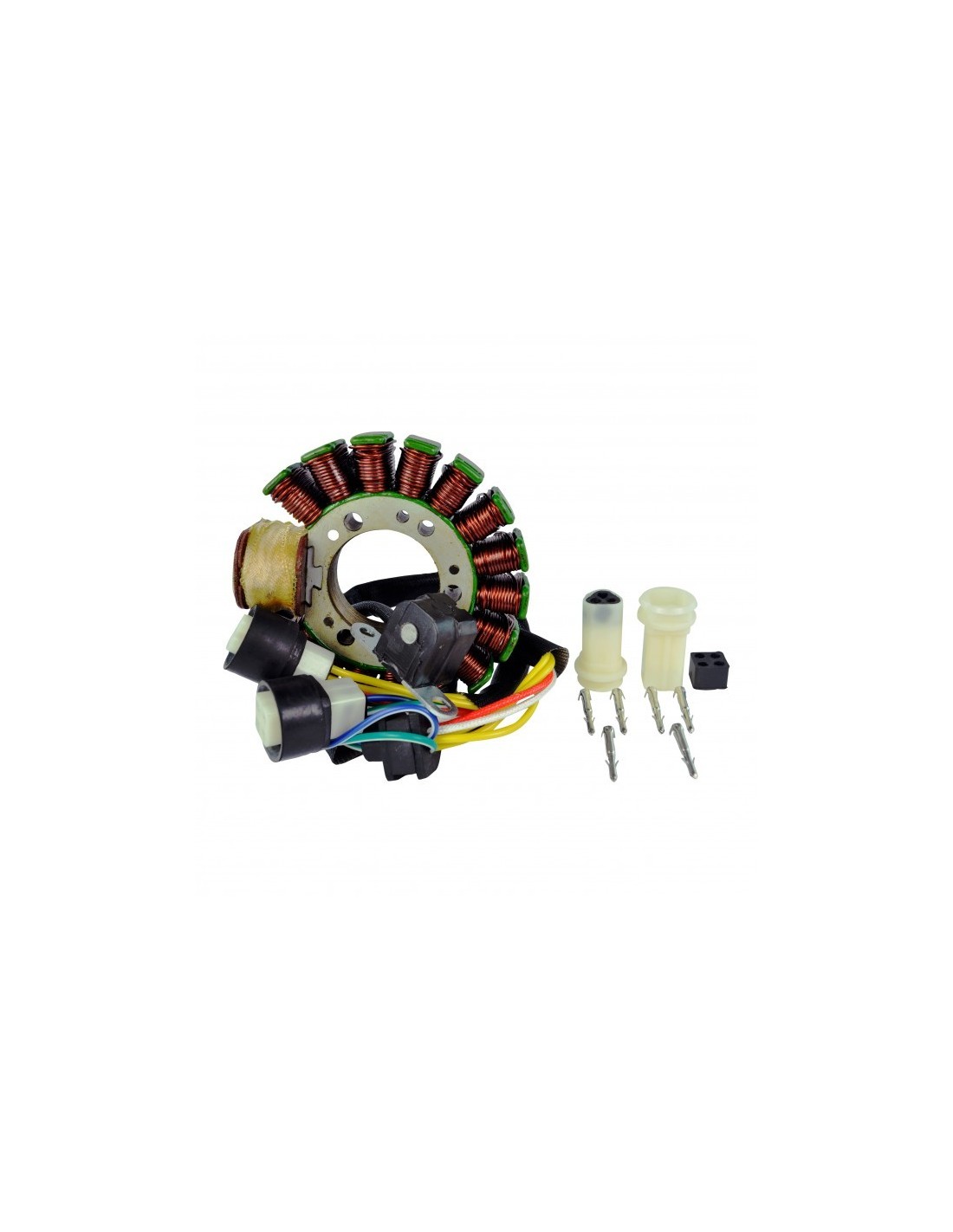

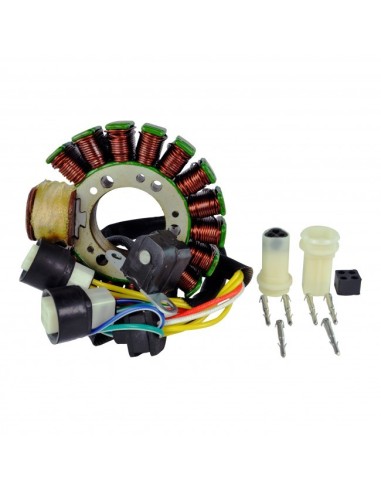

Stator Yamaha YFM 225 250 Moto 4 OEM 59V-85510-20-00
CARM01298B
2-4 Days
€250.80
Tax included
- OEM 59V-85510-20-00
Stator
Yamaha YFM 225 250 Moto 4 1986-1991
OEM
59V-85510-20-00
Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 16mm
Length of wires stator to grommet : 85mm
Length of wires grommet to plug : 300mm
Length of pickup coil's wire to grommet : 155mm
Other specifications :
Number of wires : 7

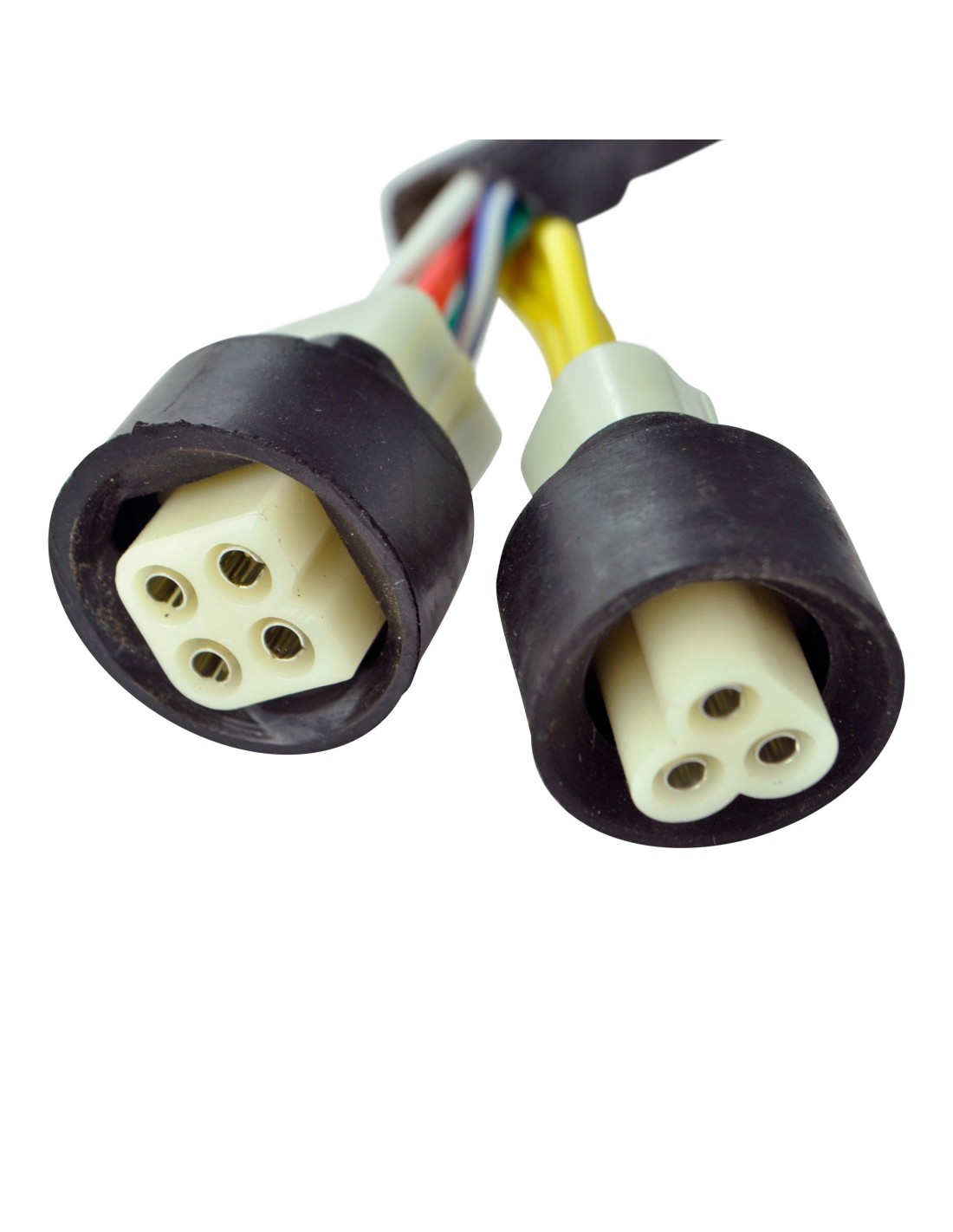

Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Green to Blue = 440ohms +/-20%
Pickup 2 : Red to White = 340ohms +/-20%
