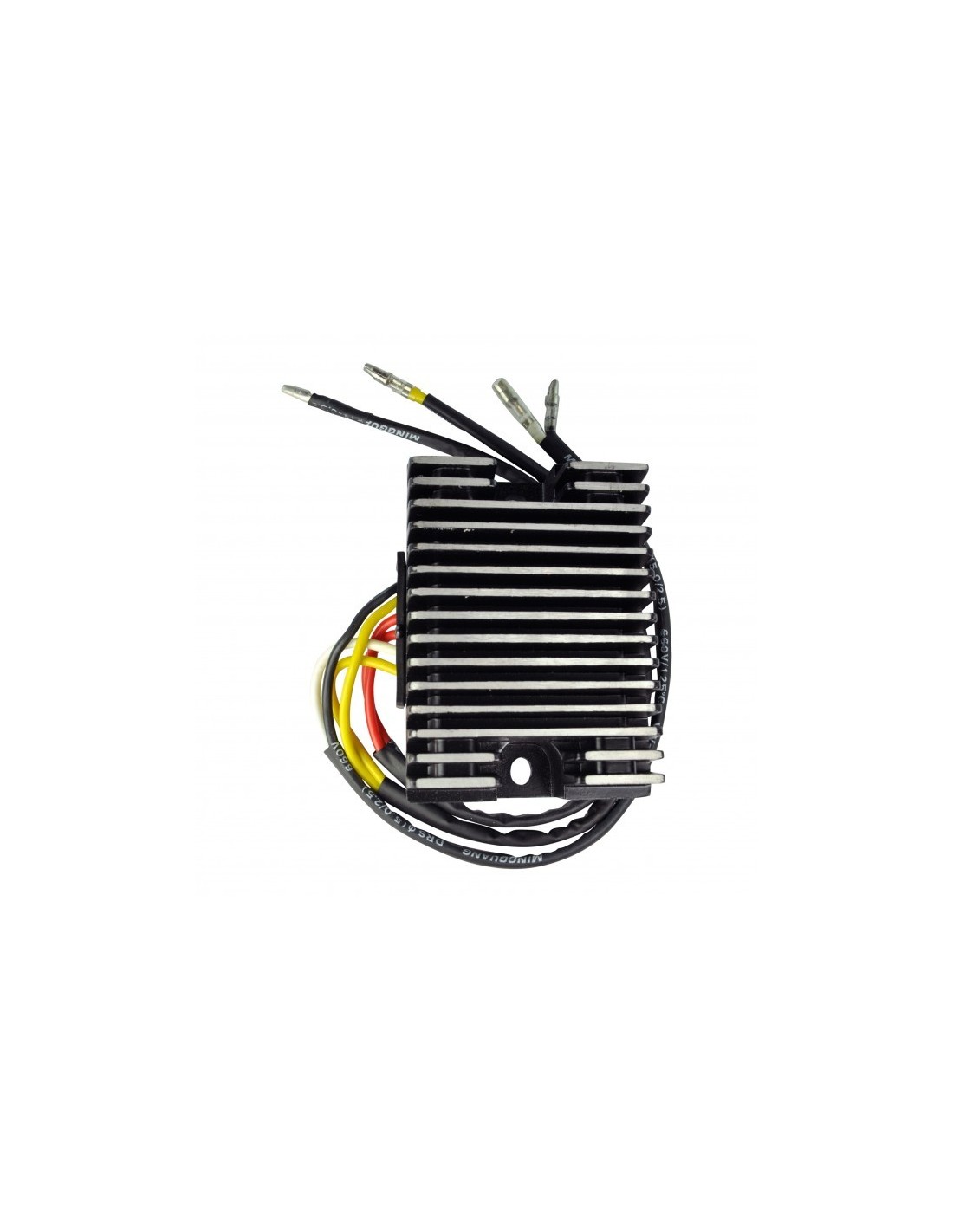

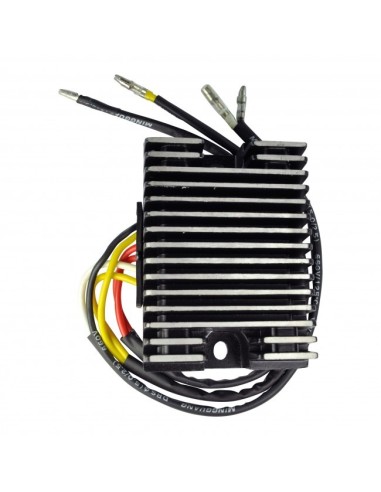

Regulator Rectifier-Ducati-Multistrada 1200

Regulator Rectifier

2010

    Ducati
        Multistrada 1200
            Motorcycle 2010 Ducati Multistrada 1200

OEM replacement , direct fit, Plug-and-play, minor modifications
A/C Regulator Rectifier
Redesigned with high quality components, the quality and performance exceeds the OEM euipment
Shaped heat sink, keep cooler when high RPM
Shunt type Regulator,reliable quality, save energy and gasoline consumption
The cables resist to high temperature
All products shipped are tested

Dimensions:

Width: 103 mm

Length: 68 mm

Height: 37 mm

Wires length: 280 mm

Distance between fixation holes center to center: 90 mm

Other specifications:

Number of plugs: 5

Number of pins: 6

Number of wires: 6

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: <15 V

Operation Temperature: -20°C to 85°C

Please Note: This regulator is used on many various Ducati models. The wire function of our regulator is described below:

Yellow wires: Stator AC in

Red wire: Battery positive

Black wire: Keyswitch+12V

White wire: Charge warning dash indicator light

OEM 69920831B

69920821B

69920841A

54040081A

54040091A

54040131A

080546758

54010161A

54040011A

037038500
