900W SPLYT Stator Flywheel Regulator Dual Battery Isolator Polaris Ranger 900 1000XP RZR900XP RZR1000 OEM 4017285 4018494

As modern UTV’s are improving every year, it is increasingly common to add accessories to them like stereos, lights, and winches. These are great upgrades, until you are stuck with a dead battery and can’t start the engine! RMSTATOR comes to the rescue with the best and most complete kit available to add a second battery to your UTV to power your accessories and monitor the charge of both batteries right from your dashboard!

The addition of a second battery to your vehicle to power your accessories allows you to safely use them all day without discharging your primary starting battery. If the voltage drops too low on your second battery, it will disconnect and isolate it from the main battery safely and automatically. When the motor is started, the secondary battery will be reconnected and recharged.

Our included LED dual voltmeter installs on your dashboard, and lets you easily monitor the voltage of both batteries. The included wiring harness and relay allow the voltmeter to turn on and off with your keyswitch. Combined with our charging upgrade that provides a tremendous 900W output to allow you to install accessories without draining the original battery, you got the ultimate charging system for your boat load of accessories.

Everything you need for a complete installation is included!

Includes:

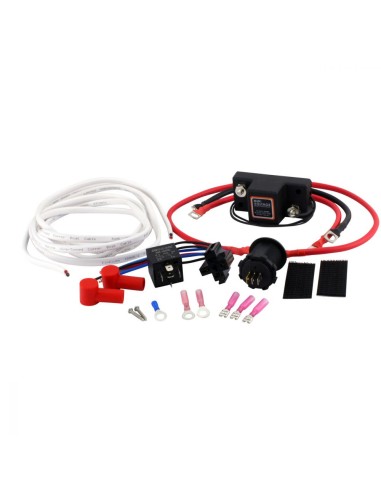

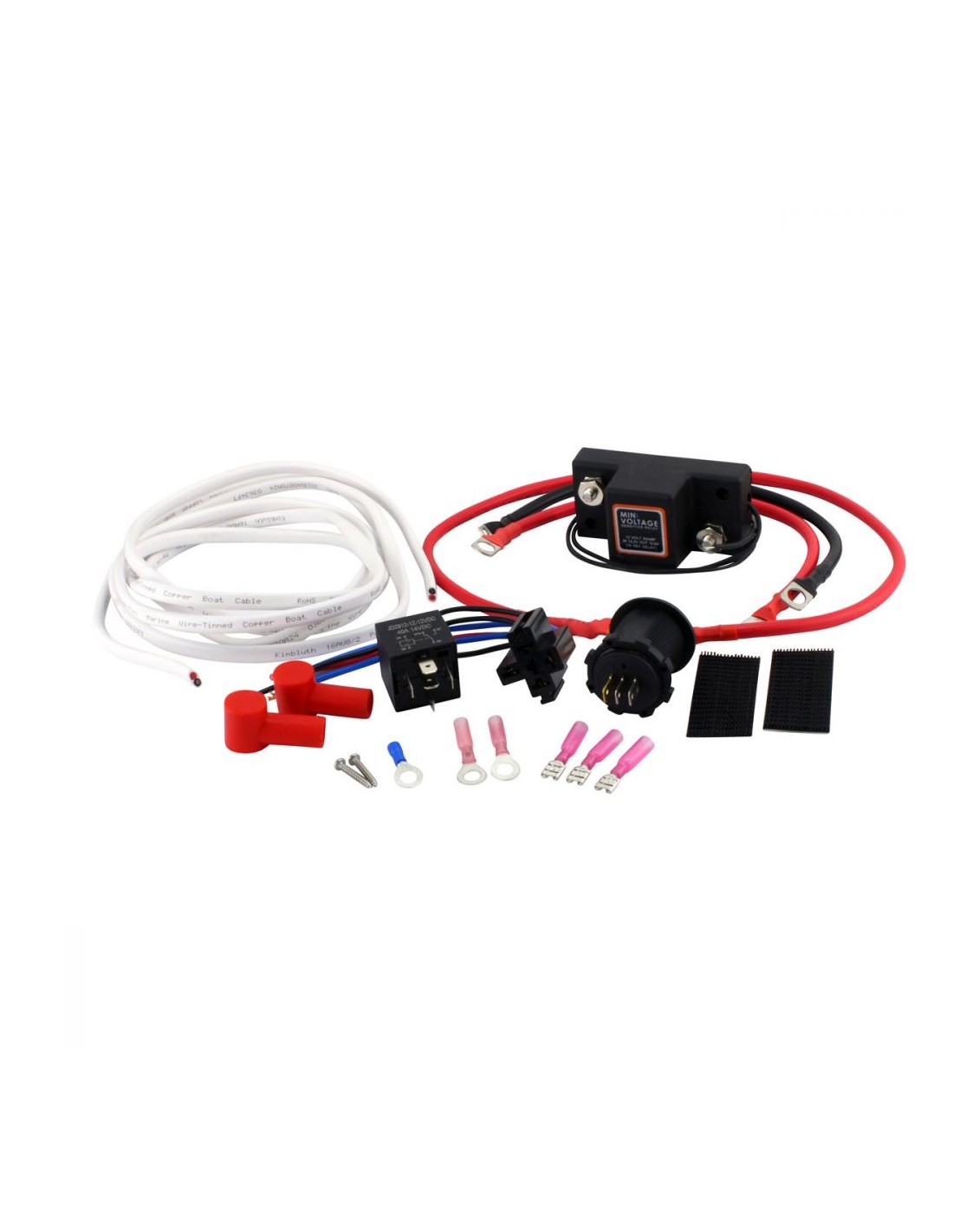

Dual battery isolator relay

12” Black ground battery cable with terminal lugs

12” Red positive battery cable with terminal lugs

18” Red positive battery cable with terminal lugs

Dual Red LED voltmeter (1.4” OD x 1” depth)

Keyswitch voltmeter activation relay with socket and wires

96” wire harness for dual voltmeter connection to relay

Terminals and connectors

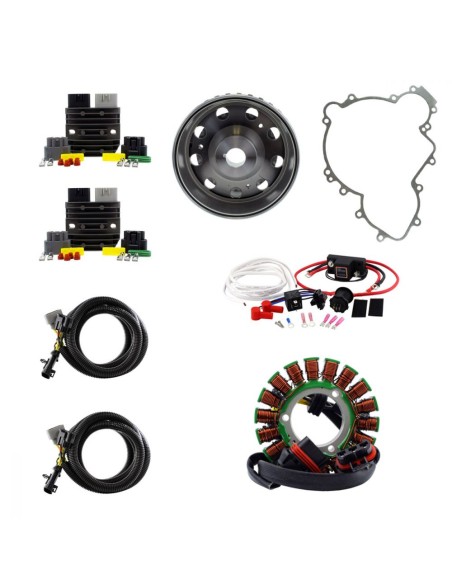

And the other parts of the kit :

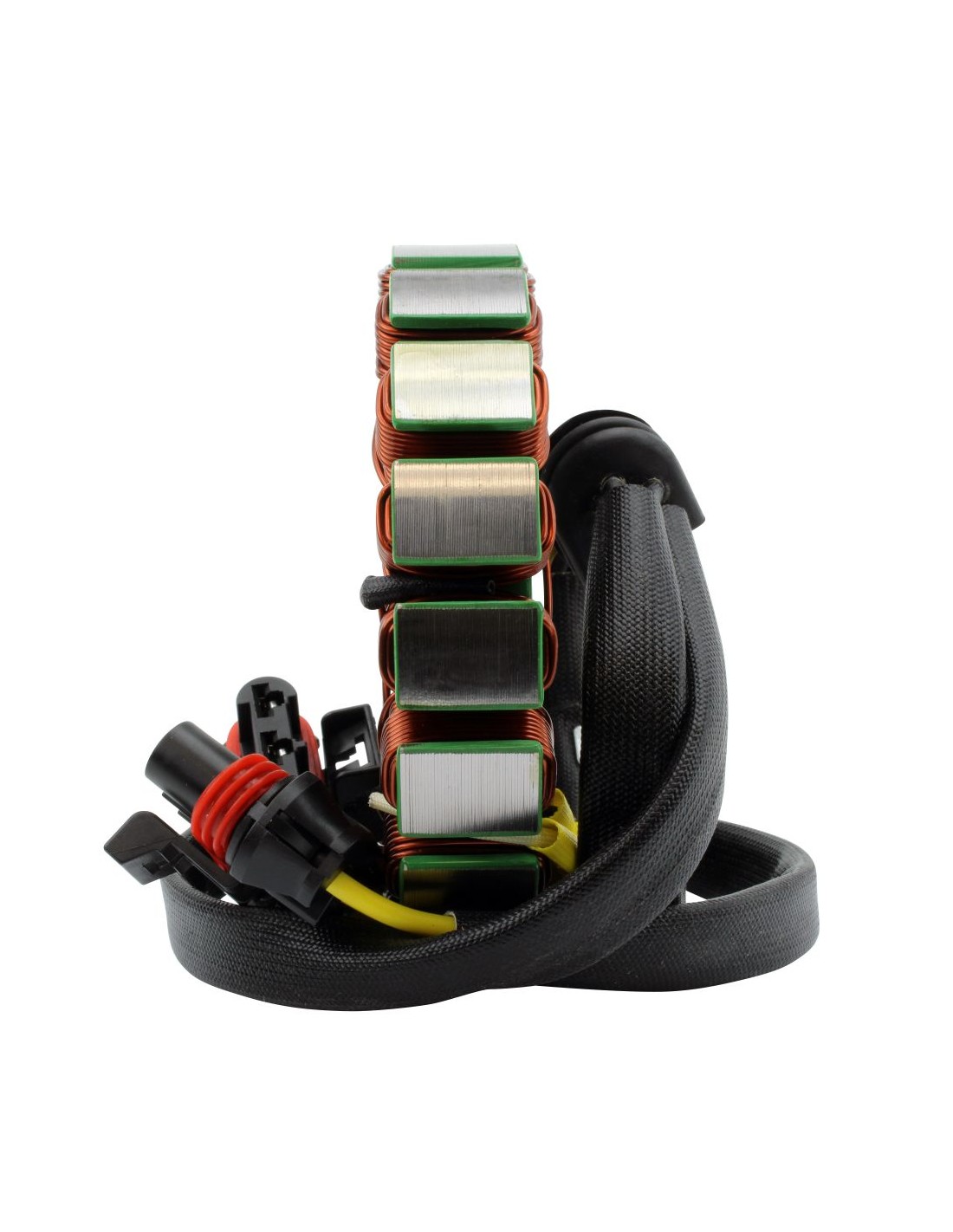

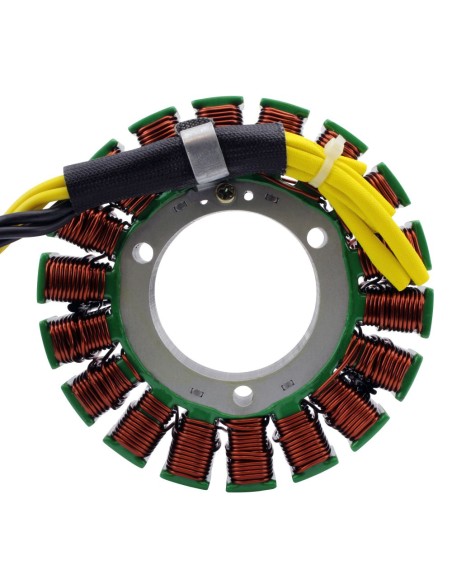

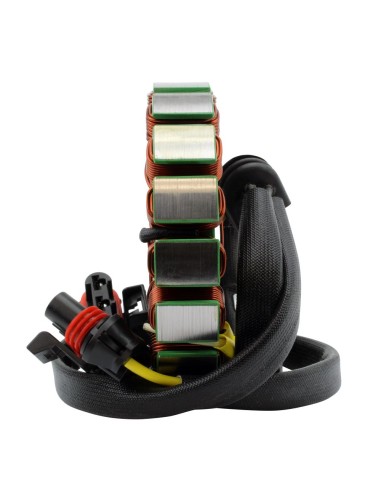

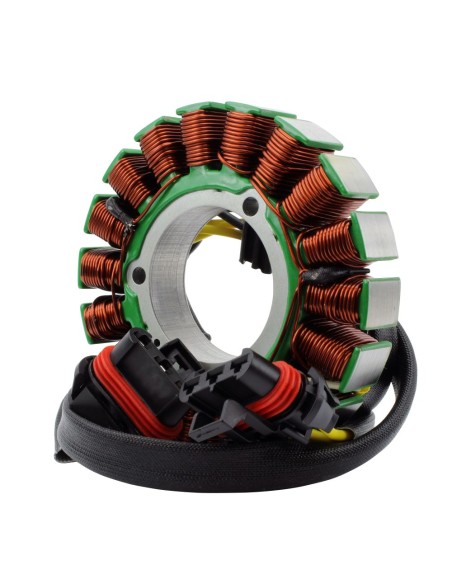

Dual output stator

Flywheel

Two SERIES voltage regulators

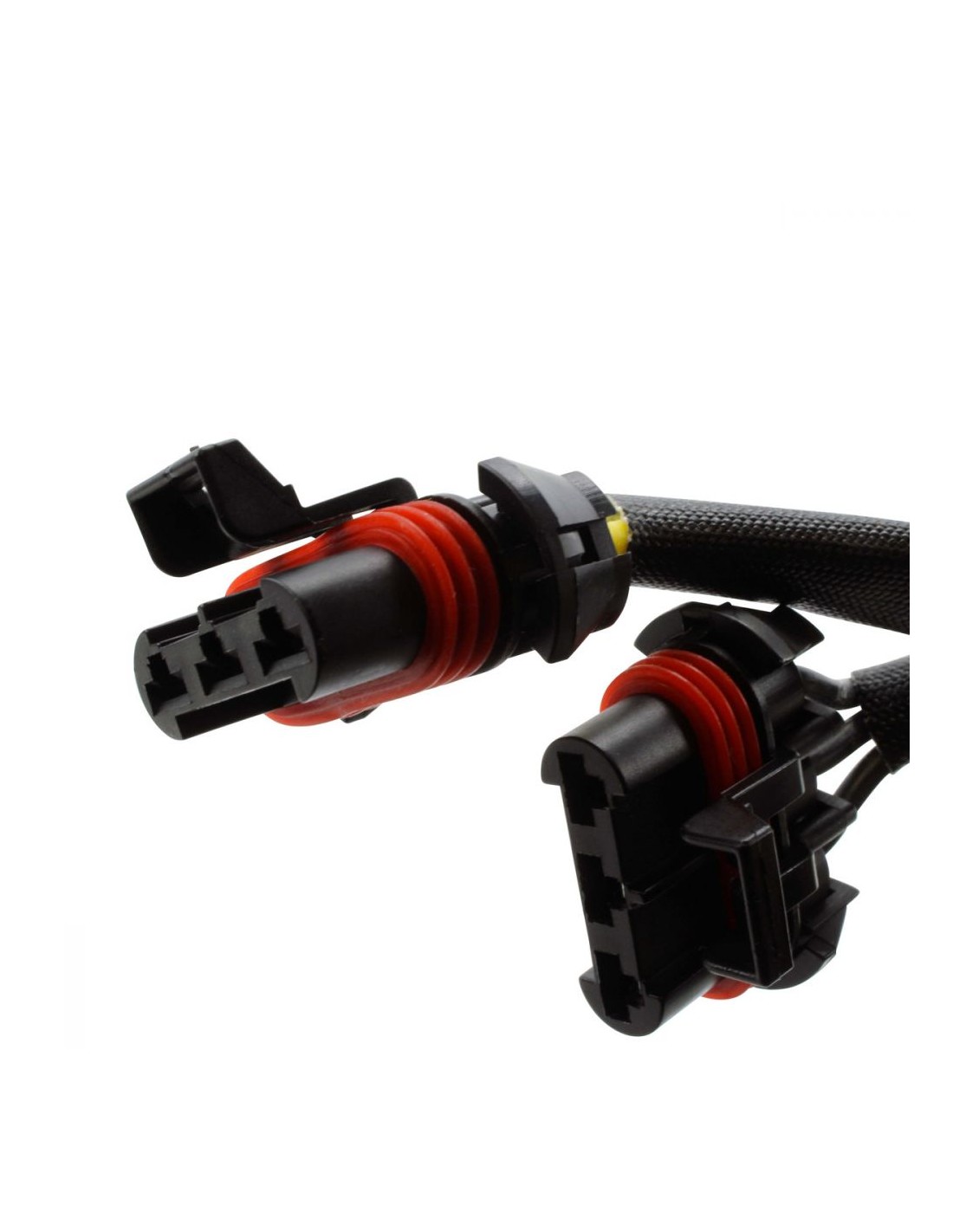

Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors

Complete instructions for voltage regulator relocation

Gasket

2023 Polaris Ranger 1000 XP

2023 Polaris Ranger 1000 Full Size

2023 Polaris RZR PRO XP 4 Ultimate

2023 Polaris RZR PRO XP

2022 Polaris Ranger 1000 XP

2022 Polaris Ranger 1000 Full Size

2022 Polaris RZR Turbo R 4

2022 Polaris RZR PRO XP 4 Ultimate

2022 Polaris RZR PRO XP 4

2022 Polaris RZR PRO XP

2021 Polaris Ranger 1000 XP EPS

2021 Polaris Ranger 1000 XP

2021 Polaris Ranger 1000 Full Size

2021 Polaris RZR PRO XP 4

2021 Polaris RZR PRO XP

2021 Polaris RZR 900 XP Turbo S

2020 Polaris Ranger Crew 1000 XP EPS

2020 Polaris Ranger Crew 1000 XP

2020 Polaris Ranger 1000 XP EPS

2020 Polaris Ranger 1000 XP

2020 Polaris Ranger 1000 Full Size

2020 Polaris RZR PRO XP

2020 Polaris RZR 900 XP Turbo S Velocity

2020 Polaris RZR 900 XP Turbo S

2020 Polaris RZR 4 900 XP Turbo S

2020 Polaris RZR 4 900 XP Turbo

2019 Polaris Ranger Crew 1000 XP

2019 Polaris Ranger 1000 XP

2019 Polaris RZR 900 XP Turbo S

2019 Polaris RZR 900 XP Turbo

2019 Polaris RZR 4 900 XP Turbo

2018 Polaris Ranger Crew 900 XP

2018 Polaris Ranger Crew 1000 XP

2018 Polaris Ranger 900 XP

2018 Polaris Ranger 900

2018 Polaris Ranger 1000 XP

2018 Polaris RZR 900 XP Turbo S

2018 Polaris RZR 900 XP Turbo

2018 Polaris RZR 900

2018 Polaris RZR 4 900 XP Turbo

2018 Polaris RZR 4 900

2018 Polaris RZR 4 1000 XP

2018 Polaris RZR 1000 XP

2018 Polaris General 4 1000

2018 Polaris General 1000

2018 Polaris ACE 900

2017 Polaris Ranger Crew 900 XP

2017 Polaris Ranger Crew 900

2017 Polaris Ranger Crew 1000 XP

2017 Polaris Ranger 900 XP

2017 Polaris Ranger 900

2017 Polaris Ranger 1000 XP

2017 Polaris RZR 900 XP Turbo

2017 Polaris RZR 900 S

2017 Polaris RZR 900

2017 Polaris RZR 4 900 XP Turbo

2017 Polaris RZR 4 900

2017 Polaris RZR 4 1000 XP

2017 Polaris RZR 1000 XP

2017 Polaris RZR 1000

2017 Polaris General 4 1000

2017 Polaris General 1000

2017 Polaris ACE 900

2016 Polaris Ranger Crew 900

2016 Polaris Ranger 900 XP

2016 Polaris RZR 900 XP Turbo

2016 Polaris RZR 900 S

2016 Polaris RZR 900

2016 Polaris RZR 4 900 XP Turbo

2016 Polaris RZR 4 900

2016 Polaris RZR 4 1000 XP

2016 Polaris RZR 1000 XP

2016 Polaris RZR 1000

2016 Polaris General 1000

2016 Polaris ACE 900

2015 Polaris Ranger Crew 900

2015 Polaris Ranger 900 XP

2015 Polaris RZR 900 S

2015 Polaris RZR 900

2015 Polaris RZR 4 900 XP

2015 Polaris RZR 4 900

2015 Polaris RZR 4 1000 XP

2015 Polaris RZR 1000 XP

2014 Polaris Ranger Crew 900

2014 Polaris Ranger 900 XP

2014 Polaris RZR 900 INTL

2014 Polaris RZR 900

2014 Polaris RZR 4 900 INTL

2014 Polaris RZR 4 900

2014 Polaris RZR 4 1000 XP

2014 Polaris RZR 1000 XP INTL

2014 Polaris RZR 1000 XP

2013 Polaris Ranger 900 XP

2013 Polaris RZR 900 XP

2013 Polaris RZR 4 900 XP

2013 Polaris RZR 4 900 INTL

2009 Polaris RZR 800 S

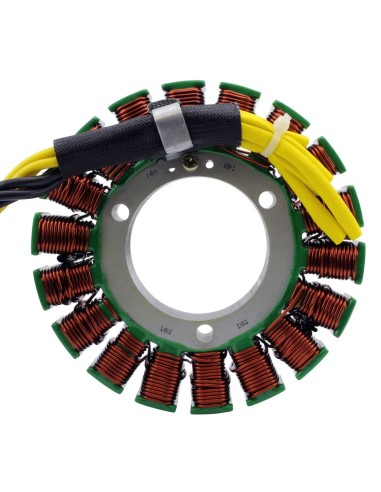

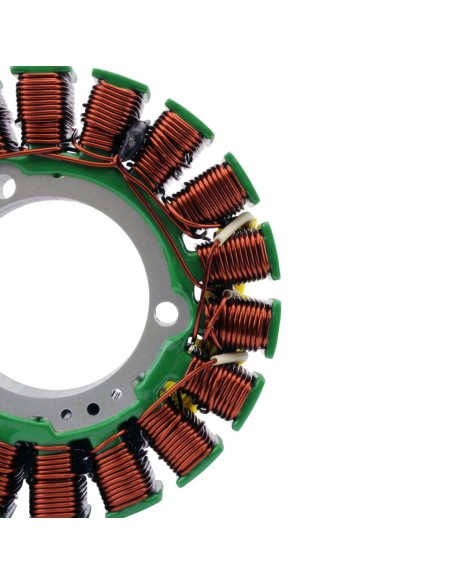

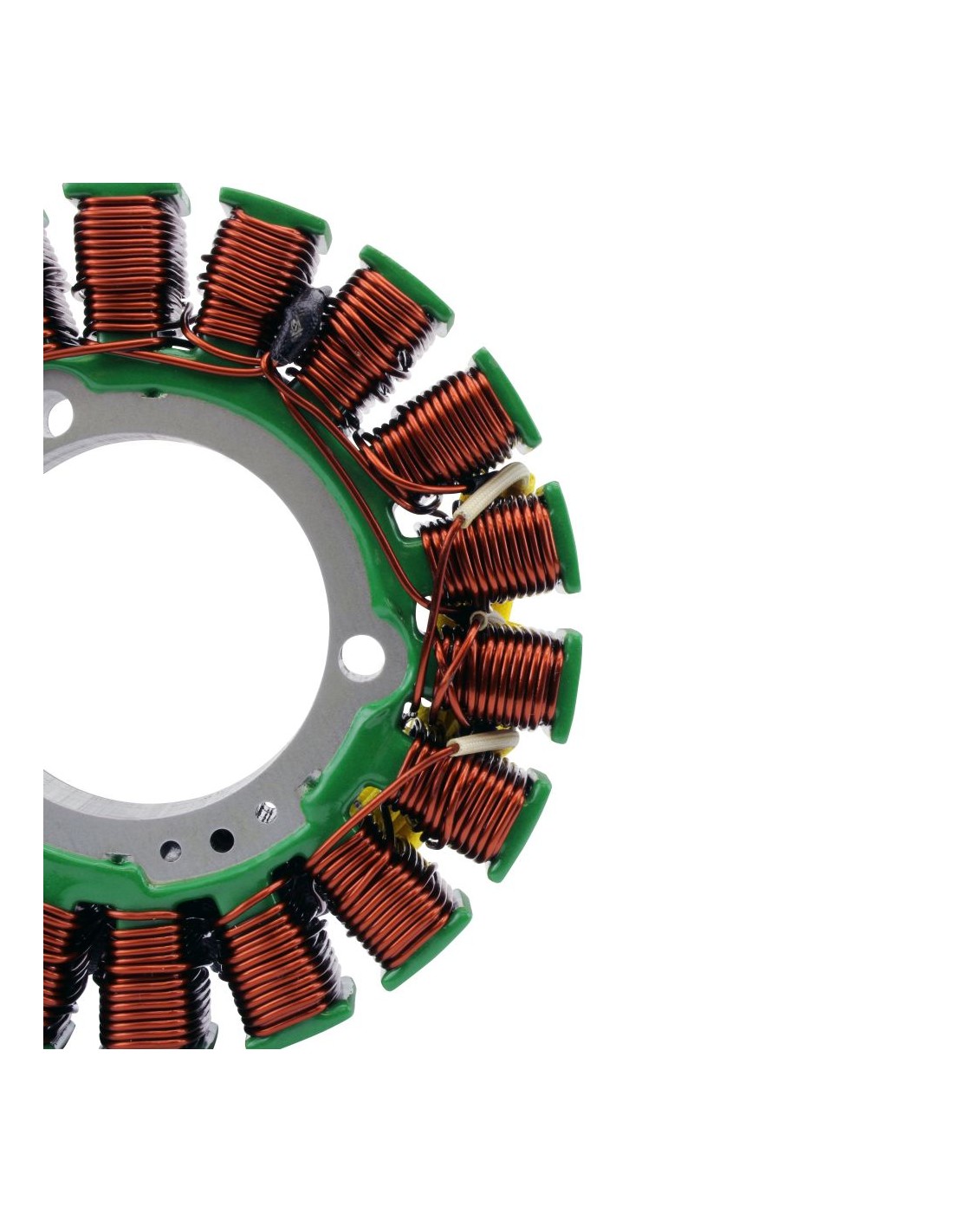

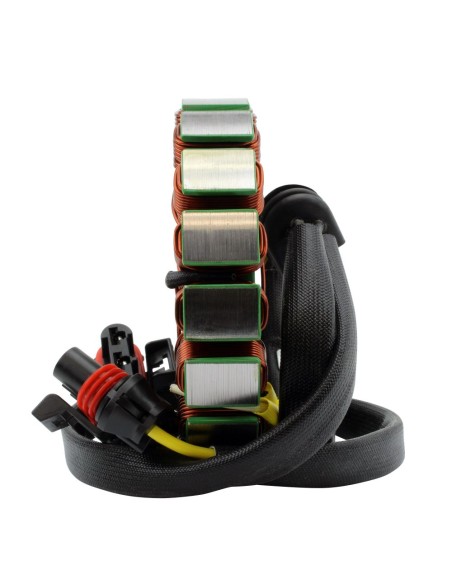

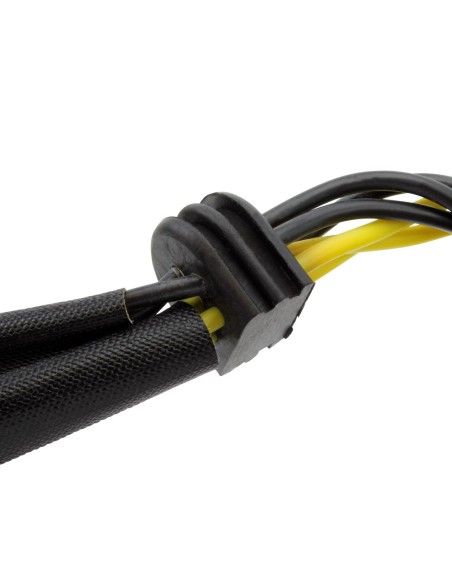

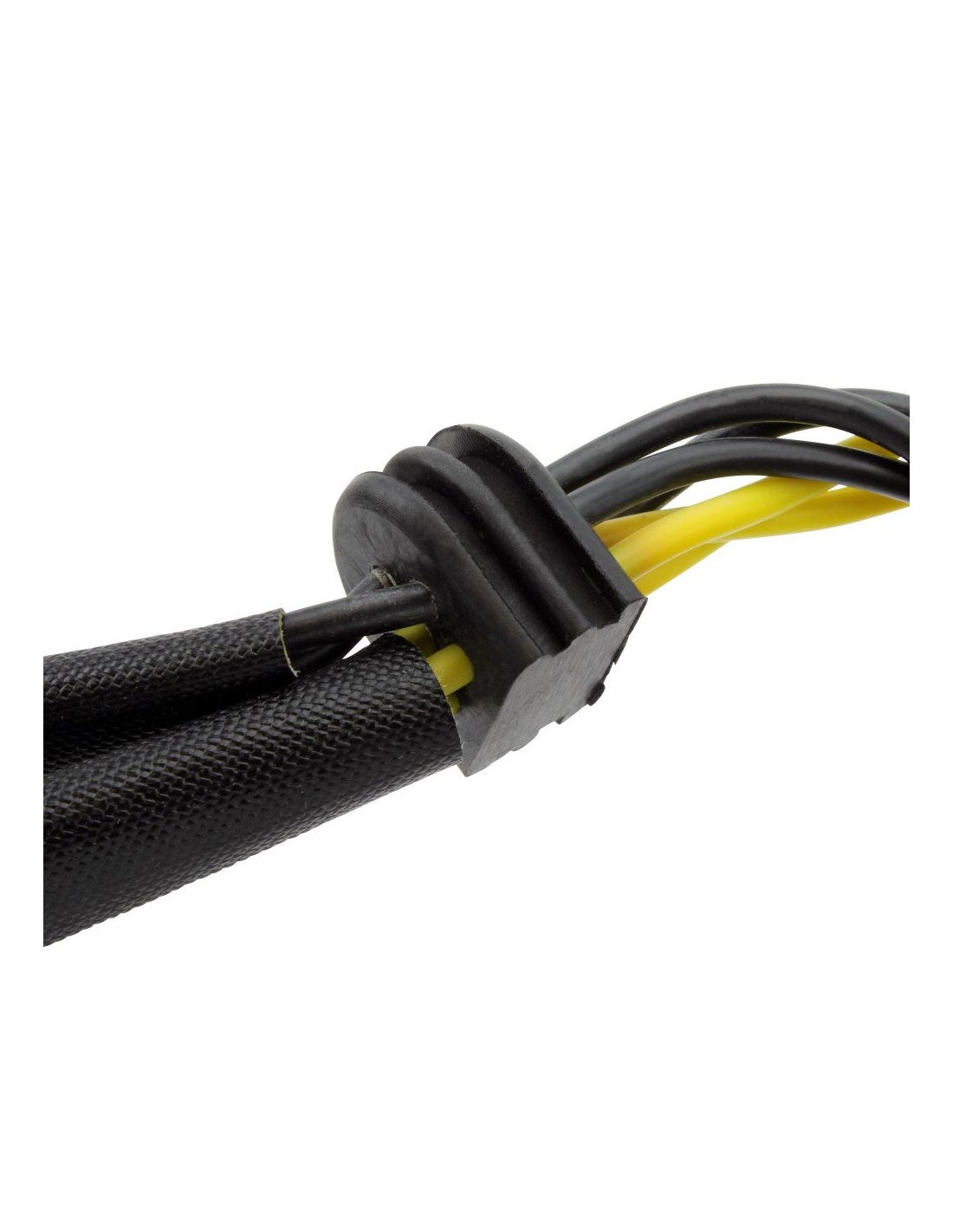

Dual Stator Dimensions

Interior diameter : 53 mm

Exterior diameter : 125 mm

Thickness : 26 mm

Length of wires stator to grommet : 125 mm

Length of wires grommet to plug : 290 mm & 550 mm

Other specifications :

Number of wires : 6

Number of plugs : 2

Number of pins : 6

Number of poles : 18

Wire to wire resistance :

Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%

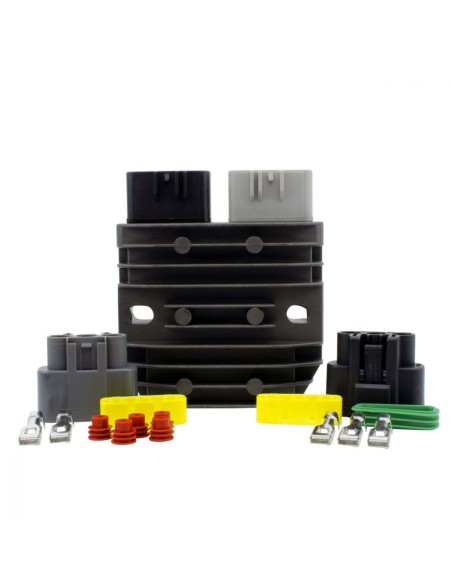

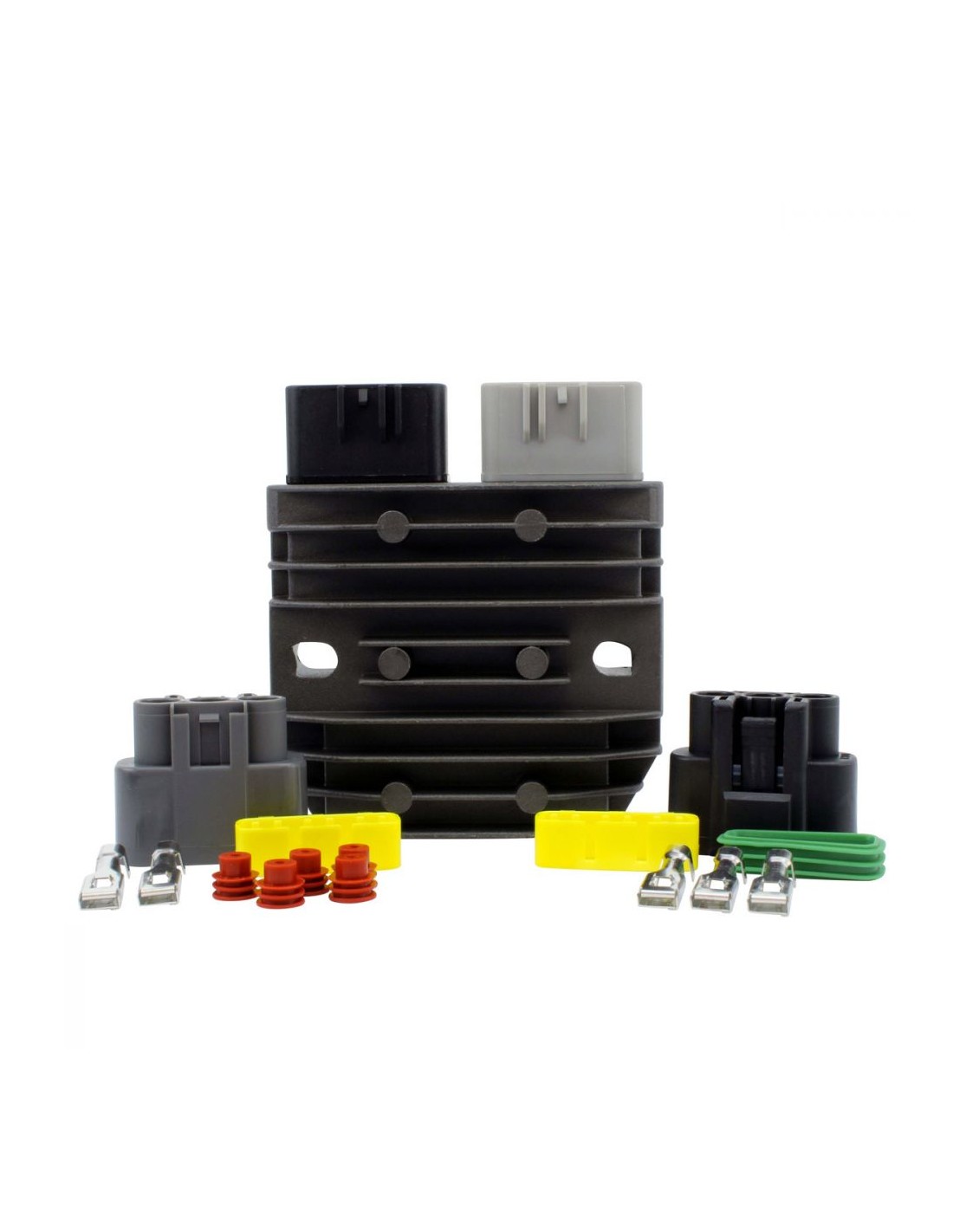

Regulator Dimensions

Width: 84 mm

Length: 90 mm

Height: 32 mm

Fixation holes center to center: 69 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20º to 85º

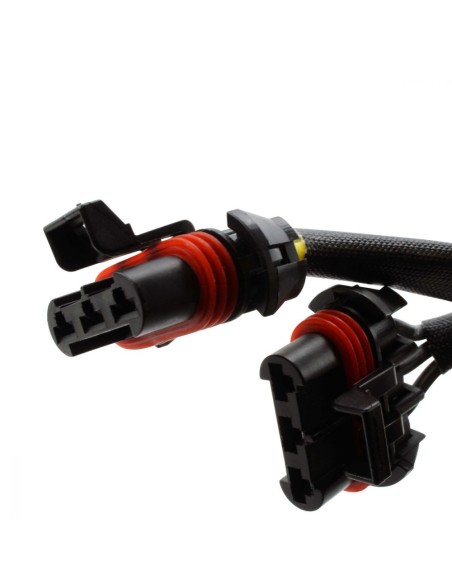

Relocation Harness Dimensions

Wires length : 2400 mm

Number of yellow wires : 3

Number of red wires : 1

Number of black wires : 1

Number of plugs : 2

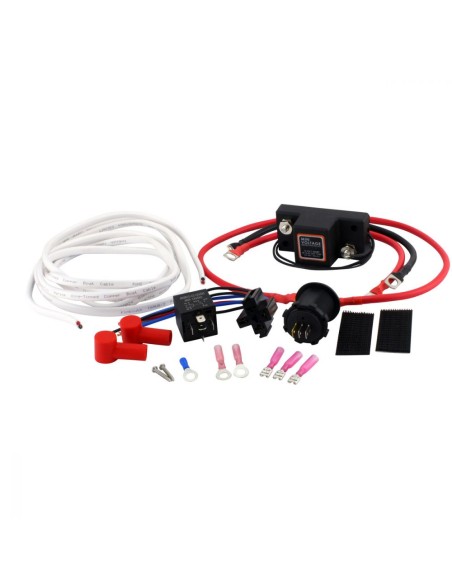

Complete Dual Battery Isolator Connection and Metering Kit

Dual battery isolator relay

12” Black ground battery cable with terminal lugs

12” Red positive battery cable with terminal lugs

18” Red positive battery cable with terminal lugs

Dual Red LED voltmeter (1.4” OD x 1” depth)

Keyswitch voltmeter activation relay with socket and wires

96” wire harness for dual voltmeter connection to relay

Terminals and connectors

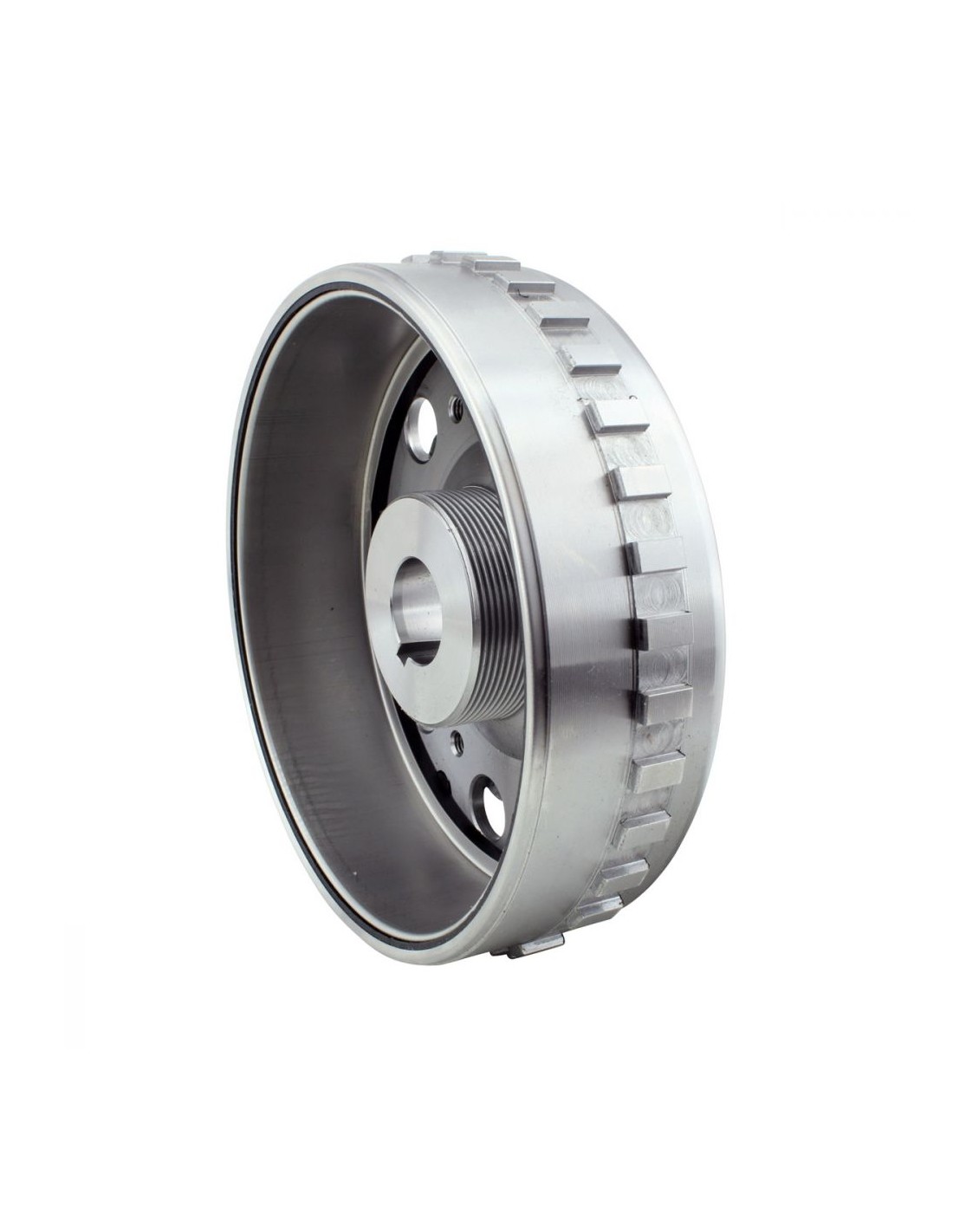

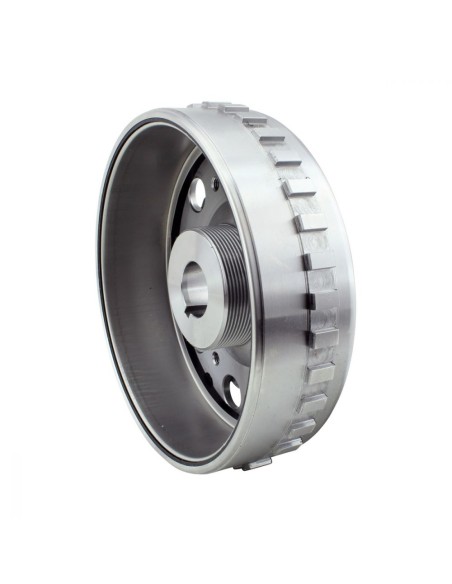

Specifications of Flywheel:

Exterior Diameter: 140.6 mm

Interior Diameter: 127.8 mm

Interior Diameter Center Housing: 22.4 mm

Exterior Diameter Center Housing: 50 mm
