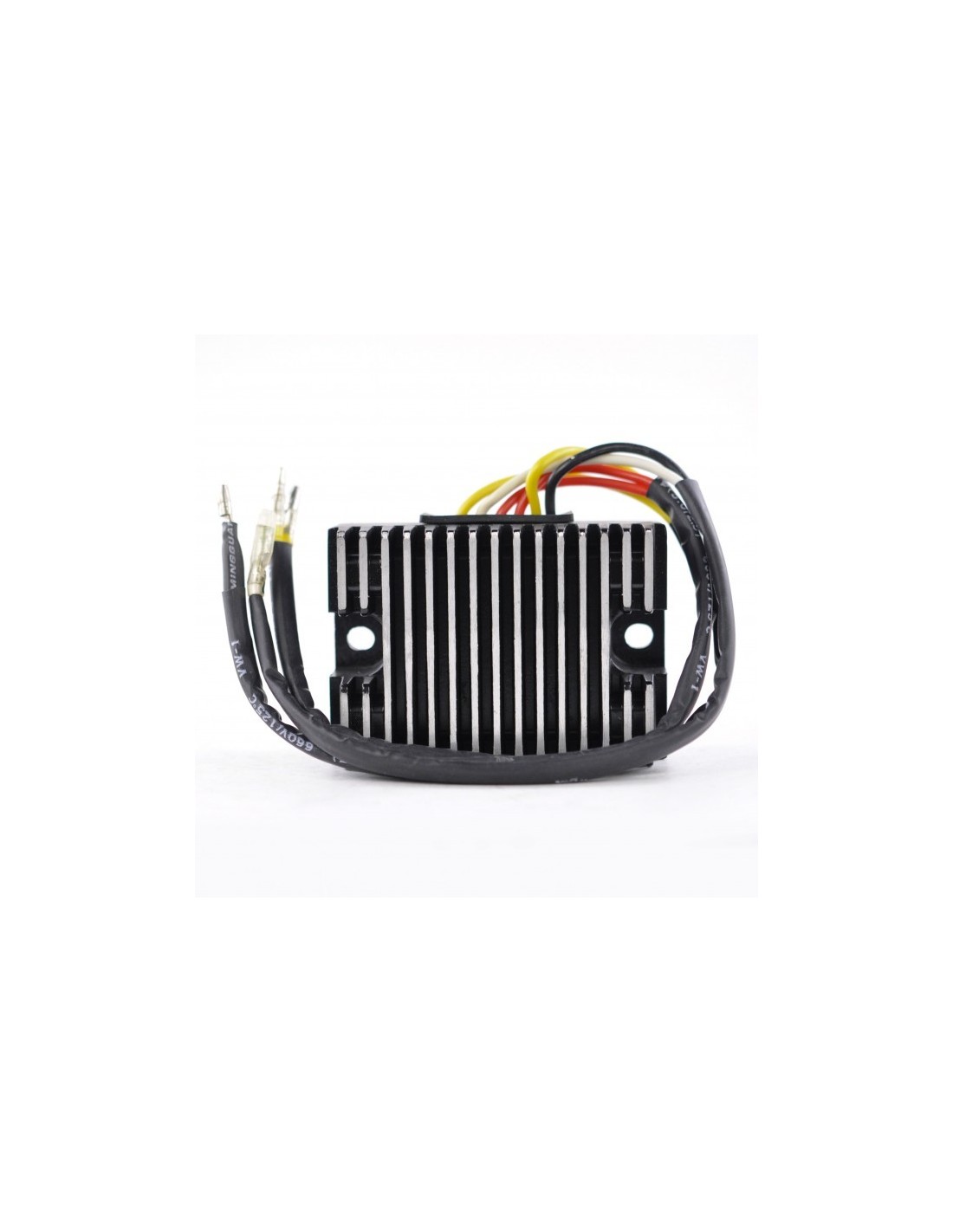

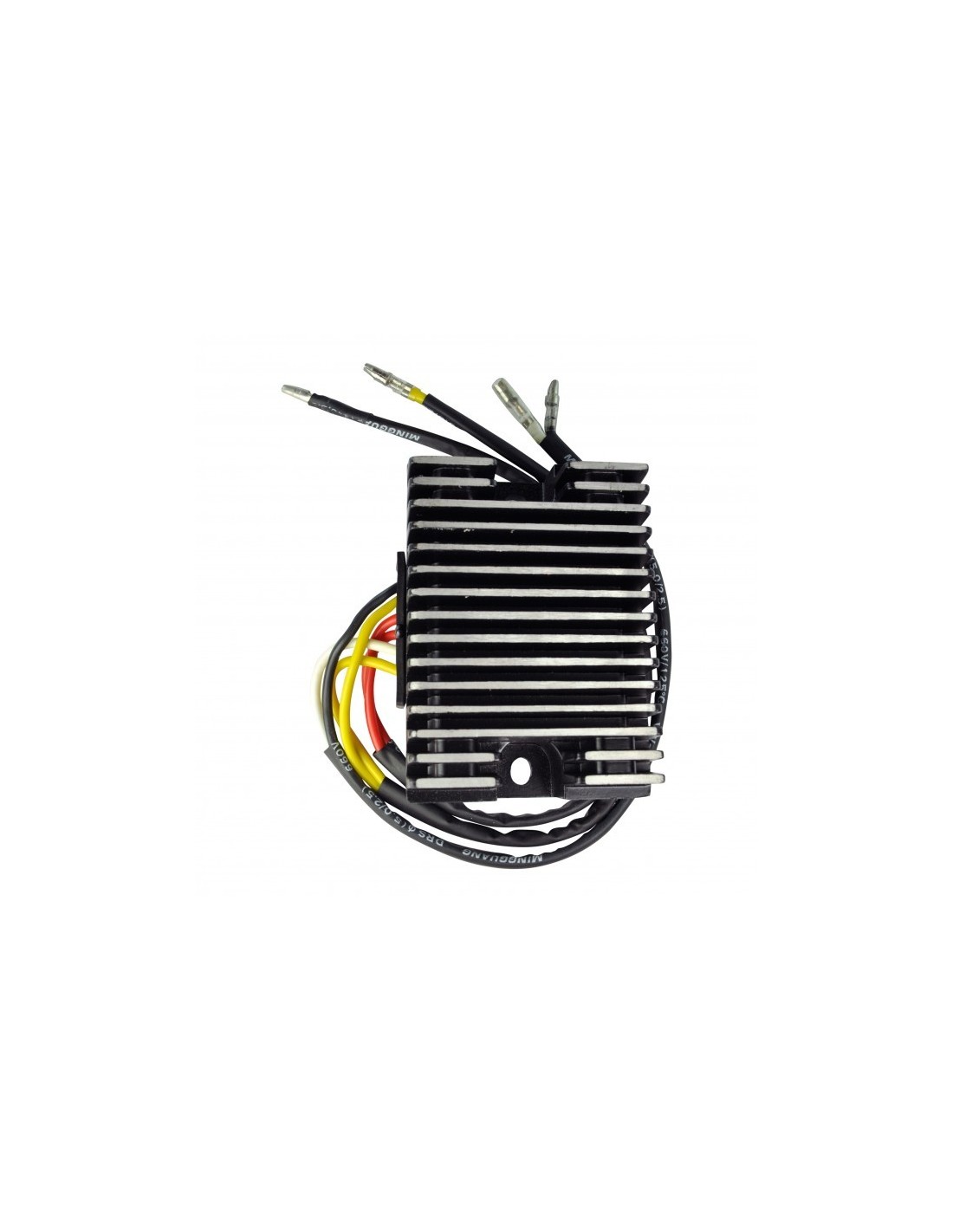

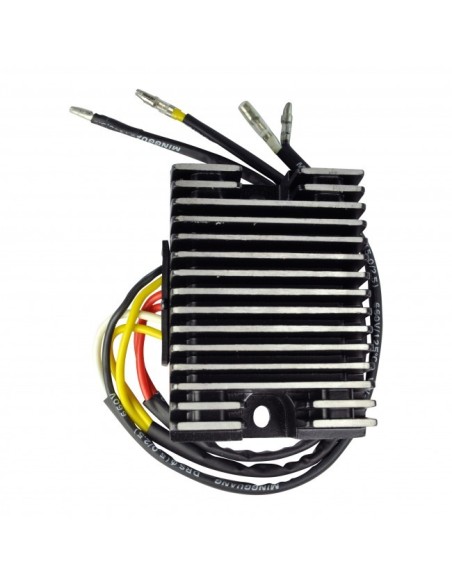

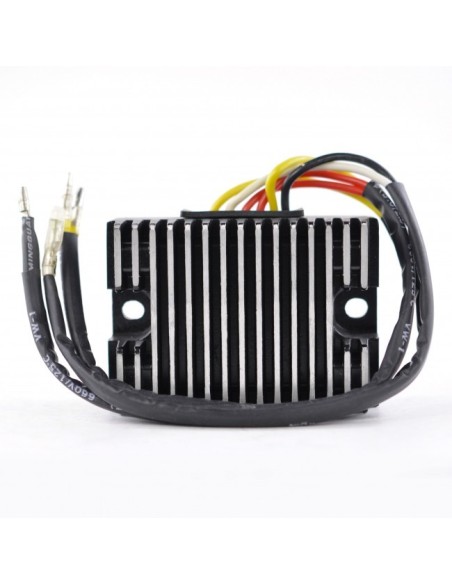

Régulateur Rectifieur Ducati 944 ST2 916 Monster 900 750 900 SS 750 851 Sport 750 906 907 Paso 750 F1 748

Régulateur Rectifieur

    1998
        Ducati
            944 ST2
                Motorcycle 1998 Ducati 944 ST2
            916
                Motorcycle 1998 Ducati 916
            748
                Motorcycle 1998 Ducati 748
    1997
        Ducati
            916
                Motorcycle 1997 Ducati 916
                Motorcycle 1997 Ducati 916 SB Biposto
            900 SS SuperSport
                Motorcycle 1997 Ducati 900 SS SuperSport
            748
                Motorcycle 1997 Ducati 748
            Monster 900
                Motorcycle 1997 Ducati Monster 900
            Monster 750
                Motorcycle 1997 Ducati Monster 750
    1996
        Ducati
            900 SS SuperSport
                Motorcycle 1996 Ducati 900 SS SuperSport
            Monster 900
                Motorcycle 1996 Ducati Monster 900
            916
                Motorcycle 1996 Ducati 916
    1995
        Ducati
            900 Elefant
                Motorcycle 1995 Ducati 900 Elefant
            900 SS SuperSport
                Motorcycle 1995 Ducati 900 SS SuperSport
            Monster 900
                Motorcycle 1995 Ducati Monster 900
            916
                Motorcycle 1995 Ducati 916
    1994
        Ducati
            Monster 900
                Motorcycle 1994 Ducati Monster 900
            900 SS SuperSport
                Motorcycle 1994 Ducati 900 SS SuperSport
            900 Elefant
                Motorcycle 1994 Ducati 900 Elefant
            888
                Motorcycle 1994 Ducati 888 Limited Edition
    1993
        Ducati
            750 SS Super Sport
                Motorcycle 1993 Ducati 750 SS Super Sport
            900 SS SuperSport
                Motorcycle 1993 Ducati 900 SS SuperSport
            900 Superlight
                Motorcycle 1993 Ducati 900 Superlight
            907 Paso I.E.
                Motorcycle 1993 Ducati 907 Paso I.E.
    1992
        Ducati
            750 SS Super Sport
                Motorcycle 1992 Ducati 750 SS Super Sport
            851 Sport
                Motorcycle 1992 Ducati 851 Sport
            900 SS SuperSport
                Motorcycle 1992 Ducati 900 SS SuperSport
            907 Paso I.E.
                Motorcycle 1992 Ducati 907 Paso I.E.
    1991
        Ducati
            851 Sport
                Motorcycle 1991 Ducati 851 Sport
            907 Paso I.E.
                Motorcycle 1991 Ducati 907 Paso I.E.
    1990
        Ducati
            750 Sport
                Motorcycle 1990 Ducati 750 Sport
            851 Sport
                Motorcycle 1990 Ducati 851 Sport
            906 Paso
                Motorcycle 1990 Ducati 906 Paso
    1988
        Ducati
            750 F-1
                Motorcycle 1988 Ducati 750 F-1
            750 Paso
                Motorcycle 1988 Ducati 750 Paso
                Motorcycle 1988 Ducati 750 Paso Limited Edition
    1987
        Ducati
            750 F-1B
                Motorcycle 1987 Ducati 750 F-1B
            750 Paso
                Motorcycle 1987 Ducati 750 Paso
    1986
        Ducati
            750 F-1B
                Motorcycle 1986 Ducati 750 F-1B
            748
                Motorcycle 1986 Ducati 748 Montjuich

Dimensions :

Largeur : 103 mm

Longueur : 68 mm

Hauteur : 37 mm

Longueur des fils : 280 mm

Distance entre les trous de fixation : 90 mm

Autres spécifications :

Nombre de connecteurs : 5

Nombre de terminaux : 6

Nombre de fils : 6

Tension de charge minimale : 14.5 V +/- 0.5 V

Courant de charge maximum : 50 A / 500 W

Tension de circuit ouvert : <15 V

Température d'opération : -20°C to 85°C

Veuillez noter : que ce régulateur est utilisé dans de multiple véhicules Ducati. La fonction de chaque fil est décrite ci-dessous :

Les fils jaunes : apports de courant alternatif au stator

Le fil rouge : courant positif de la batterie

Le fil noir : interrupteur clé de contact

Le fil blanc : avertissement de charge du tableau de bord

OEM 69920831B

69920821B

69920841A

54040081A

54040091A

54040131A

080546758

54010161A

54040011A

037038500
